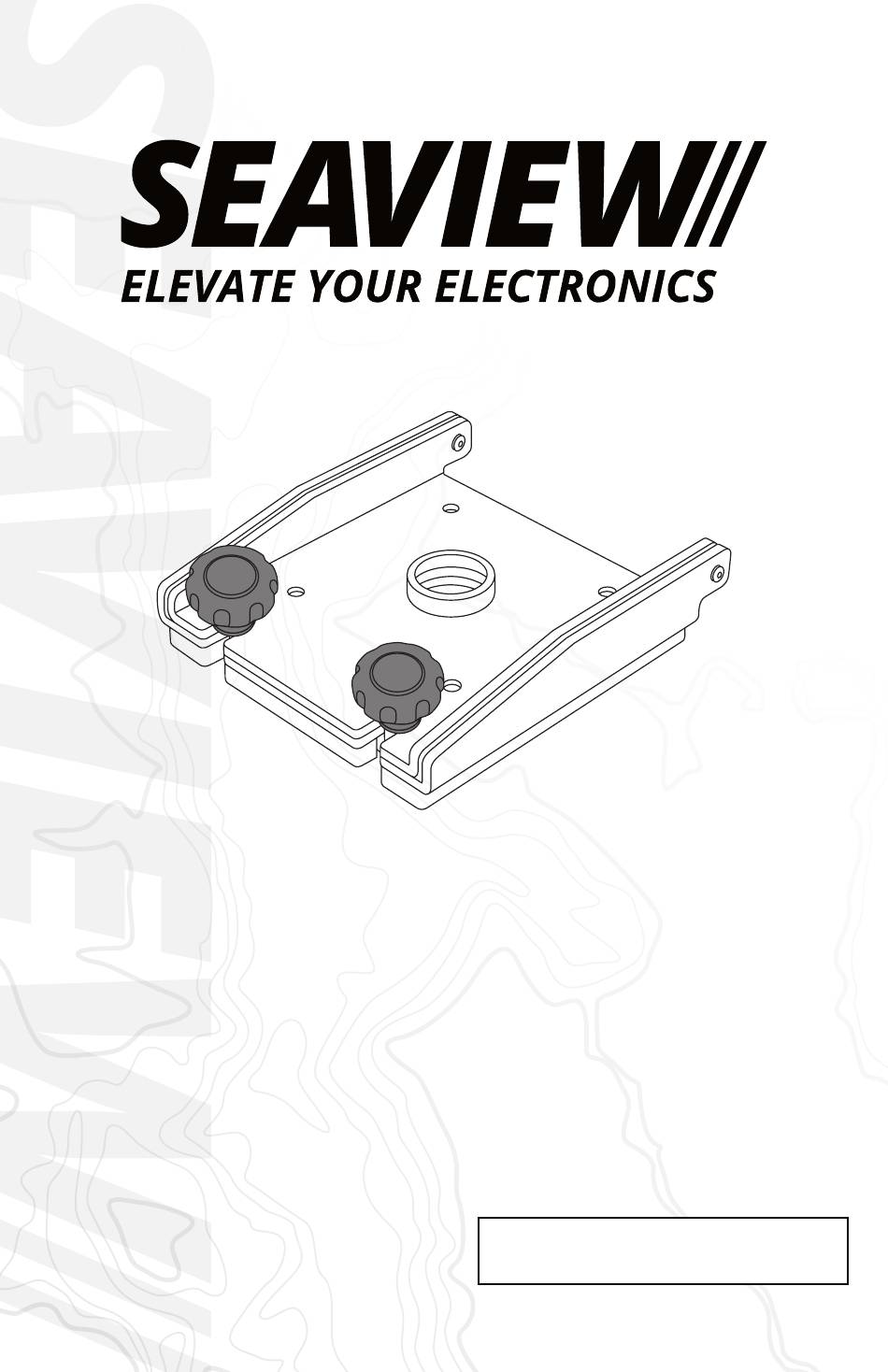

- Page 1 INSTALLATION INSTRUCTIONS For Seaview Modular Mount: PM-H7, PM-H8, PM-H10 Refer to website for most up to date instructions and videos. WWW.SEAVIEWGLOBAL.COM...
-
Page 2: Parts Included
PARTS INCLUDED CSWASHER TOOLS NEEDED Sudbury Elastomeric Marine Sealant is recommended. To purchase call 800-655-7922 or visit www.seaviewglobal.com... - Page 3 Place the hinge adapter onto the surface you are going to mount to. Be sure that the hinge adapter is placed near the edge of the surface to allow for adaquate room to hinge back or forward. Mark the four bolt holes to drill, along with the center cable hole.
- Page 4 Drill the four bolt holes using a 5/16" drill bit. Using a 2” hole saw, cut a hole for the cables. Place the hinge adapter onto the mounting surface. Make sure to lineup all the bolt holes.
- Page 5 Loosen knobs and fold over. Lift up the top hinge plate. Insert the four 5/16-18 x 1 1/4" Nylon counter sunk bolts through the underside of washer (CSWASHER) the top hinge adapter plate. Using your own mounting bolts, insert them through the bottom mounting plate into the mounting surface.
- Page 6 Apply some marine adhesive sealant to the four nylon shoulder washers. Then put them on the four bolts securing the Seaview mount to the hinge adapter. Thread on the four nuts to secure the Seaview mount. x4 x4...
- Page 7 Route the electronics cable through the hinge adapter and through the Seaview mount. Note: The Seaview mount depicted in the image to the right will differ depending on your particular Seaview mount model. Close the hinge adapter. Fold the knobs back...
- Page 8 EUROPEAN OFFICE Tel: 800-655-7922 Tel: +33 4 94 53 27 70 www.seaviewglobal.com www.seaviewprogress.com...
