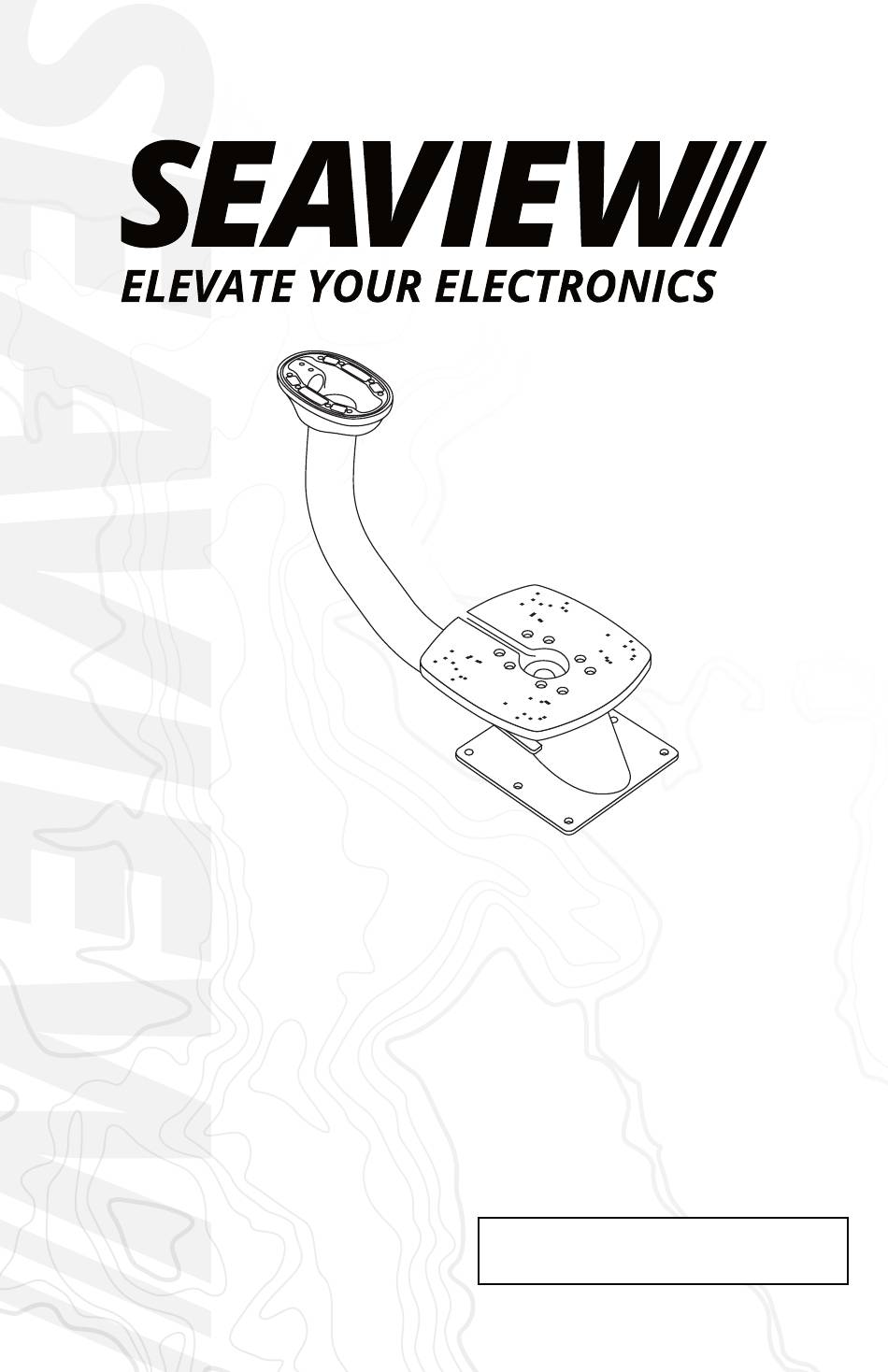

- Page 1 INSTALLATION INSTRUCTIONS For Seaview Modular Dual Mount: PMADM4M1 Refer to website for most up to date instructions and videos. WWW.SEAVIEWGLOBAL.COM...
-
Page 2: Parts Included
PARTS INCLUDED x1 x1 TOOLS NEEDED Sudbury Elastomeric Marine Sealant is recommended. To purchase call 800-655-7922 or visit www.seaviewglobal.com... - Page 3 AD A- R1 Drill Template CLOSED DOME RADARS Manufacturer Model 11 B&G BR24, 3G, 4G 12 Furuno 15” - 24” radar domes 11 Garmin 18” - 24” and Fantom radar domes Geonav 24” radar domes 15” radar domes 18” (MDC 900 Series) radar domes RB714A Koden 15”...
- Page 4 Light Bar you do NOT use the pin. If you are not using a Seaview Light Bar then insert the pin as shown below. Insert the white Light Bar Plug and o-ring into the Light Bar hole in the back of the mount. Make sure it clips onto the pin.
- Page 5 Place the PMADM4M1 onto the mounting surface. Mark the six base holes for drilling. Remove the mount and rill the six bolt holes using a 3/8” drill bit.
- Page 6 Using a hole saw, drill a hole for the cables. Place the ADA-R1 Drill Template on top of the Top Plate. Then mark the four holes for your specific closed AD A- R1 Drill Template dome radar. Refer to page 2 of this instruction booklet to determine which holes to drill.
- Page 7 Top Plates. Then insert through the black rubber grommet. When inserting the black rubber grommet into the Tope Plates be sure that the center lip falls into the groove in the grommet. Apply marine adhesive sealant to the PMADM4M1 as shown.
- Page 8 Place the radar Top Plate onto the PMADM4M1 making sure that the eight bolt holes line up. Secure the radar Top Plate to the PMADM4M1 with the eight bolts. Apply marine adhesive sealant to the bottom of the mount.
- Page 9 Route the cables through the mount. Place the connector of the cable into a plastic bag. Apply Vasoline to the exterior of the plastic bag. Then try routing the connector/ cable through the black rubber grommet. Lower the mount onto the mounting platform.
- Page 10 Use the provided backing plate. Apply marine adhesive sealant to all bolt holes. Then secure with your own hardware. Mount and secure all electronics with your own mounting hardware.
-
Page 11: Optional Accessories
Attwood LED Light Bar Top Light Bar Top Light. Light. with Perko with Attwood Incandescent LED Light, can fit Light, can fit GPS. GPS. SPREADER KIT SP2-MOD Allows user to mount GPS units or antennas on to a Seaview Modular Mount. -
Page 12: Cable Glands
OPTIONAL ACCESSORIES Call 800-655-7922 or visit www.seaviewglobal.com for available accessories. CABLE GLANDS Seaview Cable Glands provide waterproof cable routing. - Page 13 This page is intentionally left blank.
- Page 14 EUROPEAN OFFICE Tel: 800-655-7922 Tel: +33 4 94 53 27 70 www.seaviewglobal.com www.seaviewprogress.com...
