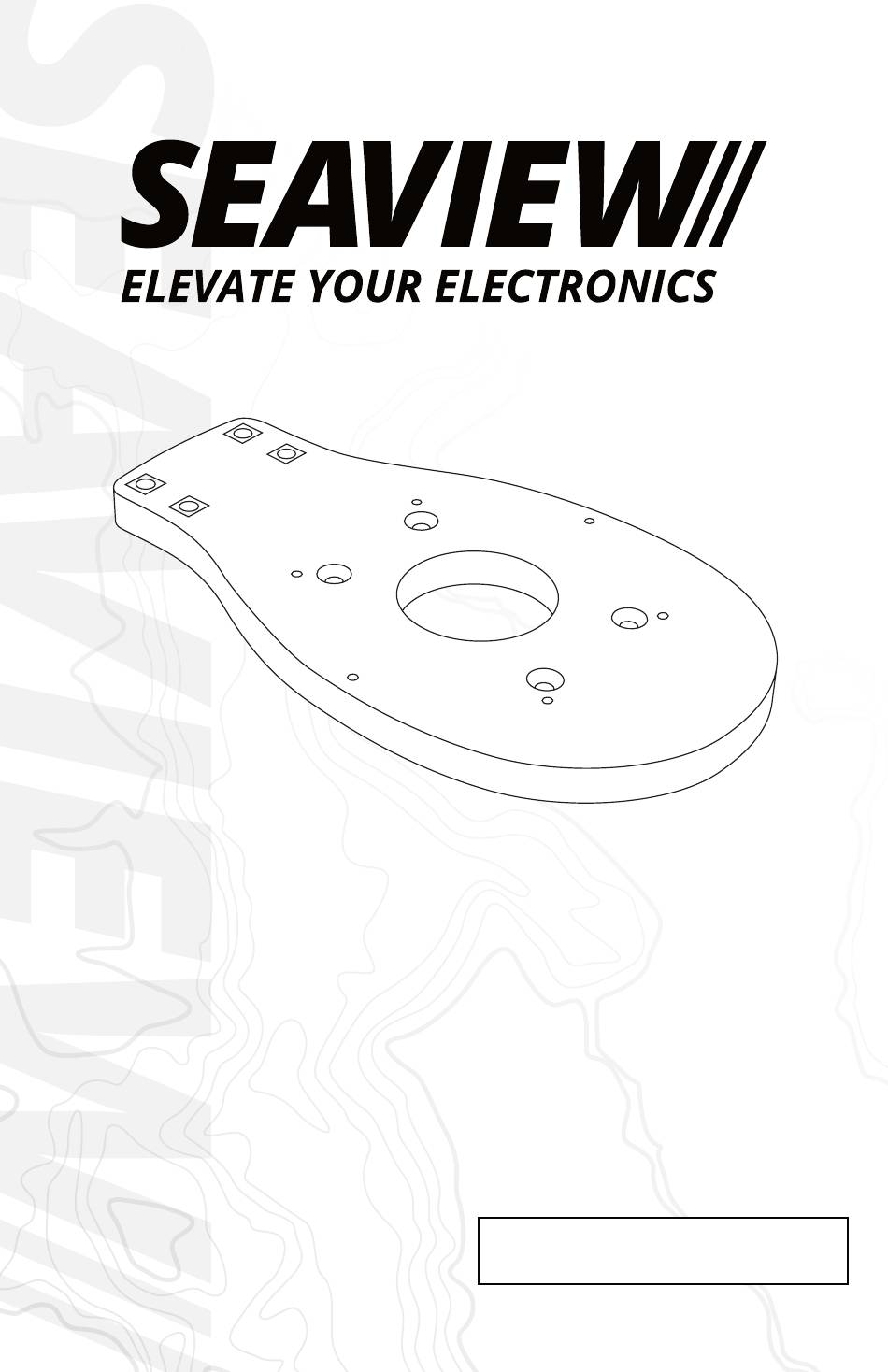

- Page 1 INSTALLATION INSTRUCTIONS For Seaview Modular Top Plate: ADA-F2 Refer to website for most up to date instructions and videos. WWW.SEAVIEWGLOBAL.COM...
-
Page 2: Parts Included
PARTS INCLUDED TOOLS NEEDED... - Page 3 Insert rubber gasket onto the top of the Seaview mount. (Rubber gasket included with Seaview Mount.) Place the ADA-F2 ontop of the mount. Secure the ADA-F2 with the four bolts using an allen 3/16” wrench.
- Page 4 M200 to the adapter with the hardware specified by your electronics manufacturer. Place the FLIR camera ontop of the ADA-F2 top plate. Make sure that the six holes on the adapter line up with the six holes on the top plate.
- Page 5 Secure the adapter to the ADA-F2 top plate using the provided six #12 x 1” screws with a philips head screwdriver. The four holes on the back of the ADA-F2 are for securing the optional Seaview Light Bar to the top plate.
- Page 6 This page is intentionally left blank.
- Page 7 This page is intentionally left blank.
- Page 8 EUROPEAN OFFICE Tel: 800-655-7922 Tel: +33 4 94 53 27 70 www.seaviewglobal.com www.seaviewprogress.com...
