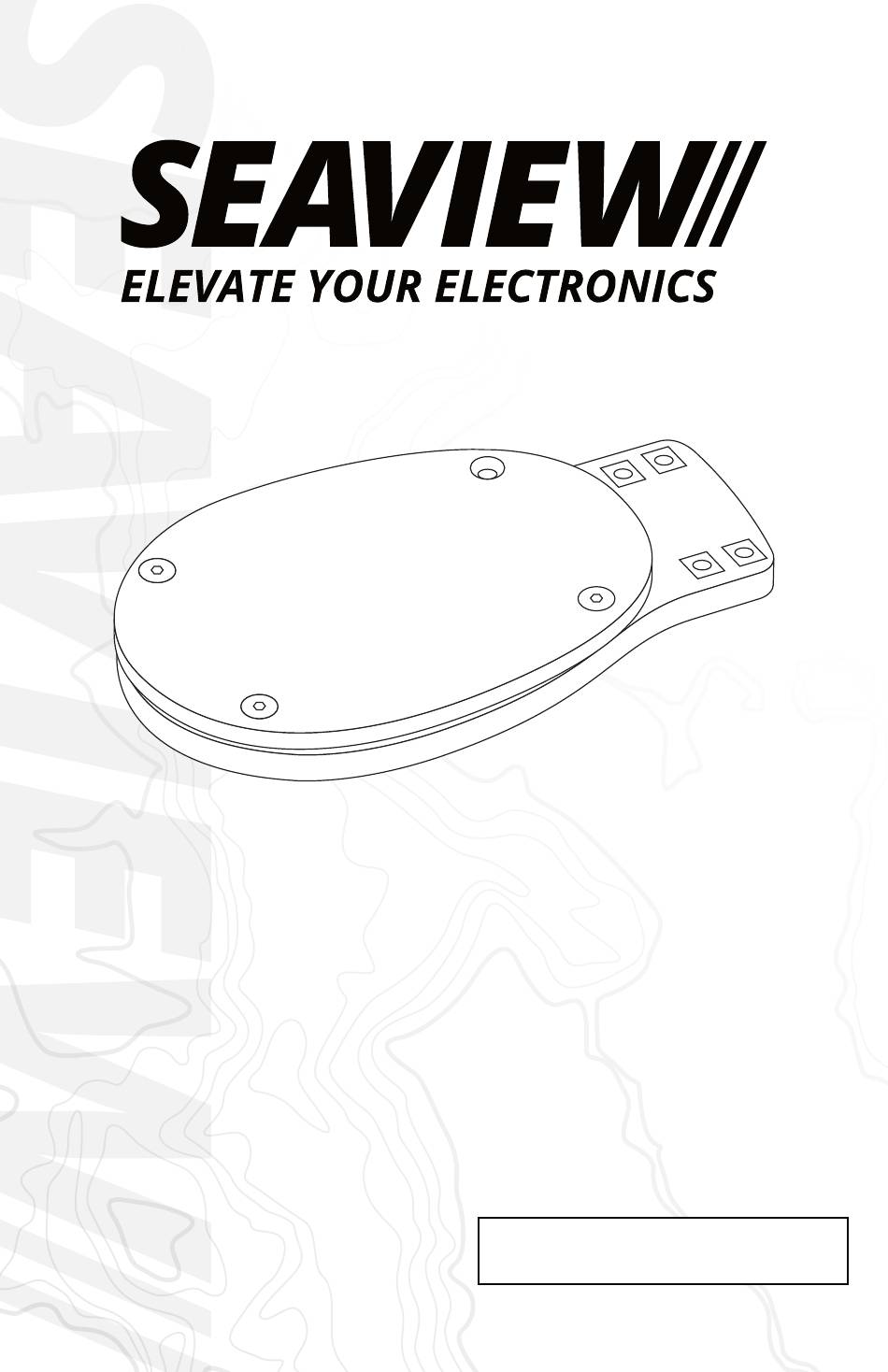

- Page 1 INSTALLATION INSTRUCTIONS For Seaview Modular Top Plate: ADA-BLANK Refer to website for most up to date instructions and videos. WWW.SEAVIEWGLOBAL.COM...
- Page 2 PARTS INCLUDED x1 AD-AFN-M2BLANK x1 AD-AFN-M1P TOOLS NEEDED Sudbury Elastomeric Marine Sealant is recommended. To purchase call 800-655-7922 or visit www.seaviewglobal.com...
- Page 3 Place the rubber gasket into the grove on the top of the Seaview mount. Note, that the rubber gasket is included in the Seaview mount kit. Place the AD-AFN-M1P ontop of the mount, be sure to line up the four mounting holes.
- Page 4 Bolt the AD-AFN-M1P down with four 5⁄16” - 1-1⁄4” bolts using a allen wrench. Carefully drill and mount your search light to the AD-AFN-M2BLANK plate. Secure the search light using the hardware provided by the manufacturer. Apply marine adhesive sealant to the groove on the underside of the ADA-FN-M2BLANK plate.
- Page 5 Bolt the ADA-FN-M2BLANK plate down with four 5⁄16” - 11⁄4” bolts using a allen wrench. The four holes on the back of the ADA-F2 are for securing the optional Seaview Light Bar to the top plate.
- Page 6 This page is intentionally left blank.
- Page 7 This page is intentionally left blank.
- Page 8 EUROPEAN OFFICE Tel: 800-655-7922 Tel: +33 4 94 53 27 70 www.seaviewglobal.com www.seaviewprogress.com...
