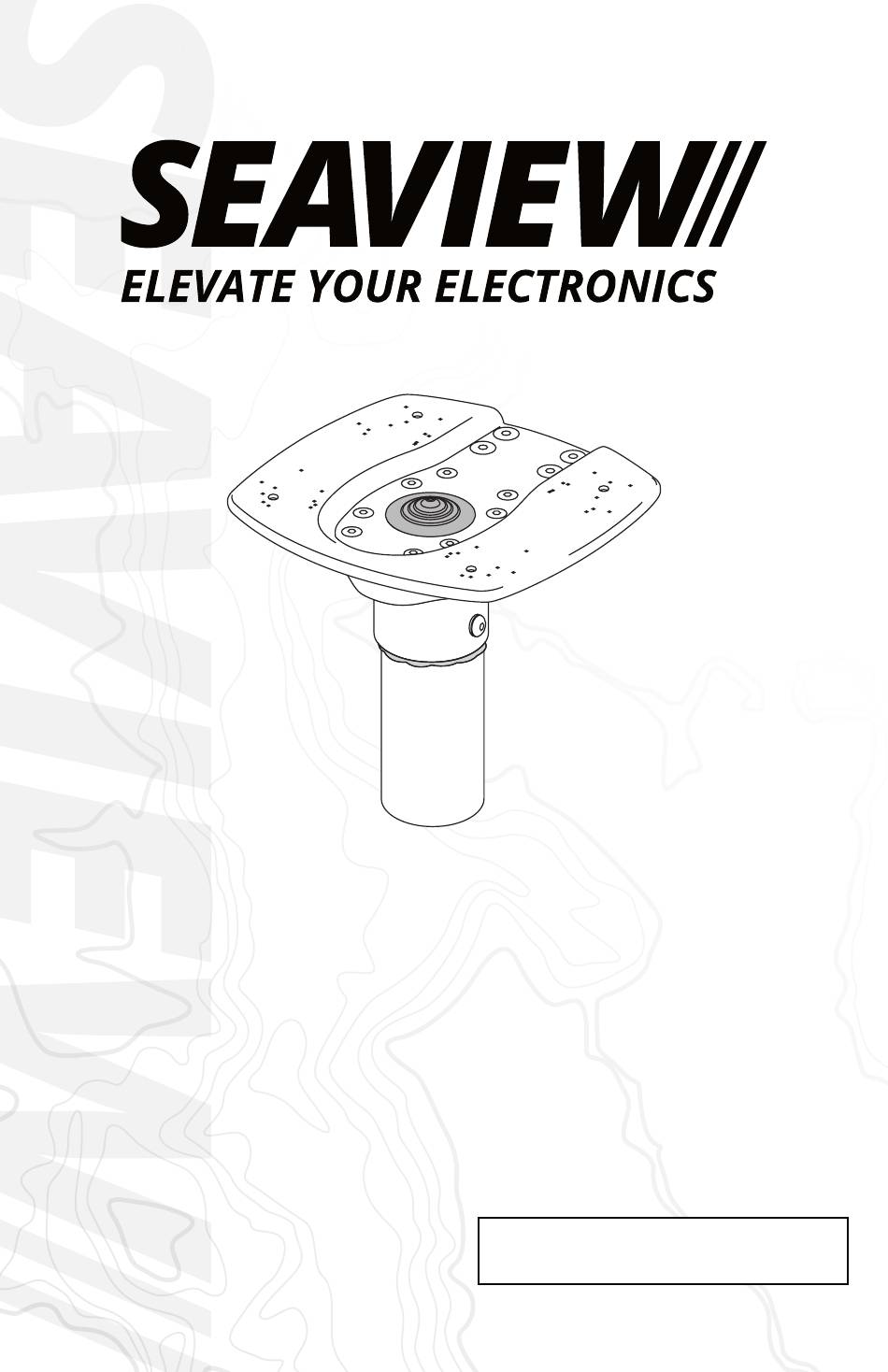

- Page 1 INSTALLATION INSTRUCTIONS For Seaview Modular Pole Top: MODTOPPTM1 Refer to website for most up to date instructions and videos. WWW.SEAVIEWGLOBAL.COM...
-
Page 2: Parts Included
PARTS INCLUDED x1 x1 TOOLS NEEDED Sudbury Elastomeric Marine Sealant is recommended. To purchase call 800-655-7922 or visit www.seaviewglobal.com Before beginning please make sure that the Seaview Top Plate will face forward. - Page 3 If you are not using a light bar then insert the plastic plug into the back of the modular top. Make sure that the plug snaps in place from the light bar pin. If you are using a light bar, do not use the black light bar pin.
- Page 4 Inside pole top. Place the rubber gasket into the groove on the top of the modular top and then place the Seaview Top Plate ontop. Make sure that the eight bolt holes line up with the eight bolt holes on the...
- Page 5 Insert the rubber cable grommet into the top of the Seaview Top Plate. Secure the Seaview Top Plate to the modular top using the eight bolts included in your Seaview Top Plate kit. Apply marine adhesive sealant around the base of...
- Page 6 THIS PAGE IS INTENTIONALLY LEFT PLANK.
- Page 7 THIS PAGE IS INTENTIONALLY LEFT PLANK.
- Page 8 EUROPEAN OFFICE Tel: 800-655-7922 Tel: +33 4 94 53 27 70 www.seaviewglobal.com www.seaviewprogress.com...
