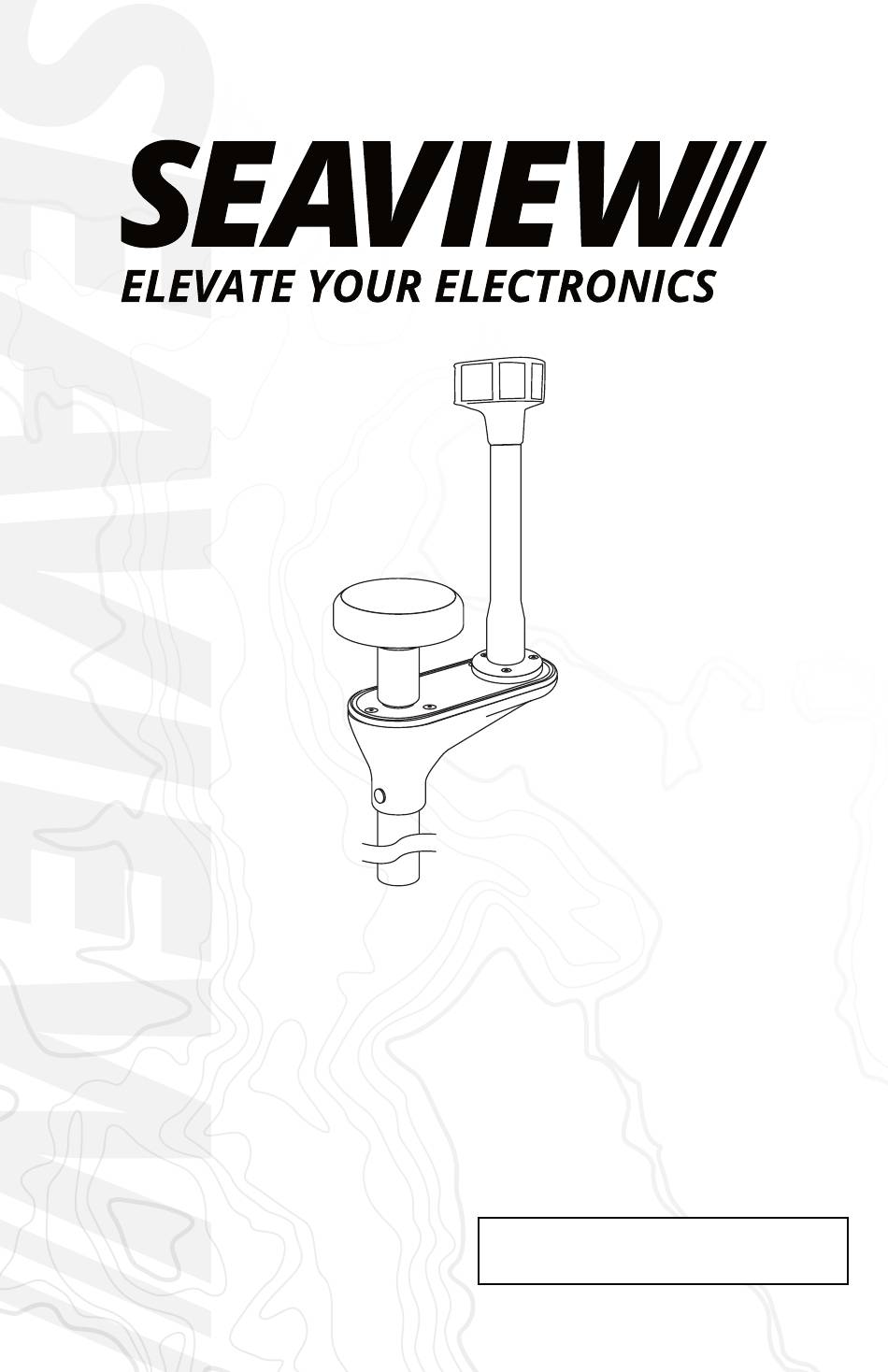

- Page 1 INSTALLATION INSTRUCTIONS For Seaview Light Bar Top: LTBU1A7800 Refer to website for most up to date instructions and videos. WWW.SEAVIEWGLOBAL.COM...
-
Page 2: Parts Included
PARTS INCLUDED TOOLS NEEDED Sudbury Elastomeric Marine Sealant is recommended. To purchase call 800-655-7922 or visit www.seaviewglobal.com... - Page 3 Drill a hole to run cables for the light. This may have already been done for you. Apply marine adhesive sealant around the top of the Light bar as shown, then slide on to the Light Bar. Apply marine adhesive sealant to the mounting holes.
- Page 4 Apply marine adhesive sealant into the groove of as shown. Apply marine adhesive sealant around the three holes for the light and the three holes for the GPS. Then route all cabling through and secure the electronics.
-
Page 5: Optional Accessories
WEDGES SP1-MOD Compensates for plane angle. Allows user to mount GPS units or Available in 2, 4 or 6 degree wedges. antennas onto a Seaview Modular Mount. HINGES Seaview Hinge Adapters fold in any direction necessary for added height clearance. - Page 8 EUROPEAN OFFICE Tel: 800-655-7922 Tel: +33 4 94 53 27 70 www.seaviewglobal.com www.seaviewprogress.com...
