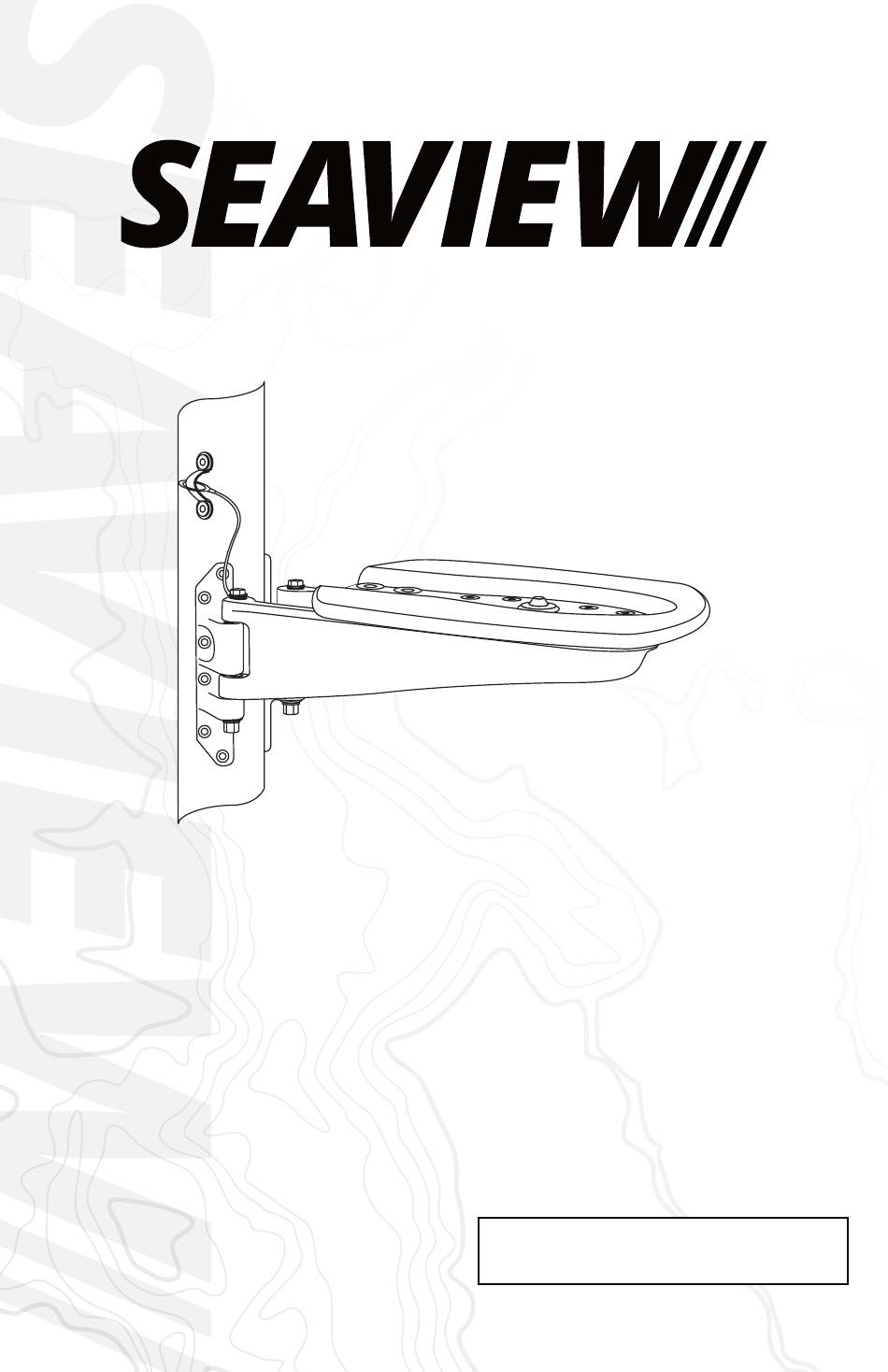

- Page 1 INSTALLATION INSTRUCTIONS For Seaview Mast Mount: SM-14-A, SM-15-A, SM-18-U, SM-18-A, SM-24-R, SM-24-U Refer to website for most up to date instructions and videos. WWW.SEAVIEWGLOBAL.COM...
-
Page 2: Parts Included
PARTS INCLUDED IN ONE OF THE KITS BELOW SM-18-A SM-15-A SM-18-U SM-14-A SM-24-R, SM-24-U... -
Page 3: Tools Needed
PARTS INCLUDED (For SM-14-A, SM-15-A and SM-18-U) TOOLS NEEDED Sudbury Elastomeric Marine Sealant is recommended. To purchase call 800-655-7922 or visit www.seaviewglobal.com... - Page 4 If you do not need the ISOMAT Adapter follow these instructions. SM-AD-ISO If you do need the ISOMAT Adapter please call Seaview at 800- 655-7922. If you already have the Seaview ISOMAT Adpater please follow the ISOMAT Adapter instructions. Place the Mast Mount onto the mast and mark all the holes of each mounting feet.
- Page 5 The Seaview Mast Mount has two different mounting feet depending on the model. Please note which one you have. SM-14-A / SM-15-A / SM-18-A / SM-24-U / SM-18-U SM-24-R SM-14-A, SM-15-A, SM-18-U Only: Use a 3/16” drill bit, drill all the marked holes.
- Page 6 Punch a hole through the rubber grommet using a sharp dowel. Insert the rubber grommet into the hole you drilled for the cables. Put some marine adhesive sealant into the holes. Do not apply too much sealant.
- Page 7 Insert the black nylon shoulder washers into the correct holes on the mast mount feet. Use the supplied rivets to secure the mast mount to the mast. SM-14-A / SM-15-A SM-18-U Mark two holes to fasten the anchor. Drill the two holes.
- Page 8 Apply marine adhesive sealant to the two holes. Secure the anchor to the mast using two rivets. Make sure the lanyard is on the anchor prior to securing rivets.
- Page 9 Refer to your Seaview Modular Top Plate instructions to install. ADA-S1SR ADA-S2 ADA-R1 ADA-S2 ADA-R1 ADA-S1SR Mount the Seaview Modular Top Plate to the Mast Mount. SM-15-A SM-18-A SM-18-U SM-24-R / SM-24-U...
- Page 10 15..Note: Hardware is not provided for the electronics. SM-14-A SM-15-A, SM-18-U, SM14-A Mast Mount foot assembly. Stainless steel washer Long Nylon shoulder washer Long nylon shoulder washer Long nylon shoulder washer...
- Page 11 SM-18-A, SM-24-R, SM-24-U Mast Mount foot assembly. Stainless steel washer Nylon shoulder washer Long Nylon shoulder washer...
-
Page 12: Optional Accessories
ADAPTER SM-AD-ISO SM-AD-FB For masts with an integral track at Adjustable flybridge adapter kit with the front which makes it difficult 35° of adjustment. to fit a Seaview mast mount. Made from marine grade aluminum and powder coated brilliant white. - Page 13 THIS PAGE INTENTIONALLY LEFT BLANK.
- Page 14 THIS PAGE INTENTIONALLY LEFT BLANK.
- Page 15 THIS PAGE INTENTIONALLY LEFT BLANK.
- Page 16 EUROPEAN OFFICE Tel: 800-655-7922 Tel: +33 4 94 53 27 70 www.seaviewglobal.com www.seaviewprogress.com...
