Circuit Protectors
The AC receptacles are protected by an AC
circuit protector. If the generator is overloaded
or an external short circuit occurs, the circuit
protector will trip. If this occurs, disconnect all
electrical loads to determine the cause of the
problem before using the generator again.
Reduce the load if the circuit protector is
tripped.
NOTE: Continuous tripping of the circuit pro-
tector may cause damage to generator or
equipment.
Push the button of the protector to reset the
circuit protector.
Remove Contents from Carton
1. Open carton completely by cutting each
corner from top to bottom.
2. Remove and verify carton contents prior to
assembly. Carton contents should contain
the following:
Accessories
Item
Main Unit
Owner's Manual
Engine Oil
Oil Funnel
Tool Kit
LP Hose
Service Warranty
Emissions Warranty
3. Call Generac Customer Service at 1-888-
GENERAC (1-888-436-3722) with the unit
model and serial number for any missing
carton contents.
4. Record model, serial number, and date of
purchase on front cover of this manual.
Battery Cable Connection
Equipment damage. Do not make battery
connections in reverse. Doing so will result
in equipment damage.
The unit has been shipped with the battery
cables disconnected.
See
Figure 2-9.
1. Use a Phillips screwdriver to remove the
screw from the battery door.
2. Remove battery strap (1) from battery (2).
Owner's Manual for Portable Generator
CAUTION
(000167a)

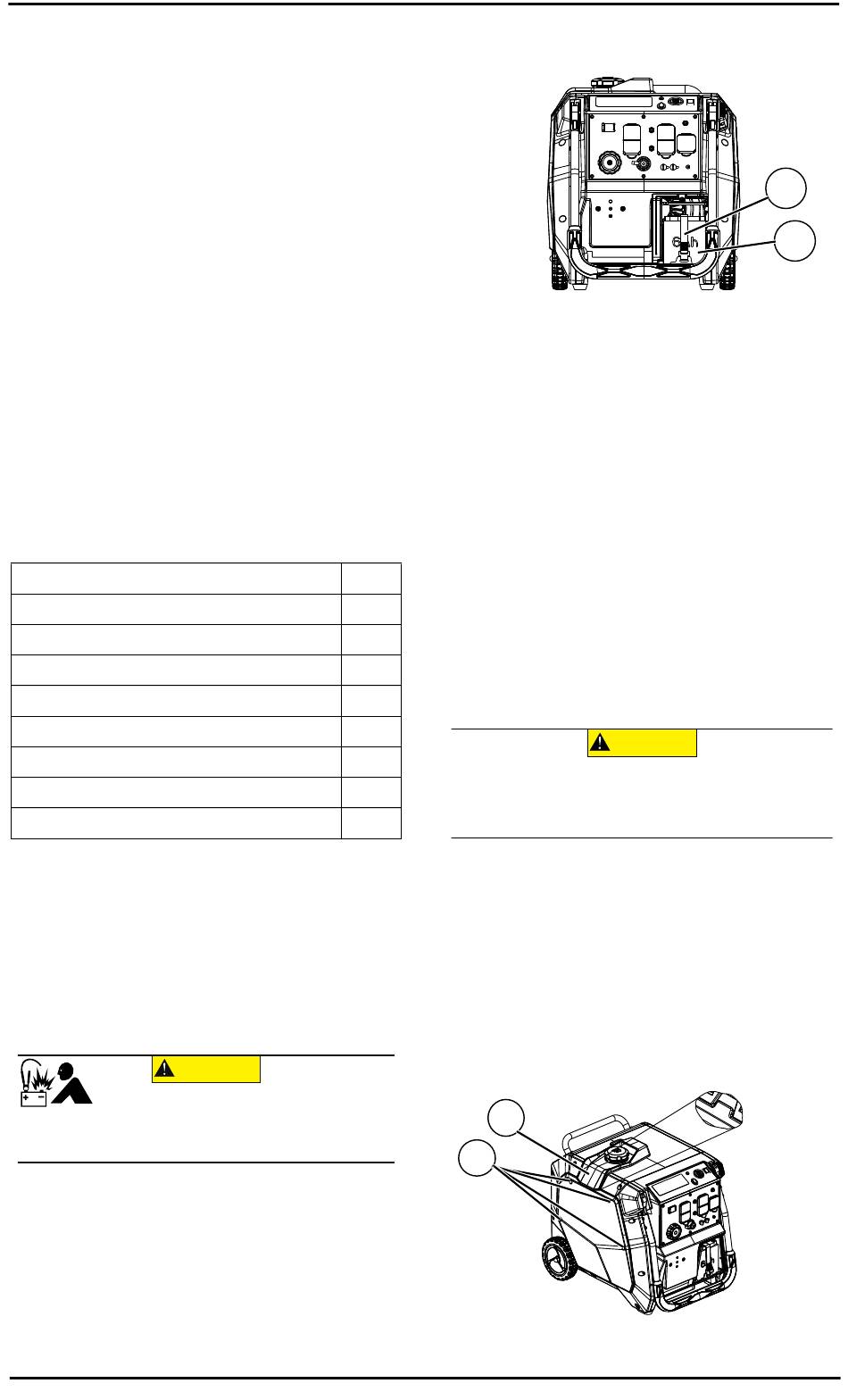

Figure 2-9. Battery Connection
3. First, connect the red cables to the positive
(+) battery terminal with the bolt and nut
supplied.
4. Make sure connections are secure and
slide rubber boot over the positive (+) bat-
tery terminal and connection hardware.
5. Connect the black cables to the negative
(-) battery terminal with the bolt and nut
supplied. Slide rubber boot over the neg-
ative (-) battery terminal and connection
hardware.
6. Make sure all connections are secure.
Qty.
NOTE: If the battery is unable to start the
1
engine, charge it with an appropriate 12V
charger or manually start the generator and let
1
run until charged.
1
Add Engine Oil
1
1
1
Engine damage. Verify proper type and quantity of
1
engine oil prior to starting engine. Failure to do so
could result in engine damage.
1
NOTE: The generator is shipped without oil in
the engine. Add oil slowly and verify oil level
often during filling process to ensure overfilling
does not occur.
1. Place generator on a level surface.
2. See
screwdriver, loosen the four screws of the
service door (A).
3. Lift bottom of rubber fuel diverter (B) to
expose door tab and remove door.
B
A
CAUTION
2-10. Using a Philips Head
Figure
Figure 2-10.Access Door
1
2
019918
(000135)
019919
