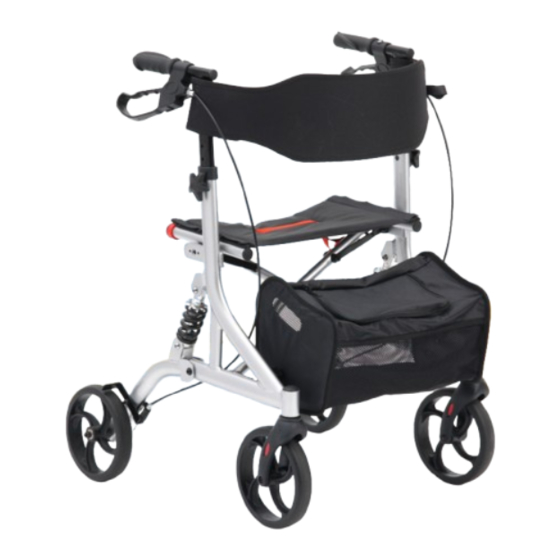

- Page 1 Suspension Rollator Instruction Manual...
-
Page 2: Specifications
A walking device manipulated by both arms to assist a person to maintain stability and balance whilst walking. Environment of use The WA023SIL rollator is suitable for both indoor and outdoor use. Intended users Any individual who has difficulty in walking and/or has reduced mobility. -
Page 3: Important Safety Information
Important Safety Information Please read all of these instructions fully before assembly or use. • Ensure the rollator is used only as a walking aid, to assist with mobility. • The rollator must not be used as a transportation device. •... -
Page 4: Parts Description
Parts Description Handlebar Handgrip Backrest Brake Lever Tightening Seat Handle Suspension Rear Wheels (with brakes) Front Castor Wheels... -
Page 5: Assembling The Rollator
Assembling the Rollator Step 1 Remove packaging Remove the rollator and all components from the packaging. Lay out the rollator. Step 2 Unfolding the rollator To unfold the rollator, press down on both sides of the seat frame (shown by the red arrows) Step 3 Fitting the handlebars Insert the handlebars into the... - Page 6 Assembling the Rollator Step 4 Fitting the bag Attach the bag to the frame by sliding the bag onto the brackets located on the inside of the frame, by the front wheels. Note: Fold the rollator slightly to make it easier to fit the bag onto the frame.
-
Page 7: Adjusting Handlebar Height
Adjusting Handlebar Height To adjust the height of the handlebars, remove the tightening handle by turning it anticlockwise and then remove the screw. Position the handlebar at the required height and re-insert the screw through the holes, from the inside of the frame. Attach the tightening handle to the screw and turn clockwise to secure the handlebar. -
Page 8: Brake Operation
Brake Operation To operate the brakes: Squeeze the brake levers up and hold in position to engage the brakes (as shown by the red upwards arrow). Release the levers to release the brakes. To lock the brakes: Push down on the brake levers until they lock and stay in the down position (as shown by the red downwards arrow). -
Page 9: Folding And Transporting
Folding and Transporting Note: Before folding the rollator, ensure that all items have been removed from the bag. To fold the rollator: Pull up on the red handle, located in the centre of the seat, so that the sides of the rollator come together. The rollator can be held in the folded position by hooking the red safety clasp over the bar on the... -
Page 10: Care And Maintenance
Cleaning Ensure the rollator is kept clean on a regular basis. • Wipe down the rollator with a damp cloth. Extra care should be taken around areas where excess dirt or dust may gather. • The cloth should be changed during the cleaning process if it becomes soiled. •... -
Page 11: Warranty
Warranty To improve the safety and lifespan of your rollator, it is recommended that you have it serviced on a regular basis. Recommended Service Schedules for rollators are available to service agents. There is a comprehensive twelve-month warranty from the date on which your new rollator is delivered. -
Page 12: Symbol Definitions
Drive DeVilbiss Healthcare Ltd. reserves the right to alter without notice any weights, measurements, or other technical data shown in this manual. All figures, measurements and capacities shown in this manual are approximate and do not constitute specifications. Dealer Stamp Drive DeVilbiss Healthcare Ltd is an ISO 9001 certified company.
