Summary of Contents for Drive DeVilbiss Healthcare X-Fold

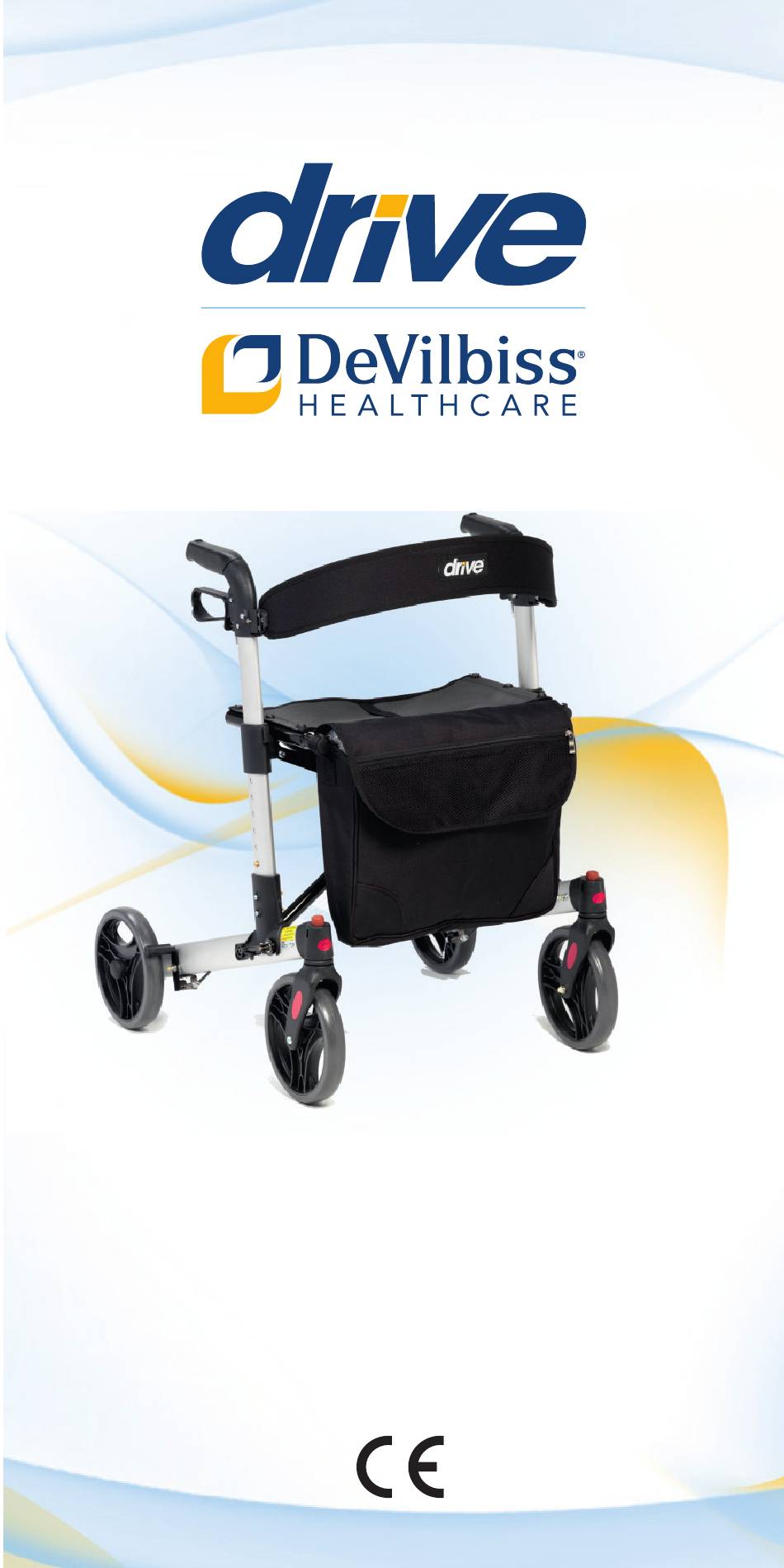

- Page 1 X-Fold Rollator Instruction Manual Please read these instructions carefully before assembling or using this product.
-
Page 2: Product Description
Intended User Group The intended user of the X-Fold Rollator is any person who has difficulty in walking and / or who has reduced mobility. Intended Purpose A walking device manipulated with both arms to assist a person to maintain stability and balance whilst walking. -
Page 3: Symbol Definition
If in doubt, contact Drive DeVilbiss Healthcare Ltd. using the contact details on the back page. If use of this device results in a serious incident, reports should be forwarded to the manufacturer and local competent authority. -
Page 4: General Warnings
• Ensure that good health and safety practice is used for lifting and carrying the rollator. • Replace the tyres when significantly worn or damaged. Contact Drive DeVilbiss Healthcare Ltd for approved replacement parts. -
Page 5: Parts Description
parts description Brake Lever Back Rest Resting Seat Height Adj Button Carry Bag Front Castor Rear Wheel Brake Adj Mechanism setup Install the back rest by sliding over the bracket. Use a screwdriver to tighten the screw. Install the top section of the rollator by pulling upwards on the back rest until fully unfolded. - Page 6 Lock the top section upright by flipping over the camlock levers. Camlock lever Secure the camlock levers by pushing the levers in to the slots shown. Push down on the cross brace rails until the rails lock into the plastic slots. To attach the carry bag, hook the bag loops on both ends of...
- Page 7 X-Fold Once the frame has been unfolded and the cross brace is secure, the X-Fold is ready for use. Steer the rollator by holding both handles. Do not use a damaged or badly worn rollator (see care and maintenance).
- Page 8 Brake Operation To use the parking brakes, push both brake levers down (see “A”) until the brakes are locked. To release the brakes, pull both levers up and release. To use the brakes to slow the rollator down, pull up on both brake levers (see “B”).
-
Page 9: Storage And Transport
Take care not to trap body parts in gaps around the rollator while folding. The X-Fold can be folded to save space for storage and transport. Make sure not to store the rollator in damp conditions for an extended period. -
Page 10: Cleaning And Disinfection
cleaning and disinfection The use of neat bleach, abrasive products or similar surface cleaners is not recommended, as damage may be caused to the cleaned surfaces. PPE must be worn during cleaning and disinfection to prevent the risk of infection. Care should be taken not to leave any cleaning residues on the handgrips or seat which may leave them slippery when used. -
Page 11: Care And Maintenance
When unpacked for the first time, the cardboard boxes used for the packaging can be recycled at recycling centres. The X-Fold Rollator consists of aluminium, steel and plastic components. Individual parts can be separated and disposed according to the material. -
Page 12: Warranty Details
This warranty is issued free of charge by the manufacturer to the original retail purchaser of the device. This does not affect your statutory rights. Drive DeVilbiss Healthcare Ltd, Holmfield, Halifax, West Yorkshire, HX2 9TN, GB Issued 2020–10...
