Summary of Contents for Drive DeVilbiss Healthcare BTR22BLK

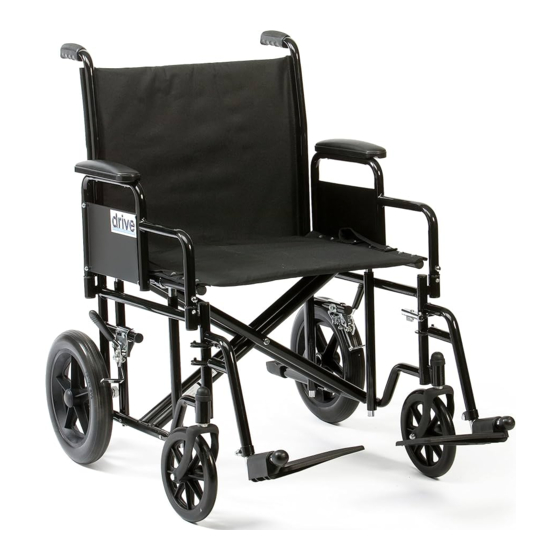

- Page 1 Bariatric Steel Transport Chair (BTR22BLK) Instructions for use...
- Page 2 The wheelchair is available as a transit model, where an attendant is required to propel it. The wheelchair can be manually propelled forwards and backwards. BTR22BLK Wheelchair (2021-12 Rev1) Page 2 of 12...
-
Page 3: Parts Description
Parts description PUSH BACKREST ARM REST HANDLE SIDE PANEL PARKING BRAKE REAR TRANSIT WHEEL STEPPER TUBE FOOT REST FRONT CASTOR BTR22BLK Wheelchair (2021-12 Rev1) Page 3 of 12... - Page 4 The brakes should always be applied when the wheelchair is stationary. Operating Note: The brake on your wheelchair model parking may be visually di erent from that shown. brakes BTR22BLK Wheelchair (2021-12 Rev1) Page 4 of 12...
- Page 5 To remove the armrest, press the chrome button at the front of the armrest (arrowed) and pull up on the armrest. To replace the armrest, push the armrest back into the receivers and it will automatically lock. BTR22BLK Wheelchair (2021-12 Rev1) Page 5 of 12...
- Page 6 When fastened, they should be tight without causing discomfort or undue pressure. Belts may not be suitable for all users. Seek professional medical advice before using a wheelchair belt. BTR22BLK Wheelchair (2021-12 Rev1) Page 6 of 12...
-
Page 7: Folding And Storage
Adopt the latest health and safety recommendations when lifting. Store in a dry environment, away from direct sunlight with parking brakes on. Note: The wheelchair may be folded and stored in a motor vehicle. BTR22BLK Wheelchair (2021-12 Rev1) Page 7 of 12... -
Page 8: Care And Maintenance
Care and maintenance Do not use a damaged or badly worn wheelchair. Users should routinely check for any malfunctions or changes in performance. Contact Drive DeVilbiss Healthcare Ltd or your provider to replace damaged or worn parts. • Brakes and tyres should be checked before each use, and at least once a month. -
Page 9: Warranty
If you have queries or require full warranty conditions, contact your provider. Accessories and spare parts Drive DeVilbiss Healthcare Ltd provide accessories and spare parts for the wheelchairs in this range. To order these parts, contact your provider. Visit www.drivedevilbiss.co.uk to find your local stockist. Spare part catalogues, compatibility charts and other documentation can also be found on this website. - Page 10 104 cm Overall width 71 cm Armrest height 71 cm Total mass 16.2 kg Static stability 10° 44 cm 56 cm Seat surface height at front edge 52 cm Overall height 92 cm BTR22BLK Wheelchair (2021-12 Rev1) Page 10 of 12...
- Page 11 This page is intentionally blank. BTR22BLK Wheelchair (2021-12 Rev1) Page 11 of 12...
- Page 12 Drive DeVilbiss Healthcare Ltd Sidhil Business Park, Holmfield, Halifax 4 Trench Road, Mallusk, Newtownabbey BT36 4TY, Northern Ireland West Yorkshire, HX2 9TN, GB Drive DeVilbiss Healthcare Ltd provide these instructions for use and product markings. info@drivedevilbiss.co.uk www.drivedevilbiss.co.uk Service & Maintenance Spares...
