www.drivedevilbiss.co.uk

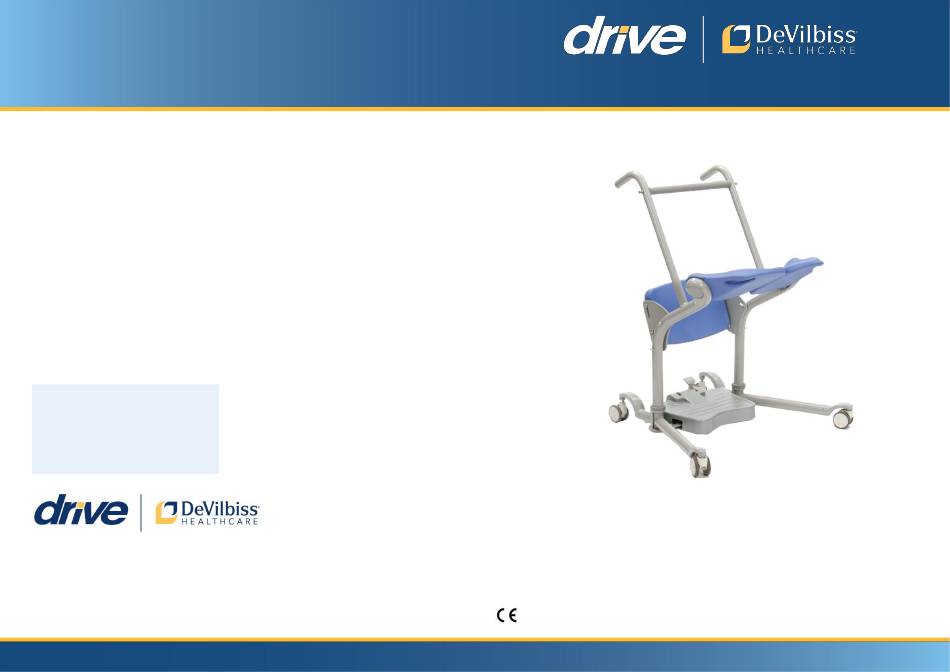

The Team at Drive DeVilbiss develops its
products to give our customers the freedom to
live independently. This encompasses their
daily home life and provides them with the
opportunity to enjoy an outing with family and
friends. Our goal is to develop a range that
will provide individuals with a chance
to enjoy every day life.
Dealer Stamp
Drive DeVilbiss Healthcare Ltd,
Heathfield Lane, Birkenshaw,
West Yorkshire, HX5 9JP
Able Assist Transfer Aids
Tel: +44 (0) 845 0600 333
Email: info@drivedevilbiss.co.uk
www.drivedevilbiss.co.uk
User Manual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Drive DeVilbiss Healthcare Able Assist PT003
Summary of Contents for Drive DeVilbiss Healthcare Able Assist PT003
- Page 1 Our goal is to develop a range that will provide individuals with a chance to enjoy every day life. Dealer Stamp Drive DeVilbiss Healthcare Ltd, Heathfield Lane, Birkenshaw, West Yorkshire, HX5 9JP Able Assist Transfer Aids Tel: +44 (0) 845 0600 333 Email: info@drivedevilbiss.co.uk...
- Page 2 Introduction Safety Precautions The Able Assist User Transfer Aid provides a Always wear appropriate footwear when safe and easy solution for a Carer wishing to operating the Able Assist. transfer a Client. This Transfer Aid is very The User should not be left unattended whilst occupying the Able Assist.

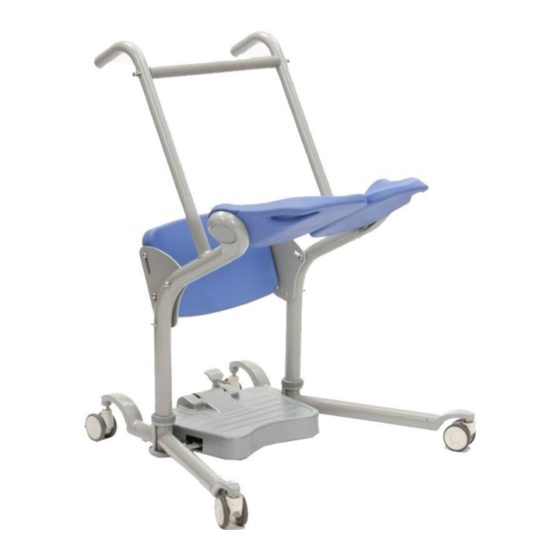

- Page 3 Parts Description Sling Push Push Hand Rail Attach- Handle Handle ment Seat Pad Sling Attach- ment Knee Pad Footplate Castor Wheel PT004 (Able Assist with Adjustable Legs) Model Identification PT005 (Able Assist with Folding Facility) PT003 (Able Assist with Rigid Legs) Able Assist User Manual (Ref: PT004_IFU Issued 01/17)
- Page 4 General Operation – 5. The User’s feet should be positioned on the Transferring to the Able Assist footplate. The User should then grap the hand rail. Using the assistance from the handrail, 1. Position the Able Assist close to the User the User should now be able to stand and requiring transport.
- Page 5 General Operation – Ask the User to stand up using the Hand Rail as assistance. Lift up the Seat Pads. Transferring From the Able Assist Position the Able Assist close to the seat or bed. Spread the legs on the Able Assist to give greater stability.
- Page 6 Using the Able Assist with a Bed 3. The User should grab the Hand Rail with both hands and use this to assist them The Able Assist can be used to aid a User getting with standing as shown below: out of bed.
- Page 7 Using the Able Assist with a Chair 3. The User should grab the Hand Rail with both hands and use this to assist them The Able Assist can be used to aid a User getting with standing as shown below: out of a chair, commode, toilet or wheelchair.
- Page 8 Sling Attachment Knee Pad Adjustment (PT004 Only) Sling and transfer belt attachments are provided The Knee Pad on the PT004 can be adjusted for for Users who require extra support. height and angle. Such compatible accessories can be attached by To adjust the angle, loosen the two dome head using the slotted bracket on the accessory as nuts with a spanner on both sides of the frame...
- Page 9 Folding the Able Assist (PT005) To fold the Able Assist: The PT005 comes with a folding facility to allow 1. Pull out the locking pin and fold down for compact to storage. the Hand Rail. To unfold the Able Assist: Undo the Velcro strap holding the frame together.
- Page 10 Specifications Specification PT003 PT004 PT005 Overall Length 86cm 82cm 78cm Overall Height 97cm 106cm 97.5cm Overall Width 61cm 53cm 61cm (open) 37cm (folded) Knee Pad Measurements 39cm (w) x 26cm (h) 39cm (w) x 26cm (h) 36cm (w) x 25cm (h) Knee Pad Height from Base 17-41cm 25-49cm...
- Page 11 Servicing and Maintenance Weekly Checks: The following weekly checks are recommended: Cleaning: Check the brakes and the secure fixing and manoeuvrability of the castors. It is recommended that the Able Assist is cleaned Check that the transfer aid is stable, daily as a minimum.
