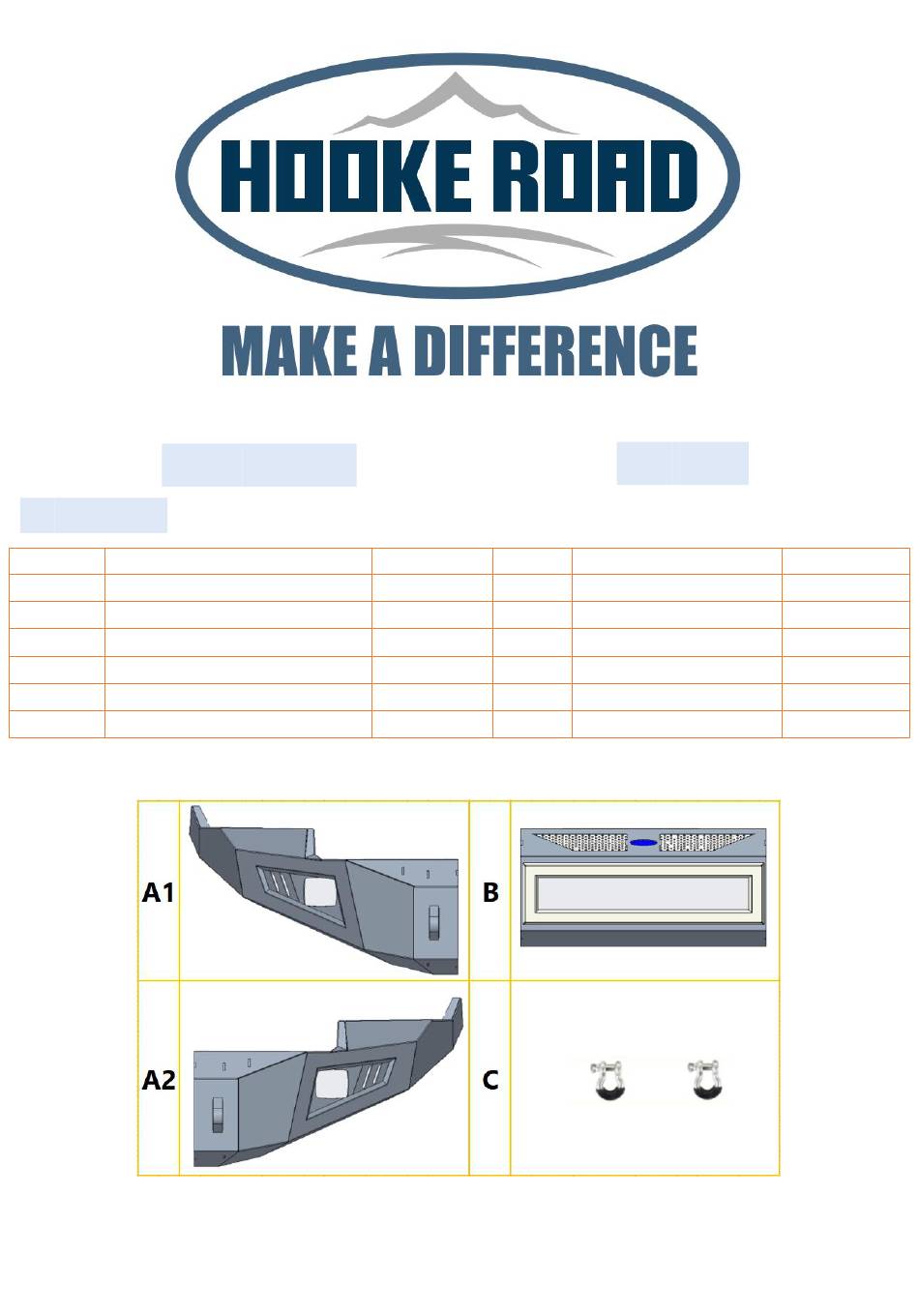

Front Bumper
(1) Contents:
Qty
Part Name
1
Front Bumper Assembly
8
Hex Bolt
6
Hex Bolt
2
Hex Bolt
2
Split Lock Washer
14
Split Lock Washer
Size(mm)
Qty
2
M12*30
22
M12*35
2
M10*35
8
D10
6
D12
BXG.6201
Part Name
Flat Washer
Flat Washer
Flange Hex Lock Nuts
Hex Nuts
Flange Hex Lock Nuts
Size(mm)
M10*25*1
M12*30*2
M10
M12
M12
Advertisement
Related Manuals for HOOKE ROAD BXG.6201
Summary of Contents for HOOKE ROAD BXG.6201
- Page 1 BXG.6201 Front Bumper (1) Contents: Part Name Size(mm) Part Name Size(mm) Front Bumper Assembly Flat Washer M10*25*1 Hex Bolt M12*30 Flat Washer M12*30*2 Hex Bolt M12*35 Flange Hex Lock Nuts Hex Bolt M10*35 Hex Nuts Split Lock Washer Flange Hex Lock Nuts...
- Page 2 (2) Tools required: a. 16mm&19mm Wrench; b. 16mm & 19mm Shallow Socket； c. Drive Socket Ratchet Wrench；...
- Page 3 About 1.5 hours, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.6201), please scan the QR code.
- Page 4 (4) Installation instruction: Step 1: Remove your OEM front bumper. Step 2: Assemble the Part “A1”, “A2” & “B” with the Hex Bolt(M12*30), Split Lock Washer(D12), Flat Washer(M12*30*2), Hex Nut(M12).
- Page 5 Step 3: Install the bumper into your vehicle with the Hex bolts (M12*35), Hex bolts(M10*35), Split Lock Washer(D12), Flat Washer(M12*30*2), Hex bolts(M10*35), Split Lock Washer(D10), Flat Washer(M10*25*1), Flange Hex Lock Nuts(M10), Flange Hex Lock Nuts(M12).
- Page 6 The same operation for the other side. Note that you need to lift the bumper first to adjust the left and right gaps to a suitable size and then tighten the screws. Step 4: Install the D-rings into the bumper.
- Page 7 Step 5: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
