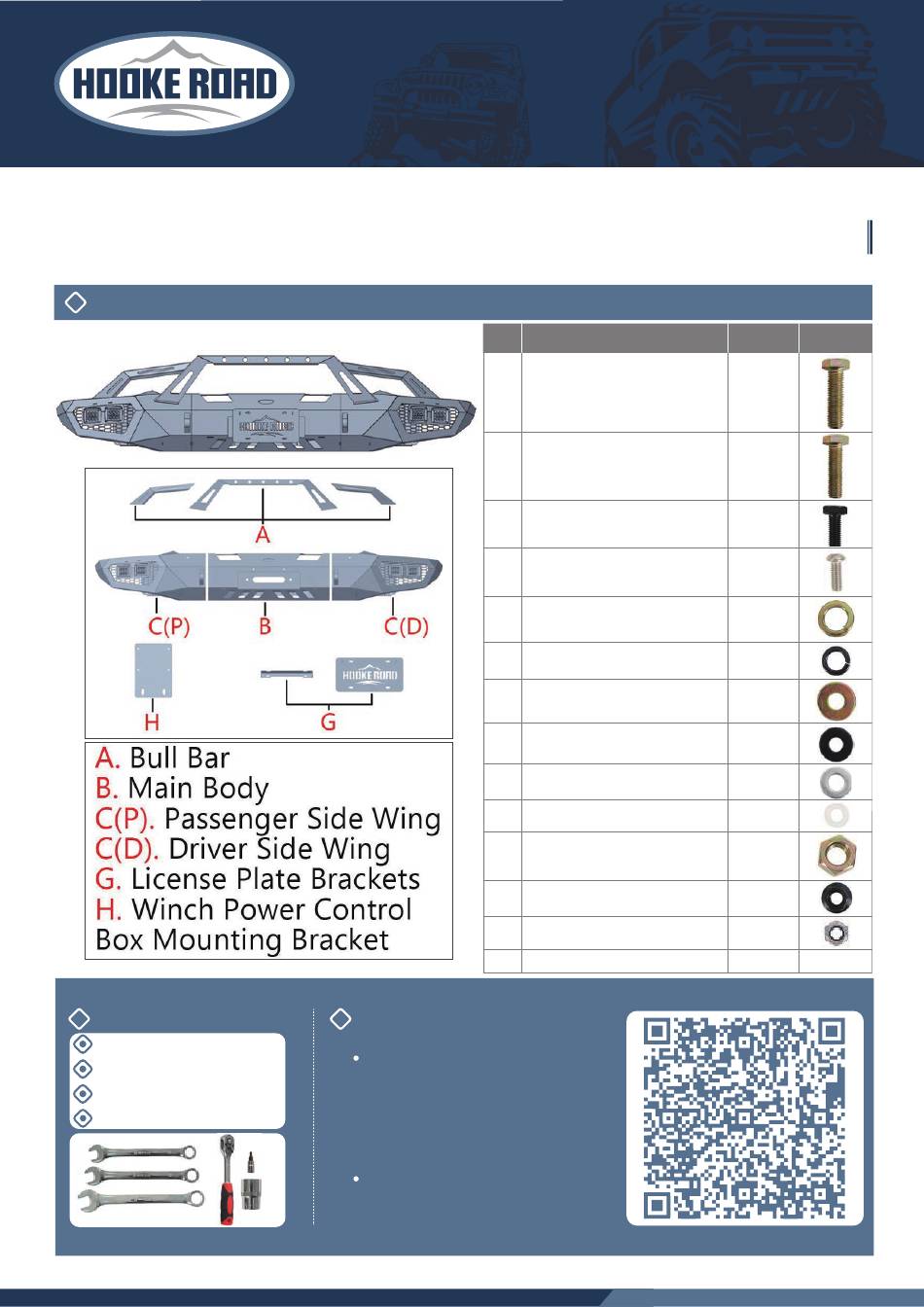

Front Bumper
CONTENTS
1
TOOLS REQUIRED
2
Drive Socket Ratchet Wrench
4mm Hex Bit Socket
10mm, 14mm,19mm Wrench
19mm Shallow Socket
MAKE A DIFFERENCE
Qty
6
6
10
4
12
10
18
10
4
2
12
10
4
2
INSTALLATION TIME
3
About 1.5 hours, 2-3 people may be needed.
Installation time may differ according to
your mechanical skill level.
(PLEASE VERIFY ALL PARTS ARE PRES-
ENT AND READ INSTRUCTIONS CAREFUL-
LY BEFORE STARTING INSTALLATION!)
To view the electronic version (BXG.6036),
please scan the QR code.
(INSTALLATION INSTRUCTION)
Part Name
Hex Bolts
Hex Bolts
Hex Bolts
Button Head Socket Cap
Bolts Screws
Split Lock Washer
Split Lock Washer
Flat Washer
Flat Washer
Flat Washer
Nylon Round Spacer
Hex Nuts
Flang e Hex L ock N uts
Nylon Insert Lock Nut
EVA
BXG.6036
Size(mm)
M12*35
M12*30
M8*20
M6*16
D12
D8
M12*30*1.5
M8*20*1
M6*12*1
M6*12*1.3
M12
M8
M6
Advertisement
Related Manuals for HOOKE ROAD BXG.6036
Summary of Contents for HOOKE ROAD BXG.6036
- Page 1 Installation time may differ according to 10mm, 14mm,19mm Wrench your mechanical skill level. 19mm Shallow Socket (PLEASE VERIFY ALL PARTS ARE PRES- ENT AND READ INSTRUCTIONS CAREFUL- LY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.6036), please scan the QR code.
- Page 2 Remove the factory front bumper, ready to install our bumper. Step 2 Assemble your Hooke Road bumper. First, stick the EVA into the main body. Install the wing using (3) of the provided Hex bolts (M12*30), Split lock washers (D12), Flat washers (M12*30*2), Hex nuts (M12). Line the outer profile to the inner profile and tighten all the hardware.
- Page 3 Step 4 Assemble the license plate bracket (A1, A2, A3) with the M6*20 button head socket cap bolts screw groups. And then install it into the bumper with the M6*20 button head socket cap bolts screw groups. Attention to the installation holes is below the light net.
- Page 4 Step 6 Step 7 The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
