Hardware layout
The STM32-MICRIUM evaluation board is designed around the STM32F107VCT in a 100-
pin TQFP package.
Figure 2
illustrates the connection between the STM32F107VCT and peripherals (USB-
OTG, Ethernet, SD/MMC, RS-232, CAN temperature sensor).
Figure 3
helps you to locate these features on the actual evaluation board.

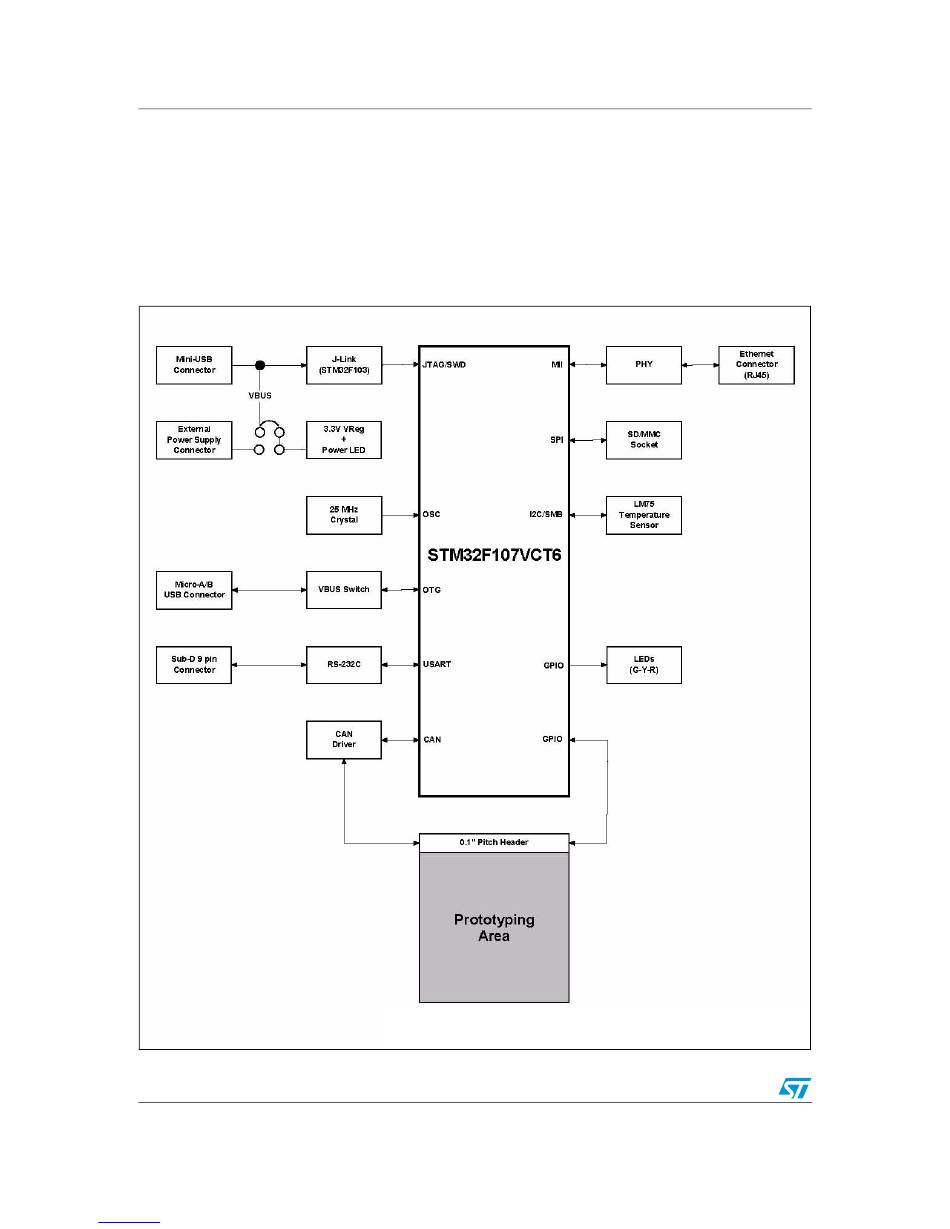

STM32-MICRIUM evaluation board hardware block diagram
