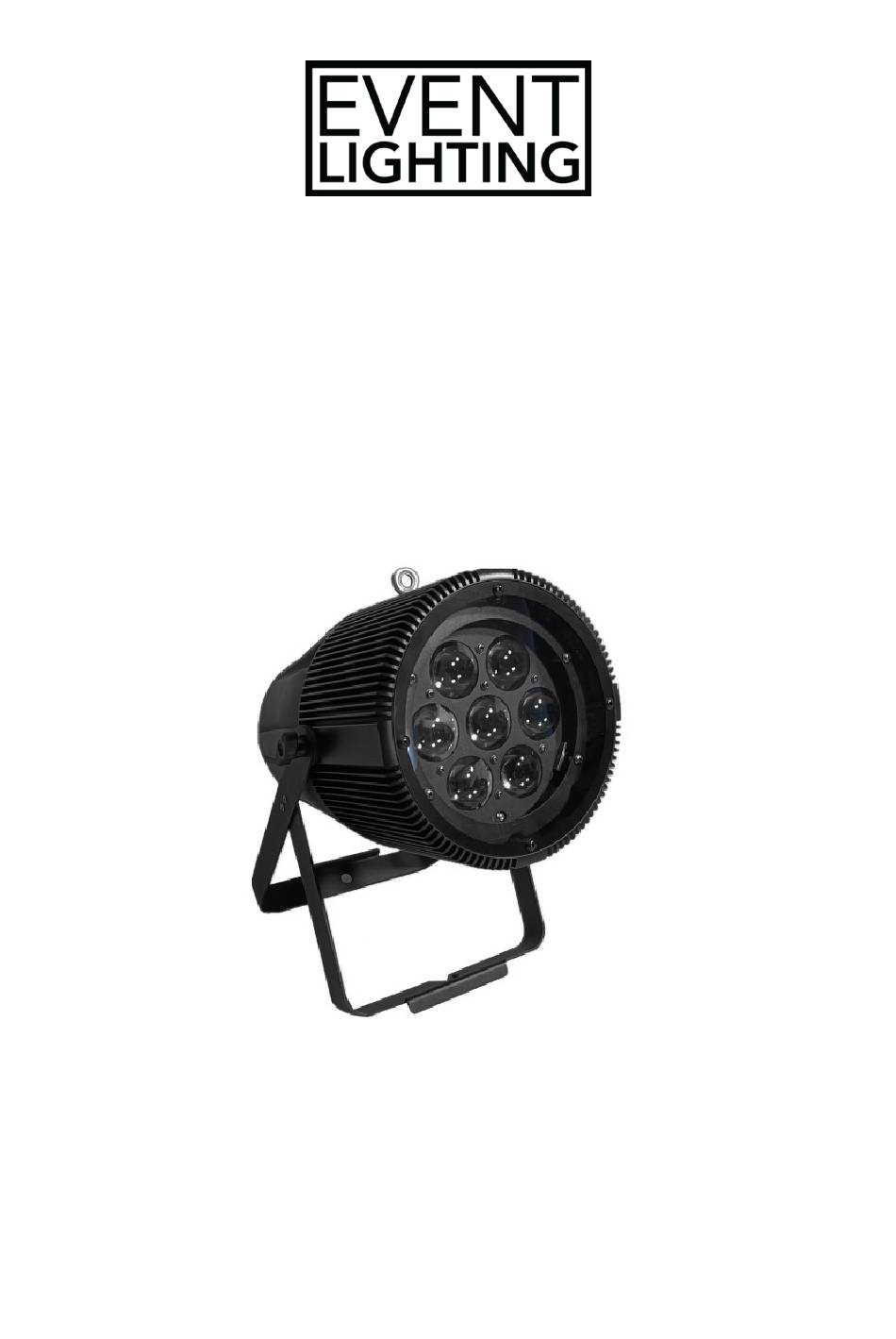

PAR7X25OZ
7 x 25W RGBW IP65 Zoom Par
USER MANUAL
For your safety, please read this user manual carefully before use.
Event Lighting reserves the right to revise the manual at any time. Information and
specifications within this manual are subject to change without notice. Event Lighting
assumes no liability or responsibility for any errors or omissions. Please consult Event
Lighting for any clarification or information regarding this item.
Version 1.0 (September 2023)
Advertisement
Table of Contents
Related Manuals for Event Lighting PAR7X25OZ
Summary of Contents for Event Lighting PAR7X25OZ
- Page 1 USER MANUAL For your safety, please read this user manual carefully before use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
- Page 2 www.event-lighting.com.au Introduction Thank you for purchasing our product. Before carrying out any operations with the product, carefully read this instruction manual and keep it with cure for future reference. It contains important information about the installation, usage and maintenance of the unit. Please strictly follow it.
-
Page 3: Safety Instructions
www.event-lighting.com.au Safety instructions WARNING Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. Do not look at the light source when the device is on. CAUTION: This unit's housing may be hot during and after operation. ... - Page 4 www.event-lighting.com.au Description Product features Made by die-cast aluminum material which makes the lamp more strong Good performance of cooling system with the quiet fan DMX controlled operation, possible work with any commercial DMX512 controller Rail-type hanging bracket, bracket position can be adjusted ...
-
Page 5: Operation
www.event-lighting.com.au Operation Menu 1st Menu 2nd Menu 3rd Menu Value Note Addr: 1-512 DMX512 address 4-CH 4 channels mode 6-CH 6 channels mode Channel mode 11-CH 11 channels mode 15-CH 15 channels mode 2200 - STATIC 2200K - 10000K 10000 Dimmer 000 - 255 Master Dimmer... - Page 6 www.event-lighting.com.au 000 - 255 White dimmer Dimmer 000 - 255 Master Dimmer Strobe 000 - 255 Strobe Zoom 000 - 255 Zoom AUTO1 AUTO2 AUTO3 AUTO4 AUTO5 AUTO AUTO6 AUTO7 AUTO8 AUTO9 AUTO10 PERSONAL Linear Square Curve Inv Square Speed...
- Page 7 www.event-lighting.com.au Medium High 1000Hz 1200Hz 1500Hz Frequency 2000Hz 4000Hz 8000Hz FULL FAN MODE AUTO SILENT Blackout Goes off when DMX signal is lost DMX Fail Maintain final state when DMX Hold signal is lost Version Version RDM UID RDM unique ID INFO USAGE TIME Temp...
-
Page 8: Dmx Modes
www.event-lighting.com.au Use ‘Up’ and ‘Down’ button to select your desired operation, press ‘Enter’ to set all function DMX Modes DMX512 Channel table Modes Value Function 4-CH 6-CH 11-CH 15-CH Master Dimmer 000 - 255 Master Dimmer fine 000 - 255 000 - 255 Red fine 000 - 255... - Page 9 www.event-lighting.com.au 4000K 026 - 030 4500K 031 - 035 5000K 036 - 040 5600K 041 - 045 6000K 046 - 050 6500K 051 - 055 7000K 056 - 060 8000K 061 - 065 10000K 066 - 255 Zoom 000 - 255 Strobe slow to fast 000 - 255 Fade off...
-
Page 10: Fuse Replacement
Dimming Range: 16bit smooth dimming 0-100% DMX Channel: 4CH/6CH/11CH/15CH Optional Control system: DMX512 signal Display Screen: 4-Button OLED Screen IP Rating: IP65 Ambient Temp.: -15℃～35℃ Product size: 287x311x31mm Weight: 6.5kgs Warranty Please refer to your local dealer or contact Event Lighting.
