- Page 1 K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODELS: PT-571HDCP DVI Line Transmitter PT-572HDCP+ DVI Line Receiver P/N: 2900-000689 Rev 8...
-
Page 3: Table Of Contents
Contents Introduction Getting Started Achieving the Best Performance Safety Instructions Recycling Kramer Products Accessory to Medical Equipment (IEC 60601-1-2) Overview Using Twisted Pair Cable About the Power Connect™ Feature Defining the PT-571HDCP DVI Line Transmitter Defining the PT-572HDCP+ DVI Line Receiver... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded... -
Page 5: Getting Started
Achieving the Best Performance To achieve the best performance: Use only good quality connection cables (we recommend Kramer high- performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables) ... -
Page 6: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country... -
Page 7: Overview
80m (265ft) at UXGA on shielded BC−DGKat7a23 cable Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6 and CAT 7a cables may not reach these ranges ... -
Page 8: Using Twisted Pair Cable
Using Twisted Pair Cable Kramer engineers have developed special twisted pair cables to best match our digital twisted pair products; the Kramer: BC-DGKat524 (CAT 5 24 AWG), the Kramer: BC-DGKat623 (CAT 6 23 AWG cable), and the Kramer: BC-DGKat7a23 (CAT 7a 23 AWG cable). These specially built cables significantly outperform regular CAT 5/CAT 6/CAT 7a cables. -
Page 9: Defining The Pt-571Hdcp Dvi Line Transmitter
Defining the PT-571HDCP DVI Line Transmitter The Kramer Pico TOOLS PT-571HDCP DVI Line Transmitter receives a DVI signal, encodes it, and transmits it over a CAT 5 cable to the PT-572HDCP+. The PT-571HDCP has: A DVI input connector ... -
Page 10: Defining The Pt-572Hdcp+ Dvi Line Receiver

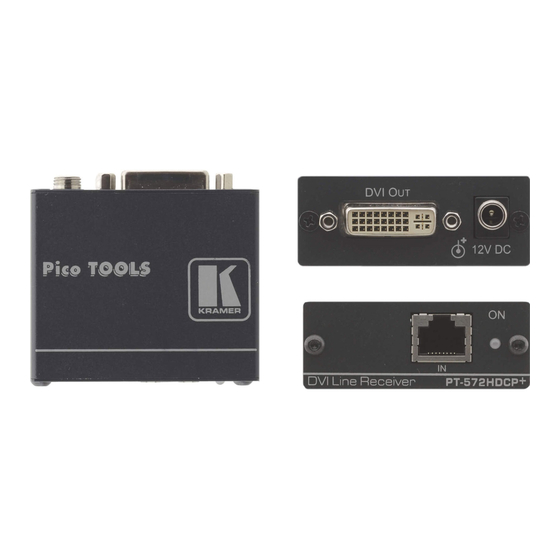

Defining the PT-572HDCP+ DVI Line Receiver The Kramer Pico TOOLS PT-572HDCP+ DVI Line Receiver receives an encoded signal over a CAT 5 cable transmitted from the PT-571HDCP, decodes it, and converts it to a DVI output. The PT-572HDCP+ has: ... -
Page 11: Connecting The Transmitter Receiver Pair
Connecting the Transmitter Receiver Pair Always switch off the power to each device before connecting it to your Transmitter and Receiver pair. After connecting your Transmitter and Receiver pair, connect the power and then switch on the power to each device. You can use the PT-571HDCP DVI Line Transmitter with the PT-572HDCP+ DVI Line Receiver to configure a DVI transmitter/receiver system. -
Page 12: Figure 3: Connecting The Pt-571Hdcp/Pt-572Hdcp+ Transmitter/Receiver Pair
Figure 3: Connecting the PT-571HDCP/PT-572HDCP+ Transmitter/Receiver Pair PT-571HDCP/PT-572HDCP+ - Connecting the Transmitter Receiver Pair... -
Page 13: Wiring The Cat 5 Line In / Line Out Rj-45 Connectors
Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors This section defines the CAT 5 pinout, using a straight pin-to-pin cable with RJ-45 connectors. Note, that the cable Ground shielding must be connected / soldered to the connector shield. Figure 4: CAT 5 PINOUT EIA /TIA 568B Wire Color... -
Page 14: Technical Specifications
WEIGHT: 0.14kg (0.3lbs) INCLUDED ACCESSORIES: Power supply, mounting brackets 19” RK-4PT rack adapter, Kramer DVI cables and OPTIONAL ACCESSORIES: BC-DGKat524 (CAT 5 24 AWG), BC-DGKat623 (CAT 6 23 AWG) and BC-DGKat7a23 (CAT 7a 23 AWG) cables Specifications are subject to change without notice... - Page 16 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. SAFETY WARNING Disconnect the unit from the power supply before opening and servicing PN: 2900- 000689...
