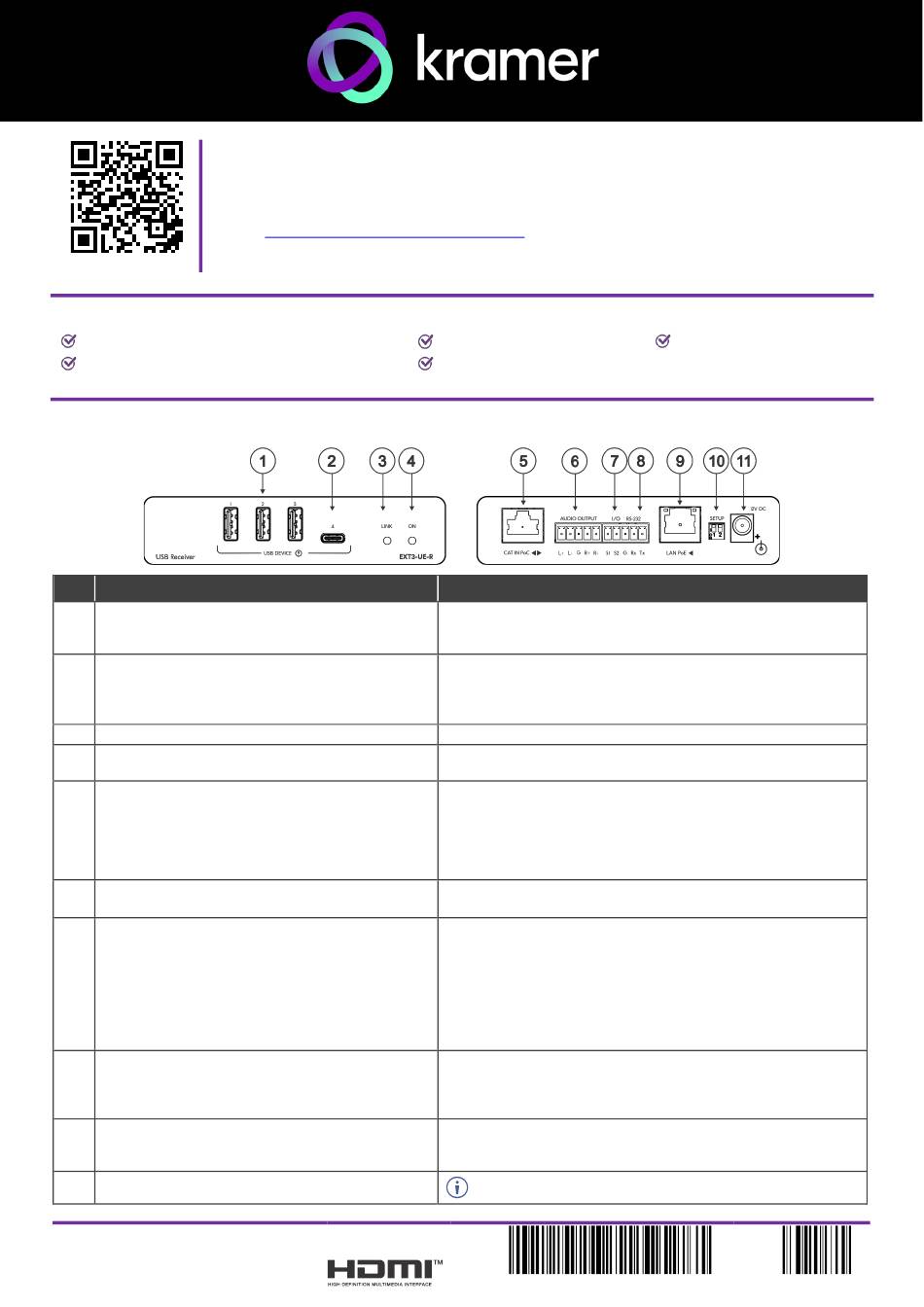

Step 1: Check what's in the box
EXT3-UE-R USB Receiver
1 Bracket set

Step 2: Get to know your EXT3-UE-R

#
Feature
1
USB 2 Type A Ports (1 to 3)
2
USB-C Port (4)
3
LINK LED
4
ON LED
5
CAT IN PoC RJ-45 Connector
6
AUDIO OUTPUT 5-pin Terminal Block Connector
L+, L-, G)
7
I/O 2-pin Terminal Block
(S1 to S2)
8
RS-232 3-pin Terminal Block
(G, Rx, Tx)
9
LAN PoE RJ-45 Connector
10
SETUP 2-way DIP-switch
EXT3-UE-R Quick Start
EXT3-UE-R Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/EXT3-UE-R
upgrades are available.
EXT3-UE-R
for the first time.
to download the latest user manual and check if firmware
4 Rubber feet
1 Quick start guide
Function
Connect to USB local devices (for example, a USB camera, a
soundbar, microphone etc.). Ports provide standard USB device
charging.
Connect to USB local devices (for example, a USB camera, a
soundbar, microphone etc.). Port provides standard USB device
charging.
Note: Port does not provide Power Delivery 2.0 charging.
Flashes blue when a link is established.
Lights green when locally powered by the power adapter. Lights
orange when powered by PoC.
Connect to:
One of the USB CAT OUT PoC ports on the SWT3-41-U-T,
OR,
CAT A or CAT B on the ACC3-12-SP 1:2 CAT Cable
Splitter which can be connected to the SWT3-41-U-T.
Connect to a balanced analog stereo audio line acceptor.
Connect to:
• Input-triggering devices (for example, remote buttons or
sensors), OR
• Output-triggered devices (for example, remote alarm LED
indication).
These GPIO ports may be configured via paired SWT3-41-U-T
embedded webpages, as digital input or output ports.
Connect to an RS-232 controlled device (for example, the
connected PTZ USB camera) to be controlled via a controller (for
example, SL-240C) which is IP-connected to a paired SWT3-41-
U-T.
Connect to LAN or to an IP-controlled device (for example, the
connected PTZ USB camera). The device accepts power from the
LAN port.
All changes in DIP-Switches apply immediately.
P/N: 2 9 0 0 - 3 0 1 6 5 4 QS
1 USB-C 2.0 (1.8m) cable
Rev: 2
