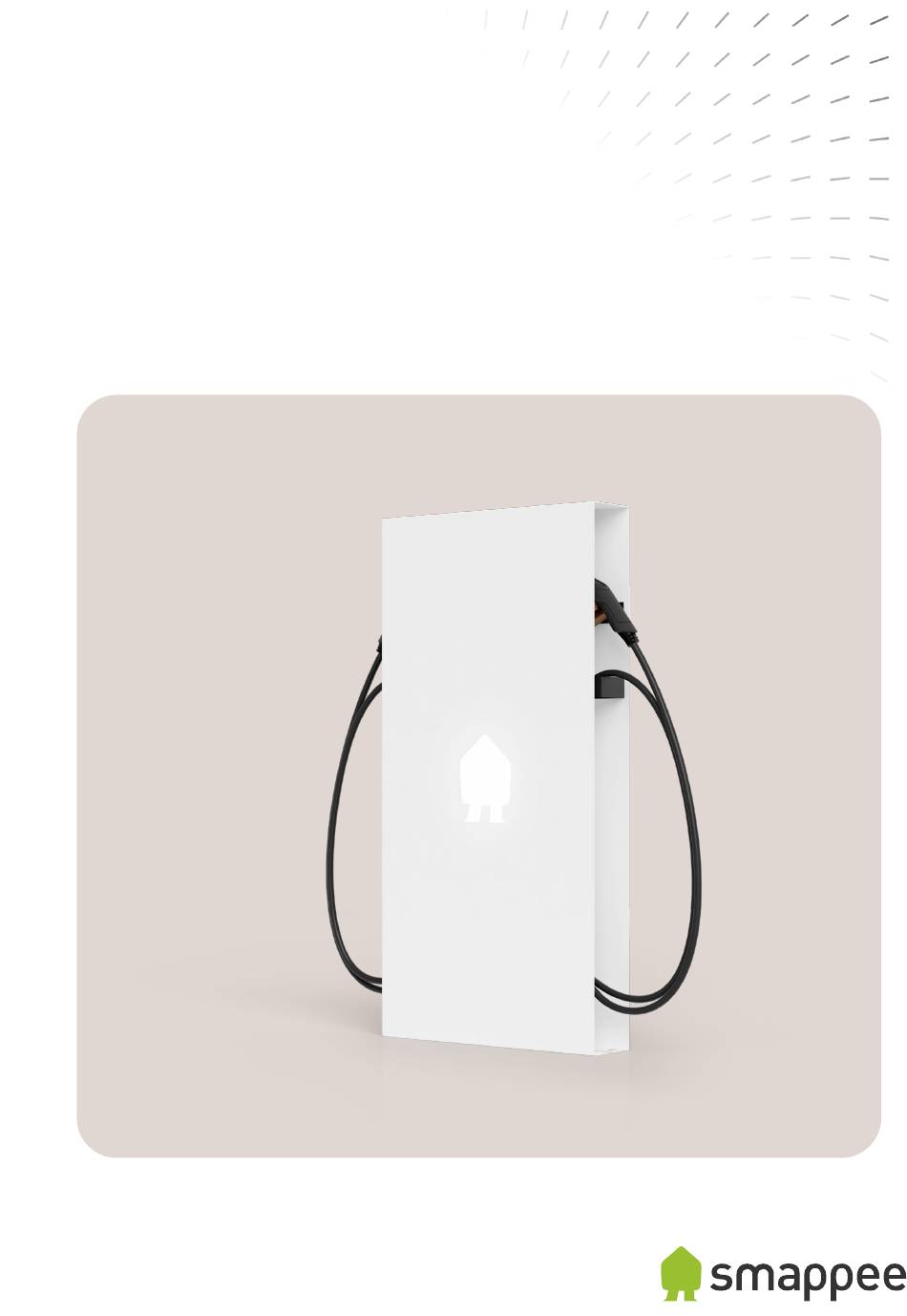

  • Page 1 Smappee EV Base Installation manual ² English – Version 3.02 – October 2024...
  • Page 2 The specifications and other information in this document were verified to be accurate and complete at the time of its publication. Due to ongoing product improvement, this information is subject to change at any time without prior notice. For the latest information, see our online documentation: smappee.com/downloads...

  • Page 3: Table Of Contents

    Table of contents Introduction ............................4 Safety instructions ........................... 5 Overview of the EV Base ........................ 7 Preparing the installation ....................... 15 Installation and configuration ......................19 Annexes ..............................29 EV Base – Installation manual – English...

  • Page 4: Introduction

    Thank you for purchasing this EV Base charging station for electric vehicles, the smartest charging station for businesses. This installation manual tells you how to install the EV Base. We recommend that you to read the contents of this manual carefully, to ensure a safe and proper installation and enable to use all the advanced features of this product to the full.

  • Page 5: Safety Instructions

    • Do not expose the charging station to heat, flame or extreme cold. • Do not attempt to open, repair, or service any parts. Contact Smappee or your service partner for • further information. Only use the charging station under the specified operating conditions.

  • Page 6: Maintenance

    Only transport and store the charging station in its original packaging. No liability for damage • incurred will be accepted if the charging station is transported in non-standard packaging. Store the charging station in a dry environment within the temperature range specified in the • technical specifications. EV Base – Installation manual – English...

  • Page 7: Overview Of The Ev Base

    EV Base Black 3-Phase 2 x 22 kW Socket EVB-2332-BS-E 5425036932753 EV Base 3-Phase 2 x 22 kW Socket with shutter EVB-2332-C5-E 5425036932296 EV Base 3-Phase 2 x 22 kW Type 2 cable 5m EV Base – Installation manual – English...

  • Page 8: What's In The Box

    3.2. What’s in the box Figure 1: What's in the box (items 6, 7 and 8 only for EV Base with fixed charging cables) Quantity Description EV Base Concrete anchors (Ø 12 mm x 100 mm) M12 washers (Ø 50 mm)
  • Page 9 3.3. Directional determination Figure 2: Directional determination Description Front Rear Left Right Bottom EV Base – Installation manual – English...
  • Page 10 3.4. Identification label of the EV Base Position of the identification label of the EV Base The identification label of your charging station is located below the connector 1. Figure 3: Position of the identification label EV Base – Installation manual – English...
  • Page 11 Content of the identification label of the EV Base The identification label of your charging station has the following information. Figure 4: Identification label Description Manufacturer Article number Rating Operating temperature Manufacturing date QR code containing article number and serial number...

  • Page 12: Technical Specifications

    50 Hz / 60 Hz Rated current (I 32 A Rated current (I ) of a circuit 32 A Caution: not all electric vehicles support the IT system. For 3x230V charging, a voltage transformer might be necessary. EV Base – Installation manual – English...
  • Page 13 -25 °C to 40 °C Storage temperature -25 °C to 60 °C Relative humidity 0 % - 95 %, non-condensing Maximum installation altitude 0 – 2.000 m Access Locations with restricted and non-restricted access EV Base – Installation manual – English...
  • Page 14 Where products are exposed to the elements of nature, the enclosure can be subject to gradual aging of the material, which can result in product discolouration over time. Therefore, wherever possible, place the product in a sheltered place to optimise the life of the materials. EV Base – Installation manual – English...

  • Page 15: Preparing The Installation

    NOTE For more information, refer to the Smappee Academy. The first step is to prepare the physical installation of the EV Base as described in this chapter. 4.1. Installation prerequisites Obtain all necessary permits from the relevant local authority. •...
  • Page 16 We recommend a levelled concrete foundation at ground level. This can be a polished concrete floor in a parking garage or a paved area for installation of the charging stations. If you want a foundation for each EV Base, you should do the following. Instructions Proceed as follows.
  • Page 17 2. Route the two power supply cables and one Ethernet cable to the location of the EV Base. Figure 6: Example of a solid foundation (C), with cables (D) in a flexible conduit system (E) 3. Fill foundation hole with concrete.
  • Page 18 CAT 5/6 Ethernet cable and two RJ45 connectors for internet access Power supply cables • Ferrules (6 mm²), when using stranded power supply cables or decreasing the length of a • charging cable Circuit breakers (max. 40 A) • EV Base – Installation manual – English...

  • Page 19: Installation And Configuration

    6. Connect the EV Base to the internet (page 25) 7. Attach the QR-stickers to the EV Base (page 26) After the physical installation, these are the last steps to have the EV Base ready for use: Configure the EV Base (page 27) 2.
  • Page 20 Cut the cable tie that hold the charging cables to the floorplate. 4. Remove the rear plate. The rear side of the EV Base is the side without the Smappee logo. Use a 2.5 mm key to loosen the six hexagon socket screws of the side plate.
  • Page 21 5.2. Install the floorplate of the EV Base Context The EV Base is designed to be installed at ground level using the floorplate. Instructions Proceed as follows. Put the floorplate on the location of the EV Base. Route the two power supply cables and one Ethernet cable through the central opening of the floorplate.
  • Page 22 5.3. Attach the EV Base to the floorplate Context The concrete anchors in the floorplate give the position where you attach the EV Base to the floorplate. Instructions Proceed as follows. Position the EV Base above the floorplate. Lift the EV Base with at least two persons.
  • Page 23 5.4. Connect the charging cables Context NOTE This section is only relevant if the EV Base comes with a fixed charging cable. If you have a socket-variant, go to Connect the EV Base to the internet (page 25). Instructions Proceed as follows.
  • Page 24 7. Make sure that the two earth-leakage circuit breakers are set to the on position. The on position is shown in Figure 12. As a result, the EV Base is now ready for power. EV Base – Installation manual – English...
  • Page 25 5.6. Connect the EV Base to the internet Context CAUTION Risk of electric shock. Make sure no tools are in the charging station and persons stand free from the charging station. Figure 13: View on the Smappee Connect Instructions Proceed as follows.
  • Page 26 Context NOTE This section is only relevant if the EV Base needs Scan and charge. If you will not use a QR code to start charging sessions, go to Configure the EV Base with the Smappee App (page 27). Instructions Proceed as follows.
  • Page 27 5.8. Configure the EV Base with the Smappee App Prerequisites This procedure is done with the Smappee App. You can download this mobile app from the Apple App Store for iOS or the Google Play store for Android phones. Figure 15: Download the Smappee App...
  • Page 28 5.9. Complete the installation of the EV Base Context CAUTION Risk of electric shock. Make sure no tools are in the charging station and persons stand free from the charging station. Figure 16: View on the bolts that hold the rear plate and floorplate Instructions Proceed as follows.

  • Page 29: Annexes

    During the installation you can do the physical phase rotation. • • During the configuration with the Smappee App you need to set the phase mapping. NOTE You can later adjust this in the Charger configuration card of the Smappee Dashboard.
  • Page 30 Example of phase rotation A charging square has two EV Base (charging point 1 thru 4), one EV Wall (charging point 5) and an EV One (charging point 6). In the following table, the bold Xs indicate the phase rotation.

  • Page 31: Declaration Of Conformity

    Declaration of conformity EV Base – Installation manual – English...
  • Page 32 Colour code explanation Status of the Smappee Connect This status is relevant during the configuration of the charging station. Figure 17: Position of the LED on the Smappee Connect Colour Status Meaning More information Blue continuous Starting up The Connect is starting up. If this takes more than 30 seconds, please contact support.
  • Page 33 Status of the charging station This status is relevant during the use of the charging station. Figure 18: Position of the RFID readers with LED on the EV Base NOTE Each charging point can have a different status. EV Base – Installation manual – English...
  • Page 34 Green continuous EV is charged Disconnect the charging cable and put it safely back in the cable holder or another storage place (for the socket-variant). EV Base – Installation manual – English...
