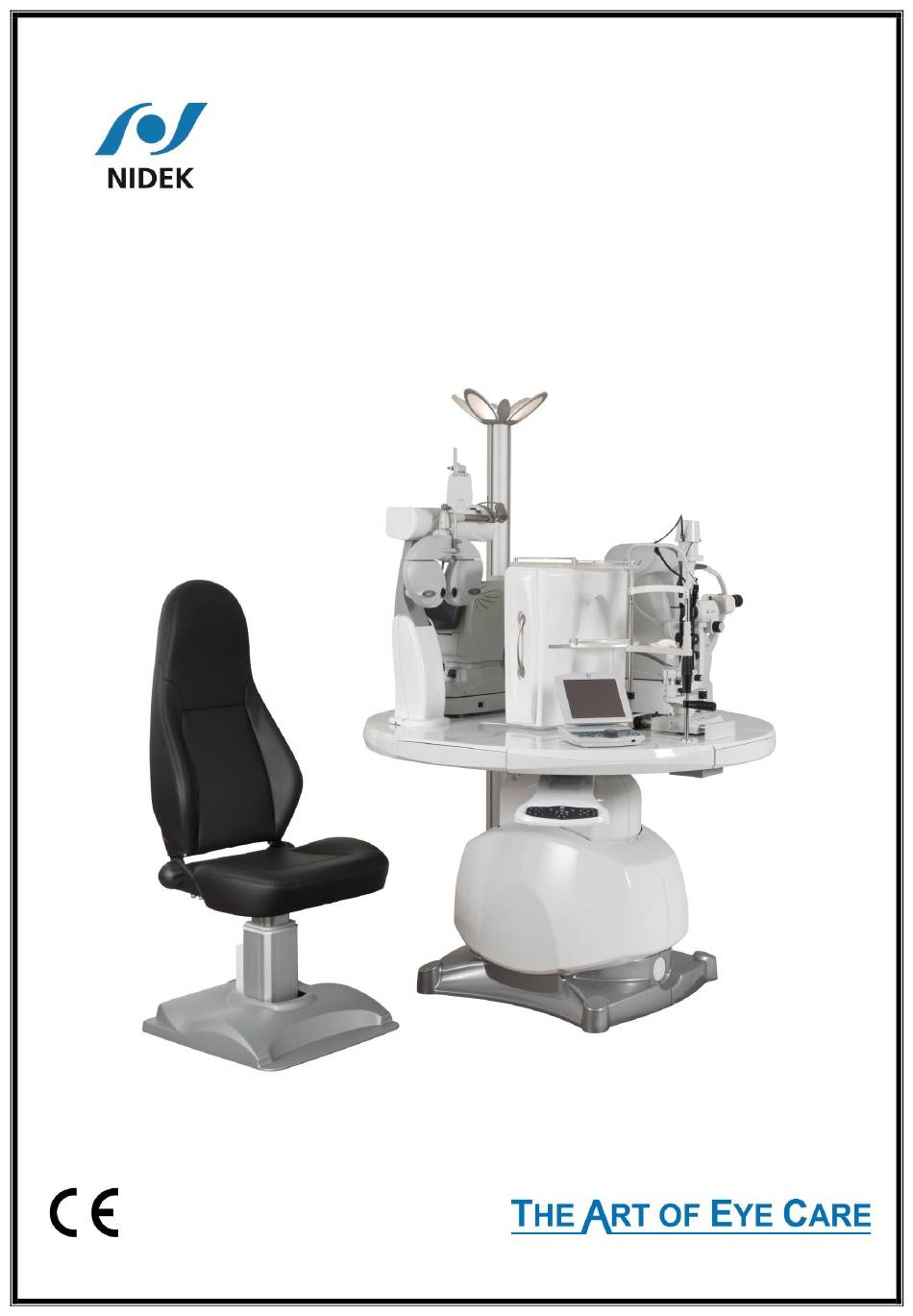

OT–6400
Refraction
UNIT
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OT-6400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nidek Medical OT-6400

Summary of Contents for Nidek Medical OT-6400

  • Page 1 OT–6400 Refraction UNIT USER’S MANUAL...
  • Page 2 Before use or maintenance, read this user’s manual This manual contains information necessary for the use of the NIDEK OT-6400 consultation unit: operating procedures, precautions for use, specifications and maintenance instructions. This user manual is essential to ensure the unit is used properly.

  • Page 3: Table Of Contents

    User’s manual OT-6400 CONTENTS 1. THE OT-6400 RANGE 1.1. INTENDED USE OF THE CONSULTATION UNIT 1.2. PRESENTATION OF THE VERSIONS 2. SAFETY INSTRUCTIONS 2.1. CAUTION INSTRUCTIONS CONCERNING THE INSTALLATION 2.2. ELECTRICAL CONNECTIONS 2.3. PRECAUTIONS FOR USE 2.4. SERIOUS INCIDENT DECLARATION 2.5.

  • Page 4: The Ot-6400 Range

    The OT-6400 is available as a 3 or 4-shelf instrument carrier, with a fixed or inclining seat and a light column supporting the test projector.

  • Page 5: Safety Instructions

    Contact NIDEK or your authorized dealer for service by a NIDEK technician. The OT-6400 consultation unit is declared to comply with EU Regulation 2017/745 concerning medical devices as it has been tested and declared to comply with EN 60601-1 and 60601-1-2 to ensure basic safety and reasonable protection against harmful interference occurring in a typical medical installation.

  • Page 6: Precautions For Use

    User’s manual OT-6400 Make sure you use a power socket that meets the specific requirements for the power supply. If this is not the case, the appliance may not work to the best of its capabilities. The mains socket must be earthed, otherwise there is a risk of an electric shock in the event of current leakage.

  • Page 7: Serious Incident Declaration

    User’s manual OT-6400 Be careful during examinations, movements are controlled under the constant supervision of the practitioner. You must always make sure that no obstacle can cause collisions that could damage the equipment or cause injury. The means to stop movement are: ...

  • Page 8: Labelling

    User’s manual OT-6400 Ecosystem and finances the approved collection and recycling system for professional electrical waste (WEEE Pro). This allows you to dispose of your consultation unit at the end of its life free of charge. For specific disposal information in countries other than France, contact your distributor or consult local regulations for disposal of electronic products.
  • Page 9 User’s manual OT-6400 2.6.2 Label The following label and indications are affixed to the unit to draw the operator’s attention. 1 Manufacturer's logo 7 Maximum power 2 Address of the head office 8 Frequency 3 In accordance with EU Regulation No.

  • Page 10: Description Of The Unit

    User’s manual OT-6400 ESCRIPTION OF THE UNIT Ambient lighting Test projector holder Near vision lighting Refraction case Electric travel arm for the phoropter Instrument Control shelf console Examination tabletop Electric rotation, Electrically adjustable height over 18 cm (75 to 93 cm)

  • Page 11: Operation

    User’s manual OT-6400 OPERATION 4.1. SWITCHING THE UNIT ON First of all, the unit must be properly connected to a power source (see § 2.2 “Connecting the Unit to a power socket”). The thermal circuit breaker (located on the side of the control console) must be set to position "I": Its green LED and the blue "ready"...

  • Page 12: Using The Control Console

    User’s manual OT-6400 4.3. USING THE CONTROL CONSOLE SEAT Automatic rise ON / OFF TABLE INITIALIZATION Raise/lower TILT LIGHTING EXIT* RT Arm SAFETY SHUNT RT Arm RT Arm LIGHTING Ambient LIGHTING Locker LIGHTING Spot SEAT BRAKE Up/down ELECTRIC ANTERO- OPTION CONTROLS...

  • Page 13: Safety Device

    User’s manual OT-6400 "READY" The LED is on continuously: The unit is in operating condition The LED flashes: The unit is in the initialization state "ALERT" The LED flashes slowly: The safety systems are activated The LED flashes rapidly: They are shunted 4.4.

  • Page 14: Maintenance

    User’s manual OT-6400 AINTENANCE  CAUTION: Before carrying out any maintenance or wear part changes, disconnect the power cable (unless indicated otherwise). 5.1. TROUBLESHOOTING GUIDE If the consultation unit does not operate normally, perform the following checks before contacting NIDEK or your authorized dealer.
  • Page 15 User’s manual OT-6400 Only one 230V powered device on the tabletop Check that it is in the "ON" position. does not work. Refer to the instructions for the device. If the actions in the table above do not solve the problem(s), contact NIDEK or your authorized dealer.

  • Page 16: Maintenance And Checks

    USB FLASH DRIVE A USB flash drive containing the original program for your OT-6400 is located in the centre box of the unit against the front of the drawer. It is essential not to use this key for personal use or Neutral detergent: a detergent with a neutral pH (between 6 and 8).

  • Page 17: Characteristics And Technical Information

    OT-6400 is a Class I medical device. Protection against electric shocks: As a Class I device, the OT-6400 consultation unit provides protection against electric shocks. In addition to the basic insulation, it includes additional safety devices for earthing the conducting parts of the accessible fixed wiring.
  • Page 18 User’s manual OT-6400 Manufacturer's Declaration – Electromagnetic Emissions This device is intended for use in the electromagnetic environment specified below. The customer or user should ensure that it is used in such an environment. (1) Compliant, sport led light OFF and with modifications (2) Compliant, with modifications Manufacturer's Declaration –...

  • Page 19: Technical Specifications

    User’s manual OT-6400 Criterion A: Movement tolerance: +/- 2 mm Rotation tolerance: +/- 3° Criterion B: The appliance may be disturbed during electromagnetic tests, but dangerous situations should not be encountered (cf. Risk Analysis) Criterion C – Allowable loss of capacity: Reset accepted (IEC 61000-4-11) 6.3.
  • Page 20 User’s manual OT-6400 Approximate net weight 250 kg (without appliances or desk) Power supply 230 VAC / 50 Hz / 1500 VA Electrically adjustable height from 75 to 93 cm with memory of the preferred height Tabletop 3 motor-driven instrument shelves and 1 drawer or motor-driven...

  • Page 21: Dimensions

    From 800 to 1060 hPa Under these conditions of use and with appropriate checks and maintenance, the expected service life of the consultation unit is 10 years from installation. 6.4. DIMENSIONS  OT-6400 alon 185 cm 145 cm 186 cm hPa: Hectopascal...
  • Page 22 User’s manual OT-6400  OT-6400 with a large desk 185 cm 310 cm 186 cm  OT-6400 with a small desk 185 cm 281 cm 186 cm Reference: TAB-DOC-08 | V01 – 09-07-2021...
  • Page 23 User’s manual OT-6400 Paris headquarters Lyon establishment   Ecoparc – 9 rue Benjamin Franklin 50 rue Jean Zay 94370 Sucy-en-Brie – FRANCE 69800 SAINT-PRIEST – FRANCE   +33 1 49 80 97 97 +33 4 37 28 18 18 ...
