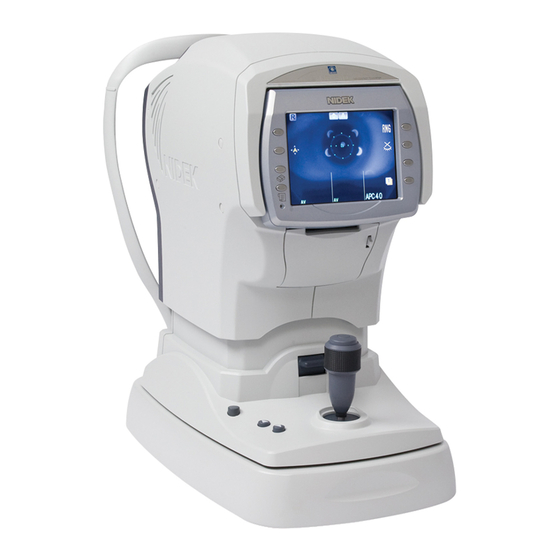

NON CONTACT TONOMETER
NT-510/NT-530/NT-530P
SERVICE MANUAL
June 2013
Pages in total: 254
XNT5P*RDA002E
