PureLink MVS-41 Manual

4k60 4x1 seamless switch/multiviewer/scaling system
Hide thumbs Also See for MVS-41:

Advertisement

Quick Links

Download this manual

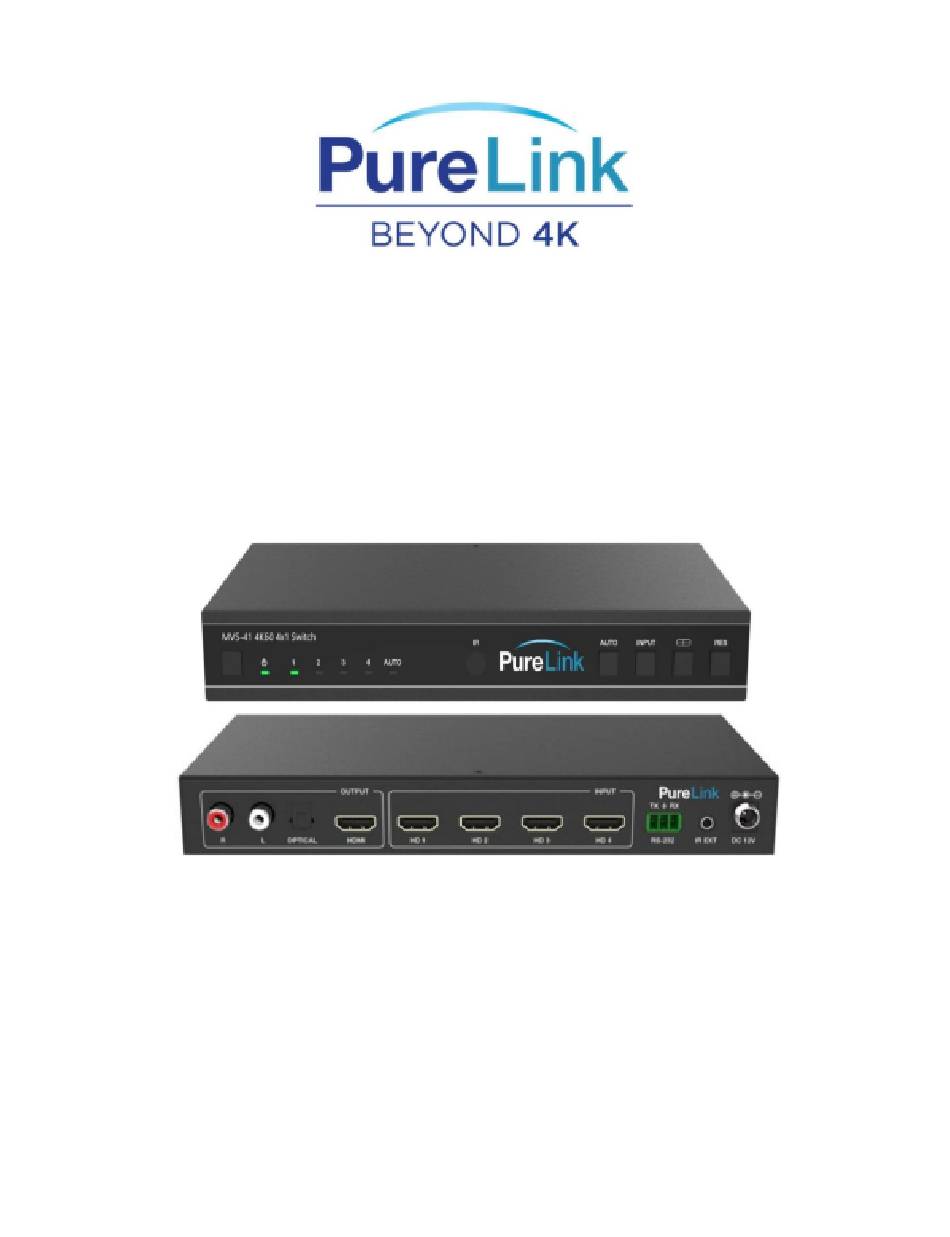

Purelink MVS-41 User Manual V1.3
MVS-41
4K60 4x1 Seamless Switch/Multiviewer/Scaling System
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MVS-41 and is the answer not in the manual?

Questions and answers

Related Manuals for PureLink MVS-41

Summary of Contents for PureLink MVS-41

  • Page 1 Purelink MVS-41 User Manual V1.3 MVS-41 4K60 4x1 Seamless Switch/Multiviewer/Scaling System...

  • Page 2: Table Of Contents

    Contents Introduction ............................. 3 Features ..............................3 Package Contents ............................. 4 Specifications ..............................4 Operation Controls and Functions ......................6 Front Panel ..............................6 Rear Panel ..............................6 IR Remote ..............................8 EDID Settings ............................. 9 Video& Audio ............................19 Multiview..............................10 OSD Menu Navigation..........................10 RS-232 Command ............................11 Warranty..............................17...

  • Page 3: Introduction

    Introduction: The PureLink MVS-41 provides 4x1 switching, multiview, and scaling conversion for two sources on a single screen. The user can easily manage each input and create any layout and position of any of the two inputs on a single monitor. This device supports full range of input video resolutions up to 4K@60 and audio RCA /Optical deembedding supported for external audio distribution systems.

  • Page 4: Package Contents

    Package Contents: • 1 x 4K60 4x1 Multiviewer Seamless UHD Video Switcher • 1 x IR Remote • 1 x 3pin-3.81mm Phoenix Connector (male) • 1 x 38KHz IR Wideband Receiver Cable (1.5 meters) • 2 x Mounting Ears • 4 x Machine Screws (KM3*4) •...
  • Page 5 Connection Input ports 4 x HDMI IN [Type A, 19-pin female] 1 x HDMI OUT [Type A, 19-pin female] 1 x L/R OUTPUT [RCA] Output ports 1 x OPTICAL OUTPUT [S/PDIF] 1 x RS-232 [3pin-3.81mm phoenix connector] 1 x IR EXT [3.5mm Stereo Mini-jack] Control ports Mechanical Housing...

  • Page 6: Operation Controls And Functions

    Operations and Functions: Front Rear Name Function Description Short press this button to power on the device. ▪ Long press this button for 1 seconds to enter the standby mode. Power ▪ button Power The Power LED will light in green when the product is powered on, and red when the product is on standby.
  • Page 7 Multiview display mode switching button. Short press this button to circularly select: Multiview ▪ SINGLE - PIP - PBP (1) - PBP (2) . button Long press this button for 3 seconds to select the aspect ratio for PBP ▪ (1) / PBP (2) Output resolution switching button.

  • Page 8: Ir Remote

    IR Remote ① Power on or Standby: power on the switcher or set it to standby mode. Input: Select Inputs 1 through 4 ② ③ Multiview display mode buttons: select SINGLE - PIP - PBP (1) - PBP (2). Menu Navigation ④...

  • Page 9: Edid Settings

    EDID Settings: Select from the following EDID modes via RS-232 command or OSD menu navigation. EDID Mode EDID Mode 4K60-2.0CH 1920x1200-2.0CH 4K60-5.1CH 1680x1050-2.0CH 4K60-7.1CH 1600x1200-2.0CH 4K30-2.0CH 1440x900-2.0CH 4K30-5.1CH 1360x768-2.0CH 4K30-7.1CH 1280x1024-2.0CH 1080P-2.0CH 1024x768-2.0CH 1080P-5.1CH 720P-2.0CH 1080P-7.1CH AUTO Video & Audio: The switcher provides multiple resolution video input up to 3840x2160@60, and multiple audio formats such as LPCM, AC3, DD+, DTS, DTS- HD, up to 7.1 channel pass through function via HDMI cable.

  • Page 10: Multiview

    Multiview: The switcher has 4 categories of multiview display modes: SINGLE, PIP, PBP (1), PBP (2) Users can select different operations for different Multiview modes as following: SINGLE: Inputs selection PIP: Inputs selection, Sub window size and position selection PBP (1), PBP (2): Inputs selection, Display mode selection, Display aspect selection Multiview window distributions are as following:...

  • Page 11: Rs-232 Command

    Feedback Code System Setting help! List all help! commands r type! Get device r type! MVS-41 model r fw Get Firmware r fw MCU FW version x.xx.xx SCALER FW version x.xx.xx version version version! Power on System Initializing... Initialization Finished! MCU FW version Power on/off x.xx.xx SCALER FW version x.xx.xx...
  • Page 12 Command Code Function Description Example Feedback Output Setting Set Output Resolution (x=1~14) 4096x2160p60, 4096x2160p50, 3840x2160p60, 3840x2160p50, 3840x2160p30, s output res x! s output res 3! out resolution: 3840x2160p60 3840x2160p25, 1920x1200p60RB, 1920x1080p60, 1920x1080p50, 10.1360x768p60, 11.1280x800p60, 12.1280x720p60, 13.1280x720p50, 14. 1024x768p60, r output res! Get output resolution r output res! out resolution: 3840x2160p60...
  • Page 13 Command Code Function Description Example Feedback EDID Setting Set HDMI input EDID mode (x=18) 4K2K60_444,Stereo Audio 4K2K60_444,Dolby/DTS 4K2K60_444,HD Audio 4K2K30_444,Stereo input EDID:4K2K60_444, Audio Stereo Audio 2.0 s input EDID s input EDID 4K2K30_444,Dolby/DTS 4K2K30_444,HD Audio 1080P,Stereo Audio 2.0 1080P,Dolby/DTS 5.1 1080P,HD Audio 7.1 10.1920x1200,Stereo Audio 2.0 11.1680x1050,Stereo...
  • Page 14 s output Increase output audio volume s output output audio volume: 50 audio audio vol+! vol+! s output Decrease output audio volume s output output audio volume: 50 audio vol-! audio vol-! s output Set output audio volume s output output audio volume: 30 audio vol value (x=0~100)
  • Page 15 s multiview x! s multiview 1! single screen Set multi-viewer display mode (x=1~3) single screen r multiview! Get multi-viewer r multiview! single screen display mode s quad mode Set quad windows s quad mode quad mode 1 display mode (x=1~2) Select one input for one display window for the current...
  • Page 16 Set PBP windows display mode (x=1~2) s PBP mode 1! PBP mode 1 s PBP mode x! PBP mode 1 13 / PBP mode 2 r PBP mode! Get PBP windows r PBP mode! PBP mode 1 display mode Set PBP windows display aspect ratio s PBP aspect 1! (x=1~2)

  • Page 17: Warranty

    TERMS & CONDITIONS PureLink shall repair or replace the Product if it develops a material fault during the period of warranty, on condition that i) the Product has only been subject to normal use in a domestic or commercial environment in a manner consistent with its...
