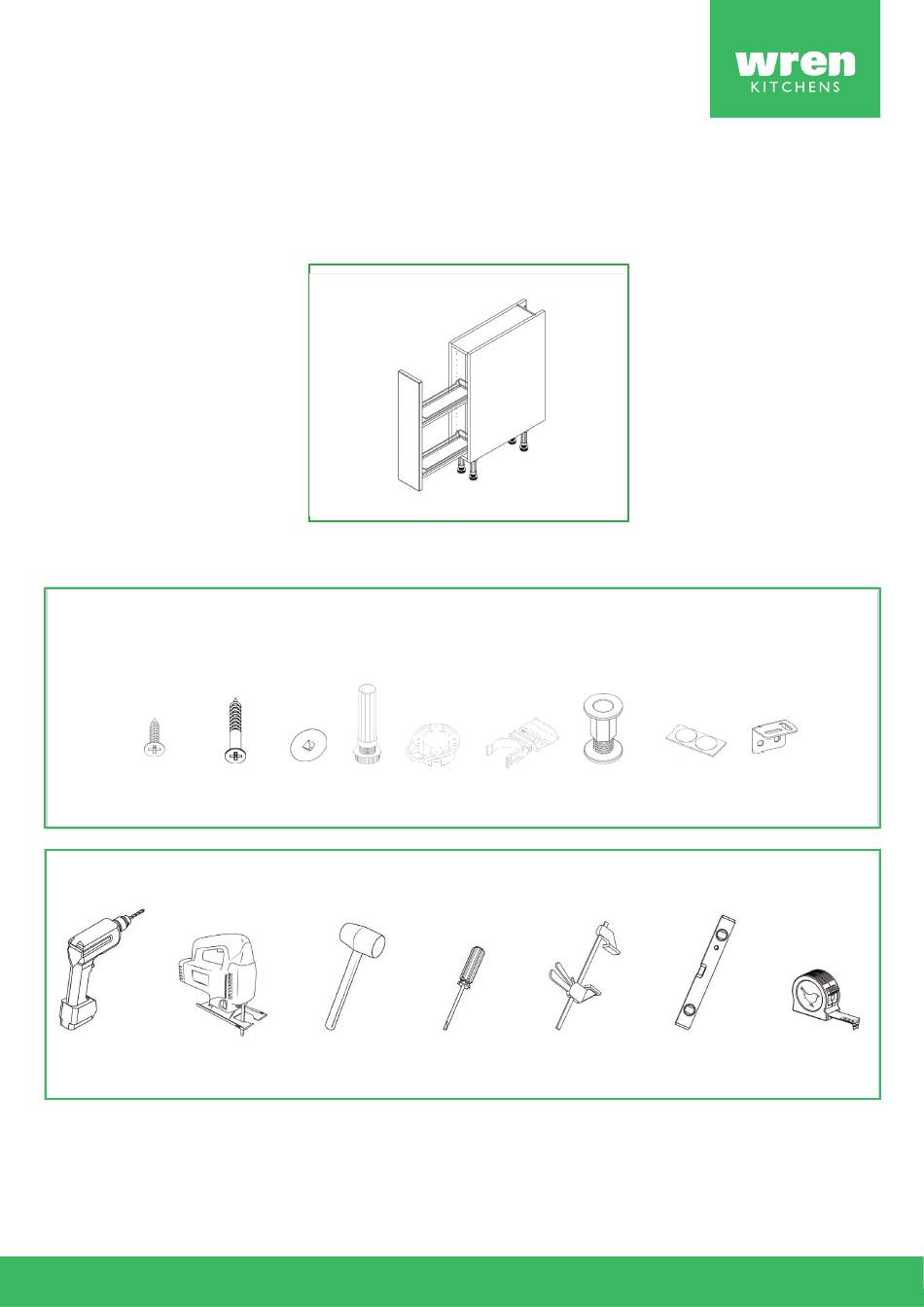

E A S Y - F I T S O F T C L O S E
Base Unit
150 - 300, Base with Base Pull Out (2 Baskets) (Door, Solid Top, 4 Legs) -
Fitting Guide
Unit Parts
32x 15mm
6X 30mm
screws
screws
Tools Required
Drill
Jigsaw
5x Legs
5x Leg
18x Cover
Brackets
Caps
Screwdriver
Mallet
2x Plinth
1x Space
5x Door Buffers
Clips
Plug
Clamp
Spirit Level
2x L-Brackets
Tape Measure
Page 1
Advertisement
Related Manuals for Wren Kitchens Base Unit 150
Summary of Contents for Wren Kitchens Base Unit 150
- Page 1 E A S Y - F I T S O F T C L O S E Base Unit 150 - 300, Base with Base Pull Out (2 Baskets) (Door, Solid Top, 4 Legs) - Fitting Guide Unit Parts 5x Legs 5x Leg 2x Plinth 32x 15mm...
- Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working. This will help keep all items safe from any damages. Any un-needed cardboard or plastic should be flattened down and placed in the bin. A minimum of two people will be needed to lift the unit.
- Page 3 Fixing the leg bases Secure each of the leg brackets into place with 4x15mm screws per bracket. Inserting the legs Push each leg firmly down into the leg bracket. Adjusting each leg to 155mm. Adjust the legs to the correct height by turning clockwise or anti-clockwise.
- Page 4 Lifting the unit into place When lifting the unit into place do not tilt as this can damage the legs. Place the unit against the wall and align it with the wall markings that will have been drawn during the room preparation stage. Use a spirit level to ensure the unit is level from front to back, left to right, and diagonally.
- Page 5 Adding the door buffers Remove the masking tape and position 1x door buffer at the top and bottom corners of the unit, as illustrated in the image. Adjusting the frontal To adjust the frontal, use a screwdriver as required at points 1,2,3,4 and 5. Point 1 -Will adjust the frontals left and right.
- Page 6 Cleaning the unit Finally, the unit should be thoroughly cleaned to remove any debris that may have accumulated during the installation. Store the plinth clips and the remaining 15mm screws. These will be used later when attaching the plinth. Page 6...
