Base Cabinet

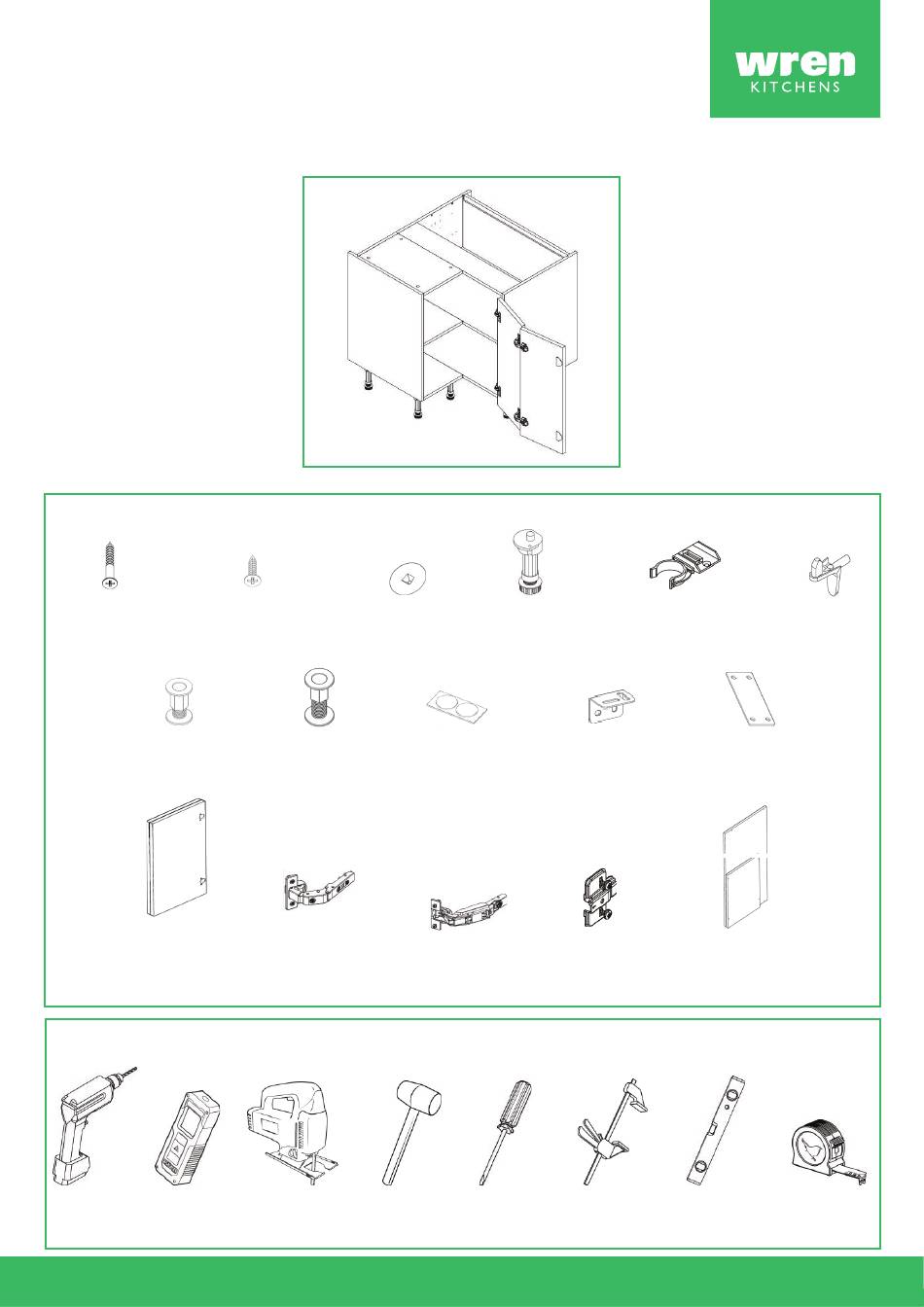

972 L-Shape Folding Door Corner Cabinet (Door, Open Top, 8 Legs)
- Fitting Guide
Parts Required
4x 1 1/4"
Screws
2x
Space Plugs
2x
Frontals
(Packed Separately)
Tools Required
Drill
Stud
Finder
82x 5/8"
18x
Screws
Cover Caps
1x
XL Space Plug
Folding Door
Hinge
Jigsaw
Mallet
8x
Legs
5x
2x
Door Buffers
L-Brackets
170 Hinges
Hinge
Plates
Screwdriver
Clamp
4x
Toe Kick Clips
Shelf Pegs
12x
Fixing Plates
2x
Shelves
Spirit Level
Measure
6x
Tape
Page 1
Advertisement
Related Manuals for Wren Kitchens Base Cabinet
Summary of Contents for Wren Kitchens Base Cabinet
- Page 1 Base Cabinet 972 L-Shape Folding Door Corner Cabinet (Door, Open Top, 8 Legs) - Fitting Guide Parts Required 4x 1 1/4” 82x 5/8” Screws Screws Cover Caps Legs Toe Kick Clips Shelf Pegs Space Plugs XL Space Plug Door Buffers...
- Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear, and tidy when working. This will help keep all items safe from damage. Any waste cardboard or plastic should be flattened down and placed in the trash can. A minimum of two people will be needed to lift the cabinet.
- Page 3 Attaching the cabinets together Install 2x connecting plates across both cabinets, each with 4x 5/8” screws, to join the back of the small cabinet and the side of the large cabinet, ensuring that the fixing plates are separated equally. Cabinet is upside down Securing the legs...
- Page 4 For help on determining the sort of wall you have, please refer to the “Room Preparation Guide.” Locating the studs Using a stud finder, locate the studs where the cabinet will be installed and mark the wall where the cabinet will sit. Lifting the cabinet into place When lifting the cabinet into place, do not tilt, as this can damage the legs.
- Page 5 Drilling the pilot hole Drill a pilot hole through the back rail in line with the wall studs, making sure to lightly mark the wall where the screw should be placed. The hole should be located, as per the diagram, close to the top of the cabinet. Once complete, lift and move the cabinet away from the wall.
- Page 6 Attaching the fixing plates to the shelf Position the shelf pegs into the pre-drilled holes inside the cabinet. Add the 2x fixing plates to the bottom of the large shelf, fix each of the fixing plates with 2x 5/8” screws. Ensuring the fixing plates are evenly spaced.
- Page 7 3 3/4” 5” Attaching hinge mounting plates 3 3/4” Attach the hinge mounting plates onto both 5” of the end panels as shown, using screws 5” 3 3/4” which are already positioned within the hinge plates. 5” 3 3/4” Fixing the hinges to the frontals Position the frontal with 4x cup holes on a protected work surface with the holes facing Insert the folding door hinges and 170˚...
- Page 8 Attaching the frontal Secure the frontal with the 170˚ hinges to the L-corner cabinet, the frontal should be attached to the cabinet by clipping the hinges onto the hinge plates. Secure the second frontal by clipping the folding door hinges to the hinge plate on the frontal.
- Page 9 Adjusting the 170˚ hinge To adjust the 170˚ hinges, use a screwdriver as required at points 1 and 2. Point 1 – Will adjust the frontals left and right. Point 2 – Will adjust the frontals in and out. To move the hinges up and down, loosen the screws A and B.
