Techly IDATA EXT-410P User Manual page 5

4K@60HZ HDMI
EXTENDER POC
INSTALLATION AND CONNECTION
How to make a Cat.5/6 network cable
Follow the standard EIA-568B:
1-Orange/white
2-Orange
3-Green/white
4-Blue

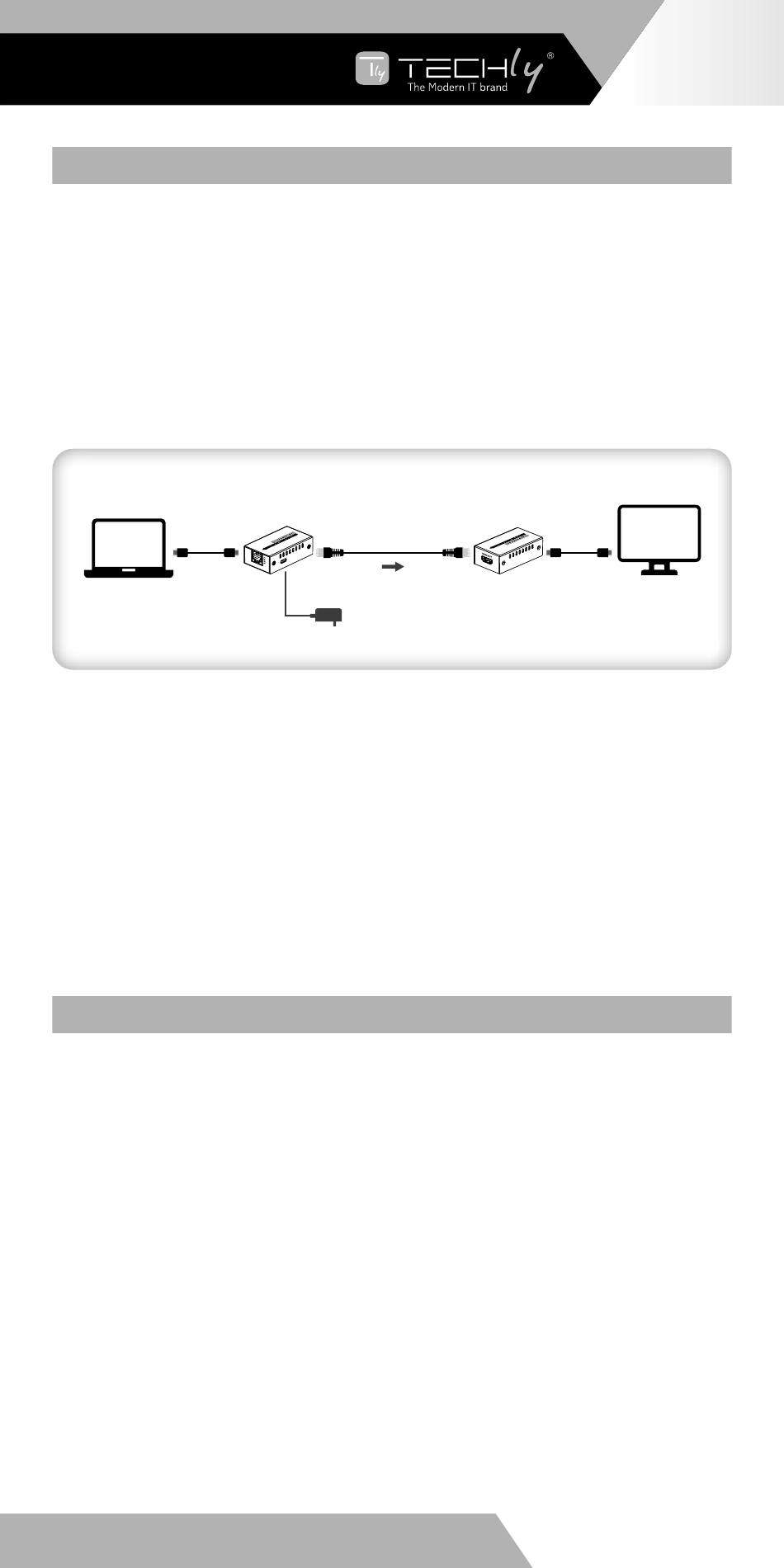

CONNECTIONS
HDMI Cable
Macbook
CONNECTION INSTRUCTIONS
1) Connect the source device to the HDMI IN port of the transmitter
with an HDMI cable and connect the HDMI OUT port of the
receiver to the display device with another HDMI cable.
2) Use a Cat6/6A/7 cable to connect the RJ45 port of the transmitter
and receiver.
3) Plug the power supply into the devices to get started.
Note: It is recommended to use a network cable within a lenght
range of 2-60m. If the lenght of network cable is too long or too
short, the transmission of video signals may not work well.
FAQ
Q: The devices are connected correctly, but why is there no
image displayed?
A: 1) Please make sure the HDMI cable meet the transmission
requirements (e.g. 4K HDMI cable)
2) Please check and make sure the network cable is connected
well.
Q: Why does the display occasionally have a black screen ?
A: 1) Check if the lenght of the cables is within the specific range.
2) Reconnect the network cable or HDMI cables.
Q: Why is the display color abnormal or no sound?
A: 1) Check if the HDMI cables are connected well.
2) Reconnect the network cable.
Transmitter
D C 5V
5-Blue/white
6-Green
7-Brown/white
8-Brown
CAT6 60m
Receiver
EN - 5
HDMI Cable
HDMI Display
