DANGER

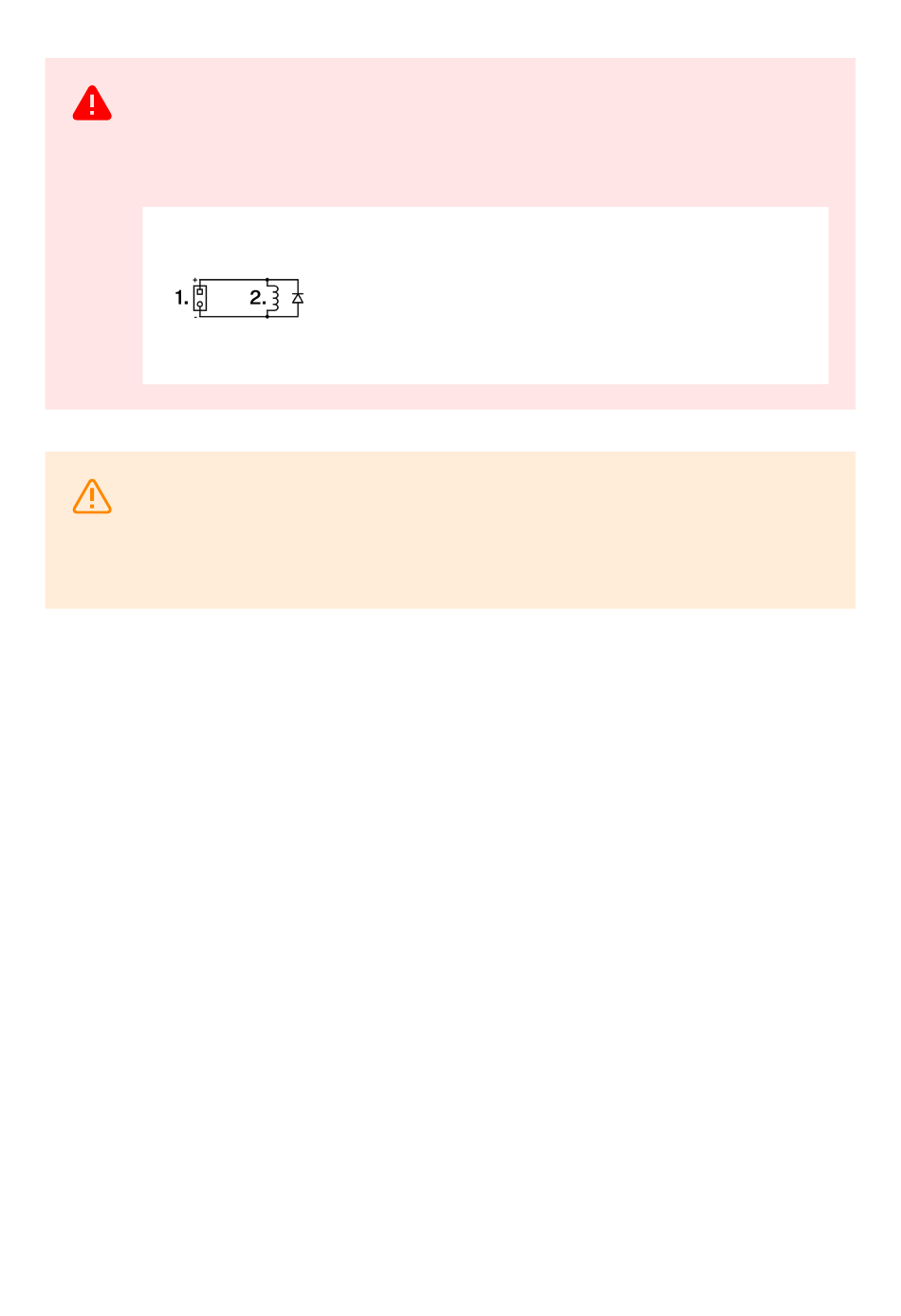

If a coil containing device is connected, e.g. relays/electromagnetic locks, it is necessary to
protect the device output against voltage peak while switching off the induction load. For this
way of protection we recommend a 1 A / 1000 V diode (e.g., 1N4007, 1N5407, 1N5408)
connected antiparallel to the device.
WARNING
The 12V output is used for lock connection. If the device is installed in a location where
there is a danger of unauthorized access (building front, e.g.), we strongly recommend the
use of the 2N Security Relay (9159010, 01386-001) to ensure the maximum installation
security.

Relay Terminal Wiring Diagrams

It is possible to connect a device to the 2N IP Force relay terminals to be controlled by this relay, e.g. an
electric/electromechanical door lock.
The elements are designated as follows in the diagrams below:
1. Device relay
2. Controlled device
Installation
1. Terminals
2. Coil. e.g. relay or electromagnetic lock
