BARRON EXITRONIX VEXCL LED Series Installation Instructions page 3

VEXCL LED Series
Installation Instructions

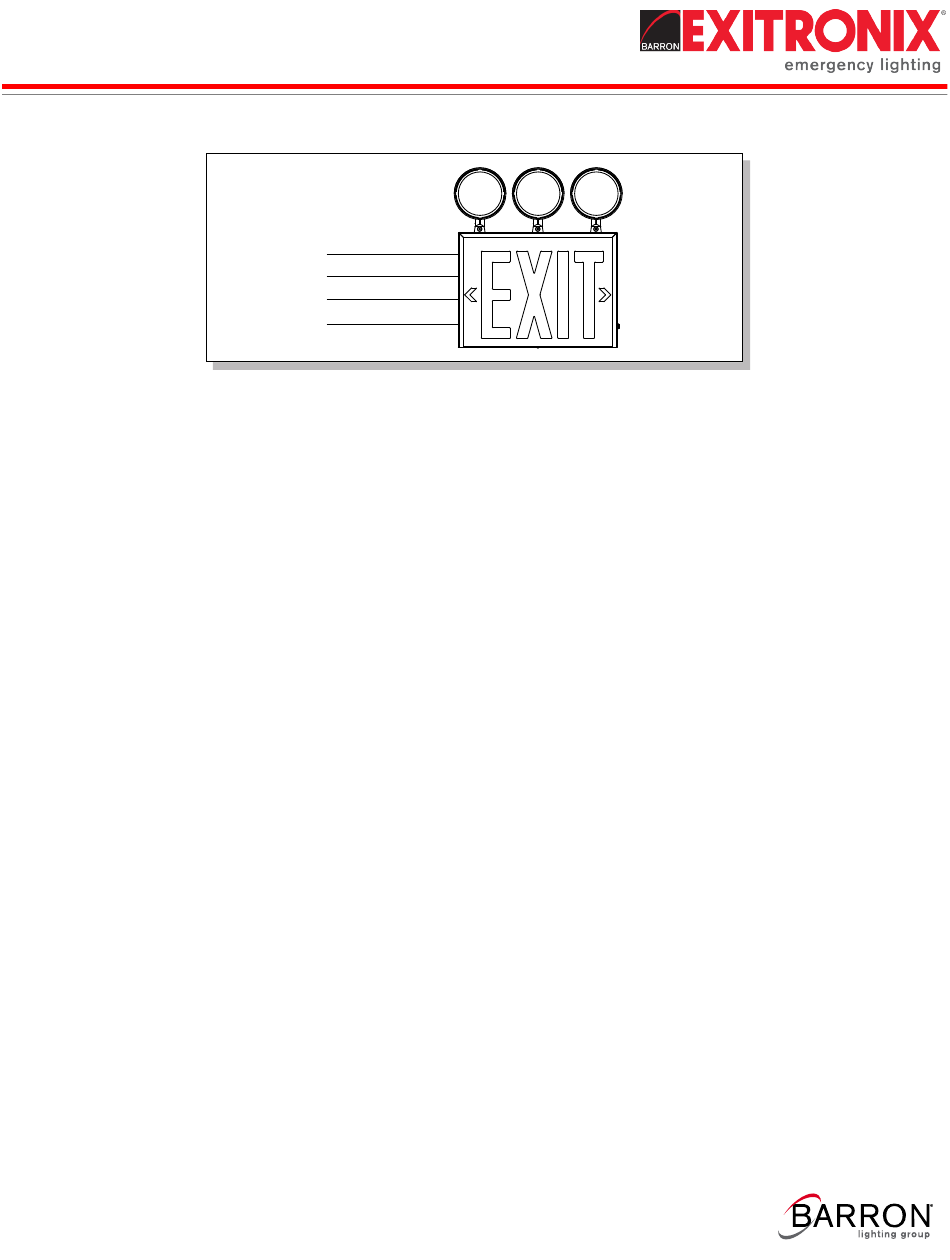

Wiring Diagram (Fig. 5)
Maintenance
The battery has to recharge if the product is kept in stock over 9 months. We recommend that the equipment is tested
regularly in accordance with local codes. Replace the batteries as needed if discharge time does not achieve 90 minutes.
Operation (Standard models)
The battery in this unit may not be fully charged. After electricity is connected to the unit for at least 24 hours, then normal
operation of this unit should take effect. To check, press the "TEST" button. The EXIT sign should stay illuminated by
battery backup and the LED indicator will be turned off. Release the "TEST" button, LED indicator will be turned on.
In accordance with NFPA 101, your emergency lighting system must be tested monthly for a minimum of 30 seconds and
annually for 90 minutes. Refer to your local codes for any additional requirements that may apply.
Trouble Shooting Guide
If LED heads or LED indicator does not illuminate, check the following:
1. Check AC supply - verify that unit has 24 hours AC supply.
2. Check battery connection.
3. Discharge the battery and then charge the battery for 24 hours and retest.
4. If above trouble shooting hints do not solve the problem, contact factory for assistance.
10070348 REV 1 - 04/24
Fig. 5
Orange 277VAC
White NEUTRAL
Black 120VAC
Green Ground
