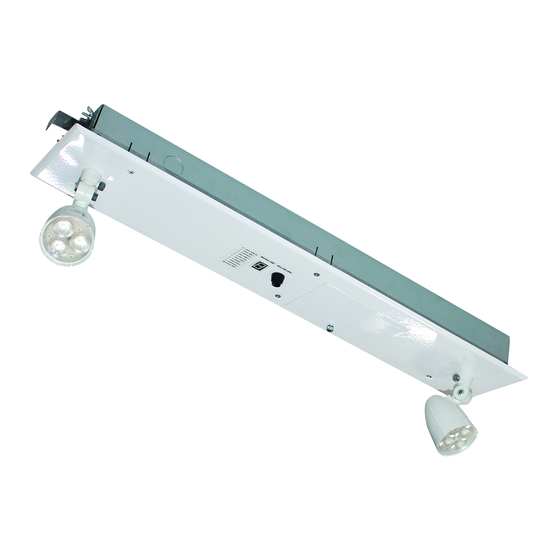

CRL Series
Installation Instructions
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
When using electrical equipment, basic safety precautions should always be followed including the following:
• DISCONNECT AC POWER SUPPLY BEFORE SERVICING.
• Installation and servicing of this equipment should be performed by qualified service personnel only.
• Ensure that the electrical wiring conforms to the National Electrical Code NEC® and local regulations, if
applicable.
• Do not mount near gas or electrical heaters.
• Do not use outdoors.
• Equipment should be mounted in locations and at heights where it will not be readily subjected to tampering by
unauthorized personnel.
• The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
• Any modification or use of non-original components will void the warranty and product liability.
• Do not use this equipment for other than intended use.
• Allow battery to charge for 24 hours before first use.
10070166 REV 7 - 08/22
IMPORTANT SAFEGUARDS
SAVE THESE INSTRUCTIONS!
Technical Support
■ (623) 580-8943 ■ technicalsupport@barronltg.com
1
800-533-3948 www.barronltg.com
Advertisement
Table of Contents
Related Manuals for BARRON EXITRONIX CRL Series
Summary of Contents for BARRON EXITRONIX CRL Series
- Page 1 CRL Series Installation Instructions IMPORTANT SAFEGUARDS READ AND FOLLOW ALL SAFETY INSTRUCTIONS. When using electrical equipment, basic safety precautions should always be followed including the following: • DISCONNECT AC POWER SUPPLY BEFORE SERVICING. • Installation and servicing of this equipment should be performed by qualified service personnel only. •...
- Page 2 CRL Series Installation Instructions Installation 1. Loosen all (4) ceiling bracket wing nuts half way for ease of installation. Hang the fixture on the ceiling T-bars using the ceiling brackets. (Fig. 1) 2. Tighten all ceiling bracket wing nuts to secure the fixture in place. Adjust the slot placement of the ceiling brackets accordingly to adjust the enclosure opening to be level with the inside surface of the T-bar.
- Page 3 CRL Series Installation Instructions Installation, Continued 6. Remove the transformer compartment cover and make electrical connections. Electrical connections should be made inside the transformer compartment. Make electrical connection as follows (Fig. 6): 120VAC 277VAC White - Common White - Common Black - 120VAC Orange - 277VAC Green - Ground...
- Page 4 CRL Series Installation Instructions Self-Test/Self-Diagnostics (G2) with LED Indicator I M P O R T A N T: Once all emergency lamps have been connected to the unit equipment, apply normal AC power and charge for 48 hours. For units equipped with G2 and the tri-color LED indicator: Following installation and after AC power has been supplied, charge for 48 hours, then press and hold the test button until the LED indicator turns orange.
- Page 5 CRL Series Installation Instructions Self-Test/Self-Diagnostics (G2) with Numeric Display I M P O R T A N T: Once all emergency lamps have been connected to the unit equipment, apply normal AC power and charge for 48 hours. CAUTION: This equipment provides reduced current levels when higher voltage loads are connected. The derangement signal requires calibration to ensure proper operation.
