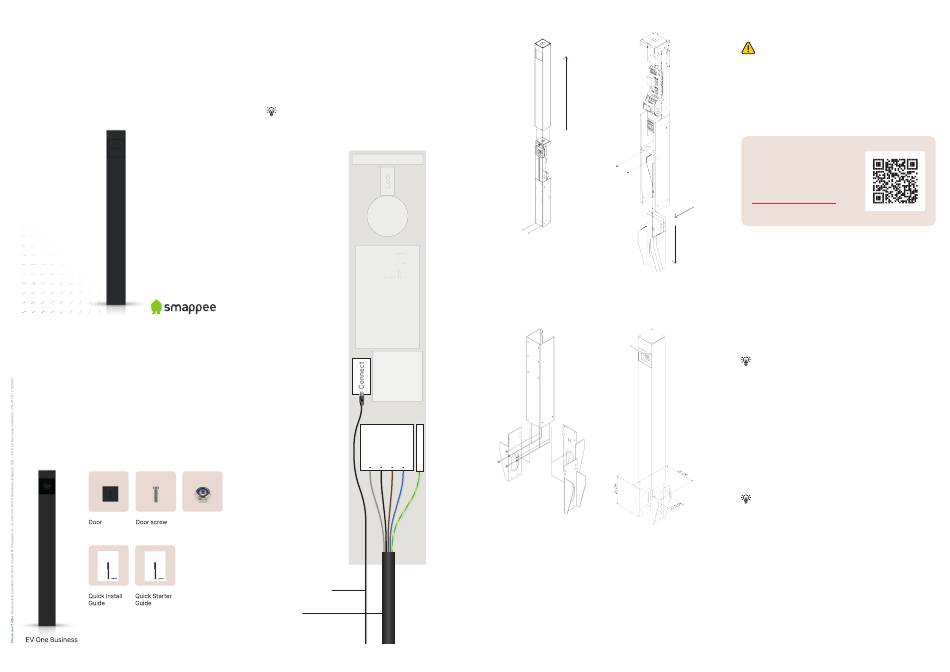

Smappee EV One Business Quick Install Manual

Smappee
EV One Business
Quick install guide
What's in the box?
2x
Anchor nuts
Smappee Smappee
EV One Home EV One Home
Quick Install Guide QuickS tarter Guide
Smappee
EV One Business
Connection guide
In case of 3-phase delta (3 x 230 V),
consult the full manual at
smappee.com/downloads
RFID reader
Socket
B
Relay board
meter
RCD
L3 L2
4x
Network cable
Power
supply cable
1.
A+B
B A
3.
MID
PE
L1 N
EN
2.
Safety warning
Carrying out electrical work within the home or
workplace can be dangerous and must be conducted
according to the appropriate national safety
standards and executed by a certified electrician.
For safety purposes, it is also necessary to power off
the installation before proceeding with the physical
installation.
Read the installation manual
carefully before proceeding
as it contains all the safety
and installation instructions.
This manual is available at
smappee.com/downloads
or via the QR code.
Prepare the installation
A stable and level ground needs to be prepared in advance and
there must be one power supply cable and one network cable. The
surface of the ground must be solid to allow the usage of concrete
anchors and avoid moisture seepage from the soil. The supplied
anchor or a floorplate must be used to attach the EV One.
Installation and configuration
1. Optional: install Smappee Infinity in the distribution panel.
4.
Consult the Infinity installation manual at
smappee.com/downloads.
Smart Charging functionality requires the installation of
Smappee Infinity to measure the grid and solar production.
2. Take the EV One out of its packaging. Unscrew the two bottom
screws and slide the outer housing upwards, off the internal
structure. Take the anchor (if used) out and assemble the
anchor onto the main unit as shown in the diagrams. If desired,
the top half of the EV One can be temporarily removed and set
aside.
3. Place the anchor (if applicable) in the ground. Route the power
supply and network cable through the anchor and into the
EV One. Make sure it is level and the bottom of the EV One will
be flush with the ground level. Fill the hole with concrete.
4. Connect the power supply cable according to the connection
diagram. Connect the network cable to the Smappee Connect
inside the EV One.
In case of 3-phase delta (3 x 230 V),
please consult the full manual online.
5. Switch on the power using the circuit breaker.
6. Download the Smappee App and follow the instructions to
configure your Smappee charging station.
7. Once Smappee Connect shows a green pulsing light, validate
the installation by verifying that the real-time bubbles show
correctly measured values in the Smappee App/Dashboard.
8. Slide the housing onto the EV One and tighten the screws.
Attach the door.
9. Use the Smappee App to send an invite to your customer's
email address to share the newly created location with them.
This user account will be used for the Smappee App and
Dashboard and to set smart charging preferences. Lastly, hand
over the Quick Starter Guide.
