Smappee
EV One
Business
Installation manual
English – 3.01 – February 2025

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV One Business and is the answer not in the manual?

Questions and answers

Related Manuals for Smappee EV One Business

Summary of Contents for Smappee EV One Business

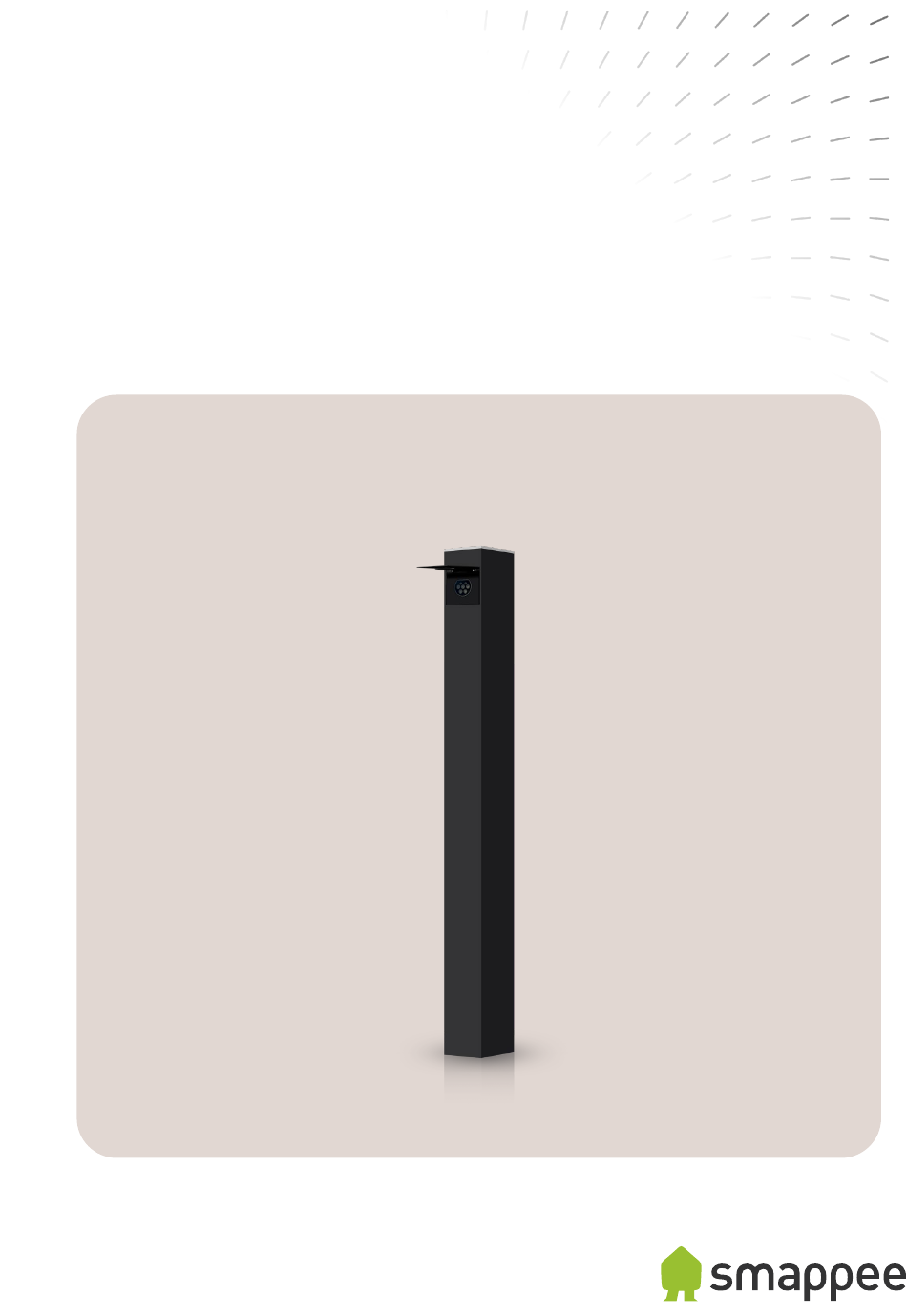

  • Page 1 Smappee EV One Business Installation manual English – 3.01 – February 2025...
  • Page 2 The specifications and other information in this document were verified to be accurate and complete at the time of its publication. Due to ongoing product improvement, this information is subject to change at any time without prior notice. For the latest information, see our online documentation: smappee.com/downloads...

  • Page 3: Table Of Contents

    Table of contents Introduction............................4 Safety instructions ........................... 5 Overview of the EV One Business ....................7 Preparing the installation ....................... 14 Installation and activation ......................21 Annexes ..............................32 EV One Business – Installation manual – English...

  • Page 4: Introduction

    Thank you for purchasing this EV One charging station for electric vehicles, the smartest charging station. This installation manual tells you how to install the EV One Business. We recommend that you read the contents of this manual carefully, to ensure a safe and proper installation and enable to use all the advanced features of this product to the full.

  • Page 5: Safety Instructions

    Do not immerse the charging station in water or any other liquids. • Do not expose the charging station to heat, flame or extreme cold. Do not attempt to open, repair, or service any parts. Contact Smappee or your service partner for • further information.

  • Page 6: Maintenance

    • incurred will be accepted if the charging station is transported in non-standard packaging. Store the charging station in a dry environment within the temperature range specified in the • technical specifications. EV One Business – Installation manual – English...

  • Page 7: Overview Of The Ev One Business

    Article no. Description EVOB-332-B-E-B 5425036934061 EV One Business 3-Phase 22 kW Accessories (not included) Article no. Description FLOOR-PLATE-TUBE120 5425036934719 Floor plate for EV One or Pay Station 120 mm x 120 mm EV One Business – Installation manual – English...

  • Page 8: What's In The Box

    Image 1: Content of the box with the charger Quantity Description EV One Business with anchor components Door Door screw Nuts for the anchor Quick Install Guide Quick Starter Guide with Smart Charge card and QR code label EV One Business – Installation manual – English...
  • Page 9 3.4 Identification label of the EV One Position of the identification label of the EV One The identification label of your charging station is located on the rear of the door. Image 3: Position of the identification label EV One Business – Installation manual – English...
  • Page 10 Identification label of the EV One Image 4: Identification label Description Manufacturer Article number Rating Operating temperature Manufacturing date QR code to scan during configuration of the charging station Ingress protection rating Waste disposal symbol Serial number EV One Business – Installation manual – English...

  • Page 11: Technical Specifications

    Rated conditional short-circuit 6 kA current (I EMC classification Class B 1 Caution: not all electric vehicles support the IT system. For 3 x 230 V charging, a voltage transformer might be necessary. EV One Business – Installation manual – English...
  • Page 12 This stabilises the internal temperature and makes it less likely that a charging session will be unexpectedly paused. EV One Business – Installation manual – English...
  • Page 13 Where products are exposed to the elements of nature, the enclosure can be subject to gradual aging of the material, which can result in product discolouration over time. Therefore, wherever possible, place the product in a sheltered place to optimise the life of the materials. EV One Business – Installation manual – English...

  • Page 14: Preparing The Installation

    NOTE For more information, refer to the Smappee Academy. The first step is to prepare the physical installation of the EV One Business as described in this chapter. 4.1 Installation prerequisites • Obtain all necessary permits from the relevant local authorities.
  • Page 15 Wi-Fi extender if the signal is weak or absent Network cable and RJ45 connectors, minimum Cat 5 depending on the environment, if using • wired internet connection • Ferrules, when using stranded power supply cables EV One Business – Installation manual – English...
  • Page 16 Image 6: Example of a solid foundation (C), with cables (D) in a flexible conduit system (E) 3. Fill foundation hole with concrete. Wait for the concrete to cure before going to the next steps. EV One Business – Installation manual – English...
  • Page 17 2. Unscrew the two bottom screws at the front that hold the outer housing. Make sure to keep the screws for later closure of the EV One. Image 7: Front view on the EV One 3. Slide the outer housing upwards, of the internal structure. EV One Business – Installation manual – English...
  • Page 18 5. Remove the top part of the EV One and set it aside in a safe location. No wires need to be disconnected, nor components removed. As a result, the EV One is prepared for the next steps. EV One Business – Installation manual – English...
  • Page 19 3. Attach the two components (2) to the left and right of the inner structure (3). There is no specified left or right component. As a result, the anchor is ready for installation. EV One Business – Installation manual – English...
  • Page 20 Use two magnetic spirit levels to easily adjust the angle of the anchor. • Use concrete with very fast hardening to keep the angle of the anchor. Wait for the concrete to cure before going to the next steps. EV One Business – Installation manual – English...

  • Page 21: Installation And Activation

    5 Installation and activation This procedure describes the required steps for the physical installation of the EV One Business. CAUTION The installation must be carried out by a qualified professional who has read this manual and works in compliance with local and national standards. Neglecting this may lead to severe injuries or hazardous situations while working with electricity.
  • Page 22 Install the anchor of the EV One (page 20) • Instructions Attach the top part to the bottom part. Make sure to use the fasteners. Image 12: Rear view on the EV One EV One Business – Installation manual – English...
  • Page 23 Route the power supply cable and the network cable through the central opening of the floorplate. Context Image 13: View on the quick install guide EV One Business – Installation manual – English...
  • Page 24 The nuts are supplied with the EV One, refer to What’s in the box (page 8). Tighten the nuts to 5 Nm with an 8 mm socket. As a result, the structure is locked to the floorplate. EV One Business – Installation manual – English...
  • Page 25 Put the blue conductor, if applicable, in the corresponding connection point for the neutral (N) • of the residual current device. NOTE For a 3 x 230 V with a transformer, the neutral wire comes from the transformer. EV One Business – Installation manual – English...
  • Page 26 4. Make sure that the residual current device is set to the on position. The on position is shown in Image 15. As a result, the EV One is almost ready for power. EV One Business – Installation manual – English...
  • Page 27 2. Cut the network cable to the necessary length. 3. Attach the RJ45 connector (not supplied). 4. Put the connector in the RJ45 port of the Smappee Connect. Image 17: View on the RJ45 port EV One Business – Installation manual – English...
  • Page 28 Display is lighting up 1 x Smappee Connect Blue flashing, 1 time per second For more information, refer to the annex Colour code explanation (page 34). 7. Stop the power supply to the EV One. EV One Business – Installation manual – English...
  • Page 29 1. Open the Smappee App. Login to the Smappee App with your partner user account. 2. For the installation of the first Smappee product, go to House > + button > I want to install a Smappee charging station. For the addition of an EV One to an existing Smappee location, go to Settings and then: For a first installation to this location: Install a Smappee EV Line charging station •...
  • Page 30 3. Attach the door to protect the socket with the provided screws. Place the door in a horizontal position for easiest access to mount the screws. Verify the door can move without friction. Image 20: View on the door screws EV One Business – Installation manual – English...
  • Page 31 Image 21: View on the location of the QR code label Post-requisites 1. Go in the Smappee App via Settings > Charging stations. 2. Select the configured EV One and push the Include QR-stickers button. EV One Business – Installation manual – English...

  • Page 32: Annexes

    2 and phase 3 by doing the following: During the installation you can do the physical phase rotation. • During the configuration with the Smappee App you need to set the phase mapping • Example of phase rotation When you have an EV Wall and an EV One, connect the power supply as indicated with the bold Xs.

  • Page 33: Declaration Of Conformity

    Declaration of conformity EV One Business – Installation manual – English...
  • Page 34 Colour code explanation Status of the Smappee Connect This status is relevant during the configuration and use of the charging station. Image 22: Position of the LED on the Smappee Connect Colour Status Meaning More information Blue continuous Starting up The Connect is starting up.
  • Page 35 Status of the charging station This status is relevant during the use of the charging station. Image 23: Position of the RFID reader with LED on the EV One EV One Business – Installation manual – English...
  • Page 36 This is informative, no action required. is waiting to charge or paused by an overload Green continuous EV is charged Disconnect the charging cable and put it safely back in the storage place. EV One Business – Installation manual – English...

  • Page 37: Maintenance Schedule

    Cleaning is optional and does not affect the operation of the charging station. For aesthetic reasons, you may wipe the unit with a dry, clean cloth. Do not use water jets, solvents, or abrasive materials. EV One Business – Installation manual – English...
