Smappee EV Wall Business Installation Manual

Hide thumbs Also See for EV Wall Business:
Table of Contents

Advertisement

Quick Links

Download this manual
Smappee
EV Wall
Business
Installation manual
English – 3.01 – February 2025

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV Wall Business and is the answer not in the manual?

Questions and answers

Related Manuals for Smappee EV Wall Business

Summary of Contents for Smappee EV Wall Business

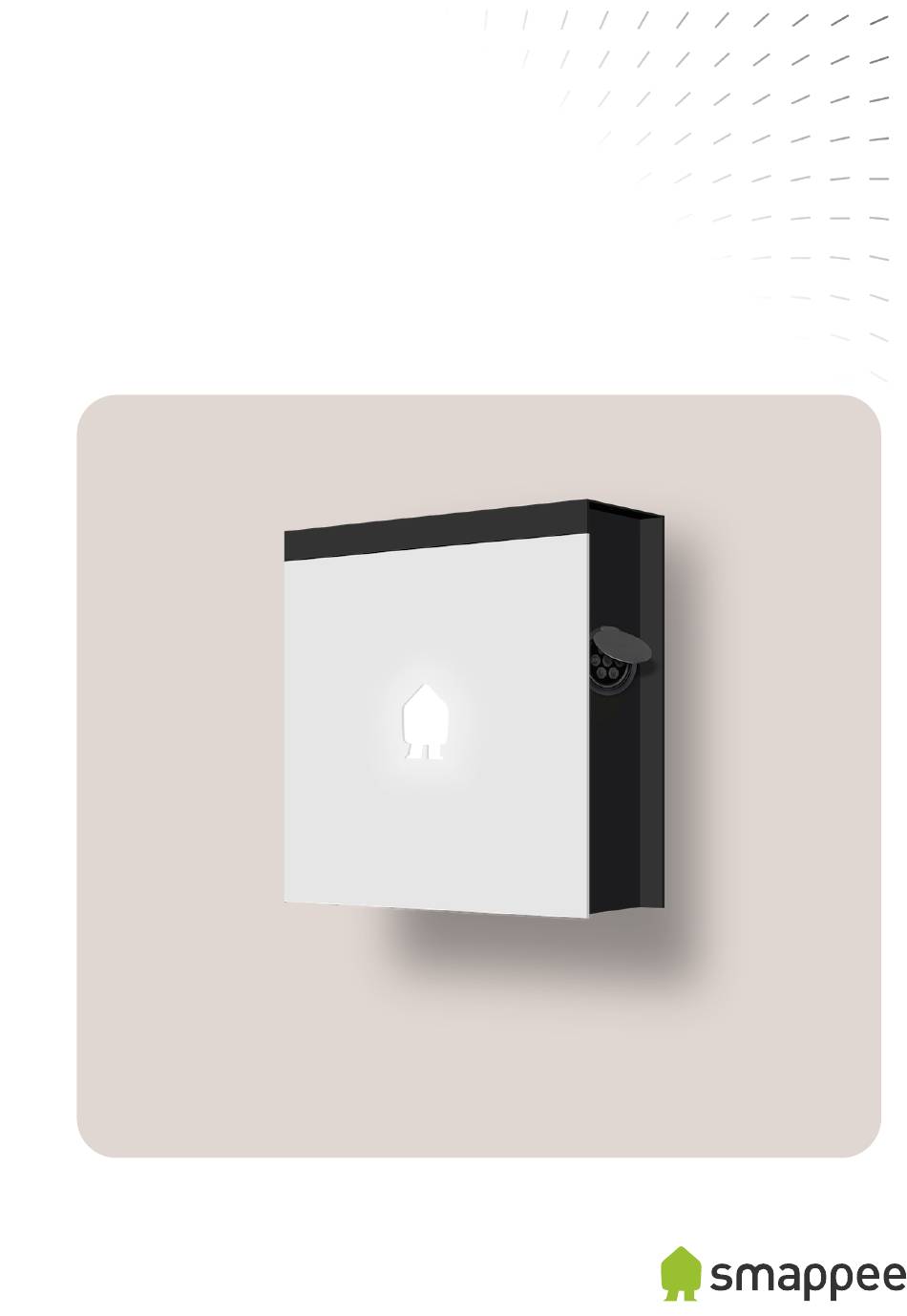

  • Page 1 Smappee EV Wall Business Installation manual English – 3.01 – February 2025...
  • Page 2 The specifications and other information in this document were verified to be accurate and complete at the time of its publication. Due to ongoing product improvement, this information is subject to change at any time without prior notice. For the latest information, see our online documentation: smappee.com/downloads...

  • Page 3: Table Of Contents

    Table of contents Introduction............................4 Safety instructions ........................... 5 Overview of the EV Wall Business ....................7 Preparing the installation ....................... 15 Installation and activation ......................19 Annexes ..............................30 EV Wall Business – Installation manual – English...

  • Page 4: Introduction

    Thank you for purchasing this EV Wall charging station for electric vehicles, the smartest charging station. This installation manual tells you how to install the EV Wall Business. We recommend that you read the contents of this manual carefully, to ensure a safe and proper installation and enable to use all the advanced features of this product to the full.

  • Page 5: Safety Instructions

    Do not immerse the charging station in water or any other liquids. • Do not expose the charging station to heat, flame or extreme cold. Do not attempt to open, repair, or service any parts. Contact Smappee or your service partner for • further information.

  • Page 6: Maintenance

    • incurred will be accepted if the charging station is transported in non-standard packaging. Store the charging station in a dry environment within the temperature range specified in the • technical specifications. EV Wall Business – Installation manual – English...

  • Page 7: Overview Of The Ev Wall Business

    5425036932746 EV Wall Business 3-Phase 22 kW Socket with shutter EVWB-332-C8R-E-W 5425036932234 EV Wall Business 3-Phase 22 kW Type 2 cable 8m with cable holder EVWB-332-C8R-E-B 5425036932241 EV Wall Business Black 3-Phase 22 kW Type 2 cable 8m with cable holder 3.2 What’s in the boxes...
  • Page 8 EV Wall mounting plate Screw and plug (Ø 6 mm x 50 mm) Small screw (M4 x 6 mm) Quick Install Guide Quick Starter Guide with Smart Charge Card and QR code label EV Wall Business – Installation manual – English...
  • Page 9 Image 2: Content of the box with the charging cable Quantity Description Charging cable Cable holder Screw and plug (Ø 6 mm x 50 mm) M32 cable gland Cable tie for strain relief EV Wall Business – Installation manual – English...
  • Page 10 3.4 Identification label of the EV Wall Position of the identification label of the EV Wall The identification label is on the bottom of the charging station. Image 4: Position of the identification label EV Wall Business – Installation manual – English...
  • Page 11 Image 5: Identification label Description Manufacturer Article number Electrical rating Operating temperature Manufacturing date QR code to scan during configuration of the charging station Ingress protection rating Serial number EAN-code Waste disposal symbol EV Wall Business – Installation manual – English...

  • Page 12: Technical Specifications

    1 The variant EVWB-332-BSR-E-W manufactured before January 31, 2025, has only a 6 mA DC residual current monitor. It needs a 30 mA residual current device Type A or B (according to local regulations). 2 Caution: not all electric vehicles support the IT system. For 3 x 230 V charging, a voltage transformer might be necessary. EV Wall Business – Installation manual – English...
  • Page 13 -25 °C to 40 °C Storage temperature -25 °C to 60 °C Relative humidity 0 % to 95 %, non-condensing Maximum installation altitude 0 – 2000 m Access Locations with restricted and non-restricted access EV Wall Business – Installation manual – English...
  • Page 14 Where products are exposed to the elements of nature, the enclosure can be subject to gradual aging of the material, which can result in product discolouration over time. Therefore, wherever possible, place the product in a sheltered place to optimise the life of the materials. EV Wall Business – Installation manual – English...

  • Page 15: Preparing The Installation

    NOTE For more information, refer to the Smappee Academy. The first step is to prepare the physical installation of the EV Wall Business as described in this chapter. 4.1 Installation prerequisites • Obtain all necessary permits from the relevant local authorities.
  • Page 16 Network cable and RJ45 connectors, minimum Cat 5 depending on the environment, if using • wired internet connection Ferrules, when using stranded power supply cables or decreasing the length of the charging • cable EV Wall Business – Installation manual – English...
  • Page 17 Put the plate in a safe location where it cannot be scratched or damaged. Put the nuts on the threaded rods to avoid losing them. As a result, the EV Wall is prepared for the next steps. EV Wall Business – Installation manual – English...
  • Page 18 3. Drill three holes of 10 mm diameter through the slots to a depth of 50 mm. 4. Insert the supplied wall plugs into the holes. 5. Attach the mounting plate, with the 3 bulges facing the wall, with the supplied screws. EV Wall Business – Installation manual – English...

  • Page 19: Installation And Activation

    CAUTION Adaptors or conversion adaptors and cord extension sets are not allowed to be used. This procedure describes the required steps for the physical installation of the EV Wall Business. Attach the EV Wall (page 20) 2. Connect the power supply of the EV Wall (page 21) 3.
  • Page 20 Instructions Proceed as follows. Position the EV Wall in front of the mounting plate. 2. Attach the EV Wall to the mounting plate. Use the three M4 x 6 mm hex screws. EV Wall Business – Installation manual – English...
  • Page 21 Put the blue conductor, if applicable, in the corresponding connection point for the neutral (N) of the residual current device. NOTE For a 3 x 230 V with a transformer, the neutral wire comes from the transformer. EV Wall Business – Installation manual – English...
  • Page 22 4. Make sure that the residual current device is set to the on position. The on position is shown in Image 9. As a result, the EV Wall is almost ready for power. EV Wall Business – Installation manual – English...
  • Page 23 Do not forget to connect the CP data wire of the charging cable to the CP terminal. 6. For strain relief, put the supplied cable tie around the charging cable. Tighten it just after the cable gland on the inside of the charging station. EV Wall Business – Installation manual – English...
  • Page 24 3. Drill two holes of 10 mm diameter through the slots to a depth of 50 mm. 4. Insert the supplied wall plugs into the holes. 5. Attach the cable holder to the wall with the supplied screws. EV Wall Business – Installation manual – English...
  • Page 25 2. Cut the network cable to the necessary length. 3. Attach the RJ45 connector (not supplied). 4. Put the connector in the RJ45 port of the Smappee Connect. Image 12: View on the RJ45 port 5. Tighten the cable gland.

  • Page 26: Install The Front Plate

    Make sure no tools are in the charging station and people stand free from the charging station. Context The front plate has a PCB with RFID reader and LED for the Smappee Avatar. Image 13: View on the 12-pin cable Instructions Remove the nuts from the threaded rods of the front plate.
  • Page 27 Open the Smappee App. Login to the Smappee App with your partner user account. 2. For the installation of the first Smappee product, go to House > + button > I want to install a Smappee charging station. For the addition of an EV Wall to an existing Smappee location, go to Settings and then: For a first installation to this location: Install a Smappee EV Line charging station •...
  • Page 28 Put the M4 nuts on the threaded rods and tighten them. Image 15: View on the inner nuts As a result, the EV Wall is ready for use. For more information, refer to the annex Status of the charging station (page 33). EV Wall Business – Installation manual – English...
  • Page 29 Image 16: View on the location of the QR code label Post-requisites Go in the Smappee App via Settings > Charging stations. 2. Select the configured EV Wall and push Include QR-stickers. EV Wall Business – Installation manual – English...

  • Page 30: Annexes

    2 and phase 3 by doing the following: During the installation you can do the physical phase rotation. • During the configuration with the Smappee App you need to set the phase mapping • Example of phase rotation When you have an EV Wall and an EV One, connect the power supply as indicated with the bold Xs.

  • Page 31: Declaration Of Conformity

    Declaration of conformity EV Wall Business – Installation manual – English...
  • Page 32 Colour code explanation Status of the Smappee Connect This status is relevant during the configuration and use of the charging station. Image 17: Position of the LED on the Smappee Connect Colour Status Meaning More information Blue continuous Starting up The Connect is starting up.
  • Page 33 This is informative, no action required. is waiting to charge or paused by an overload Green continuous EV is charged Disconnect the charging cable and put it safely back in the storage place. EV Wall Business – Installation manual – English...

  • Page 34: Maintenance Schedule

    Cleaning is optional and does not affect the operation of the charging station. For aesthetic reasons, you may wipe the unit with a dry, clean cloth. Do not use water jets, solvents, or abrasive materials. EV Wall Business – Installation manual – English...
