SMAY KWP-P Technical Documentation Manual

Smoke control damper -rectangular
Hide thumbs Also See for KWP-P:
Table of Contents

Advertisement

Quick Links

Download this manual
KWP-P
a
Smoke control
damper
-
rectangular
https:
//
www.smay.eu
Technical
Documentation
Page 0 of 41

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KWP-P and is the answer not in the manual?

Questions and answers

Related Manuals for SMAY KWP-P

Summary of Contents for SMAY KWP-P

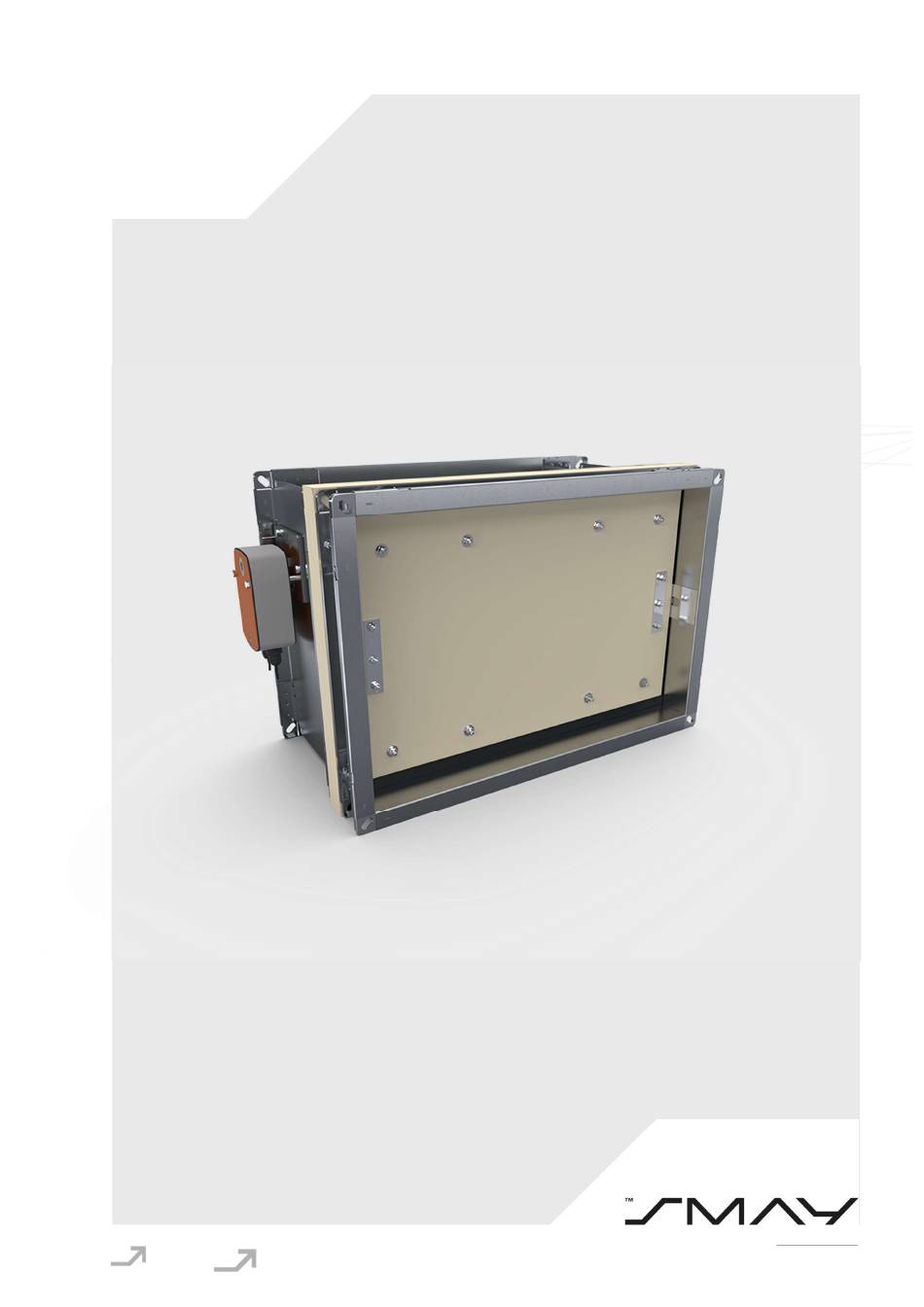

  • Page 1 KWP-P Technical Smoke control damper Documentation rectangular https: Page 0 of 41 www.smay.eu...
  • Page 2 Technical documentation KWP-P-E 1488 SMAY Sp. z o.o. CSWU:1488-CPR-0437/W DWU: 001-CPR-2014 EN 12101-8:2011 Multi-zone smoke control damper type: KWP-P-E Nominal activation conditions/sensitivity: Automatic starting - Pass Closing/opening during the test at the right time Response time/Closure time: Automatic starting - Pass Reliability: 10 000 cycles.<120S...

  • Page 3: Table Of Contents

    Technical documentation KWP-P-E Version 6.25 SMAY reserves the right to make changes to this document. TABLE OF CONTENT INTRODUCTION ..................3 LEGAL REGULATIONS ................. 3 INTENDED USE..................3 TECHNICAL DESCRIPTION ................4 BELIMO ELECTRIC ACTUATORS USED IN KWP-P-E ......... 7 CONDITIONS OF TRANSPORT AND STORAGE ..........

  • Page 4: Introduction

    Maximum overpressure in supply ventilation systems, included in the fire ventilation systems provided with a KWP-P-E is 500 Pa, while the maximum operating negative pressure in fire ventilation systems is 1500 Pa. KWP-P-E smoke control dampers are classified in the following fire resistance range and can be mounted in the following building partitions: ...

  • Page 5: Technical Description

    KWP-P-E damper is equipped with an electric actuator of the BEN, BLE, BEE or BE series from BELIMO, which constitutes a system Damper drive with a supply voltage of AC 230 V or AC/DC 24 V. After voltage is supplied, the actuator rotates the baffle into the open position.
  • Page 6 Technical documentation KWP-P-E Table 2. Type series of damper dimension KWP-P-E Width B [mm] KWP-P 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 0,027 0,035 0,042 0,049 0,056 0,064 0,071 0,078 0,085 0,093 0,100 0,107 0,114 0,122 0,129 0,136 0,143 0,151 0,158 0,165 0,172 0,180 0,187 0,194 0,201 0,209 0,216...
  • Page 7 Technical documentation KWP-P-E Figure 1. KWP-P-E damper Version 6.25 Page 6 of 41 Date of editing: 27.06.2024r...

  • Page 8: Belimo Electric Actuators Used In Kwp-P-E

    1400 65,3 72,8 80,1 87,5 96,2 103,6 1500 69,0 76,9 84,7 92,5 101,5 109,3 BELIMO ELECTRIC ACTUATORS USED IN KWP-P-E Actuator BEN series:  BEN230,  BEN24,  BEN24-ST. where: ST - connection plug Actuator BEE series:  BEE230, ...
  • Page 9 Technical documentation KWP-P-E Wiring diagram BEN230, BEE230 and BE230: BEN230: BEE230: BE230: Version 6.25 Page 8 of 41 Date of editing: 27.06.2024r...
  • Page 10 Technical documentation KWP-P-E Wiring diagram BEN24, BEE24 and BE24: BEN24: BEE24: BE24: Version 6.25 Page 9 of 41 Date of editing: 27.06.2024r...
  • Page 11 Wiring diagram BEN24-ST, BEE24-ST and BE24-ST: BEN24-ST: BEE24-ST: BE24-ST: Page 10 of 41...
  • Page 12 Technical documentation KWP-P Technical data: BEN230 BEN24 (-ST) Wersja 6.25 Strona 11 z 41 Data edycji: 27.06.2024r.
  • Page 13 Technical documentation KWP-P Technical data: BEE230 BEE24 (-ST) Wersja 6.25 Strona 12 z 41 Data edycji: 27.06.2024r.
  • Page 14 Technical documentation KWP-P Technical data: BE230 BE24 (-ST) Wersja 6.25 Strona 13 z 41 Data edycji: 27.06.2024r.

  • Page 15: Conditions Of Transport And Storage

    KWP-P CONDITIONS OF TRANSPORT AND STORAGE Smoke control dampers KWP-P-E should be stored in cardboard boxes and/or on pallets. Dampers should have a pre- protected actuator cardboard box. Smoke control dampers should be stored indoors, providing protection against atmospheric agents, at a minimum temperature of +5°C.

  • Page 16: Installation Technology - Rigid Wall

    Technical documentation KWP-P Figure 3. Correct preparation of the damper for installation (using mounting wedge) ATTENTION: The damper must be installed in such way, that the axis of baffle must be in horizontal or vertical position, Damper can not be used as formwork for the wall,...
  • Page 17 Technical documentation KWP-P Figure 4.Installation method of smoke control dampers KWP-P in rigid wall Wersja 6.25 Strona 16 z 41 Data edycji: 27.06.2024r.
  • Page 18 Technical documentation KWP-P Figure 5. Installation method of the damper in rigid wall with one-sidedly connected self-supporting smoke extract duct. Wersja 6.25 Strona 17 z 41 Data edycji: 27.06.2024r.
  • Page 19 Technical documentation KWP-P Figure 6. Installation method of the damper in rigid wall with one-sidedly connected self-supporting smoke extract duct connected on both sides. Wersja 6.25 Strona 18 z 41 Data edycji: 27.06.2024r.

  • Page 20: Installation Technology - Ceiling

    Housing montage with actuator similarly as in the picture. Only the length of the mounting brackets will change. Mount the mounting brackets to the ceiling using raw bolts. Figure 7. Installation method of smoke control dampers KWP-P in ceiling with a fire ventilation duct with sealing of cement mortar Wersja 6.25...
  • Page 21 Technical documentation KWP-P Figure 8. Installation method of smoke control dampers KWP-P in ceiling with a duct made of PROMAT boards with sealing of mineral wool Figure 9.Proposed dimensions of mounting brackets for installation in a ceiling Actuator under ceiling...

  • Page 22: Installation Technology - Duct

    Connection in accordance with the standard of the supplier of the ventilation duct, taking into account the weight of the damper, KWP-P-E damper, Connection stub DX51D-Z275 thickness of 1,5mm with dimensions B+5, H+5 [mm] and of length L (in the...

  • Page 23: Installation Technology For Smoke Control Dampers In Batteries

    Technical documentation KWP-P Figure 11. Dimensions of the building partition depending on the high of a damper INSTALLATION TECHNOLOGY FOR SMOKE CONTROL DAMPERS IN BATTERIES The assembly of smoke control dampers in batteries is possible only after previous delivery of the information (at the stage of ordering) about which smoke control dampers and in which arrangement (horizontal or vertical) would be installed in a wall, in order to prepare suitable opening for self-tapping screws in the smoke control damper body.
  • Page 24 Technical documentation KWP-P SMAY offers four basic types of damper battery systems. Arrangement 1 – vertical battery consisting of two smoke control dampers KWP Fix the PROMASEAL-PL gasket with a cross-section of 20×1.8 mm on insulating spacer of one of adjoining smoke control dampers (position (1) in the Figure 13).
  • Page 25 1200 [mm]. Repeat accordingly paragraphs 2 and 3 to assemble smoke control damper A on smoke control damper B. Figure 14. Arrangement 2 - vertical battery consisting of three smoke control dampers KWP-P Wersja 6.25...
  • Page 26 The place of sealing the top of the smoke control damper with mineral wool should be sealed with aluminum tape (4). Figure 15. Arrangement 3 – horizontal battery consisting of two smoke control dampers KWP-P Wersja 6.25 Strona 25 z 41 Data edycji: 27.06.2024r.
  • Page 27 Arrangement 4 – battery consisting of four smoke control dampers KWP-P The assembly of battery consisting of four smoke control dampers KWP-P is divided into two steps: Step 1 – assembly of smoke control damper A and smoke control damper B and assembly of smoke control ...
  • Page 28 Installation of KWP smoke control dampers batteries in rigid wall compartment (Figure 13 to 16) Make an opening in the wall with dimensions depending on the battery size and its arrangement: For vertical battery consisting of two KWP-P smoke control dampers: (B1+120)x(H1+H2+180) (Figure 15), ...
  • Page 29 Technical documentation KWP-P Figure 17. Installation of a battery consisting of two smoke control dampers KWP-P in vertical arrangement in wall Wersja 6.25 Strona 28 z 41 Data edycji: 27.06.2024r.
  • Page 30 Technical documentation KWP-P Figure 18.Installation of a battery consisting of three smoke control dampers KWP-P in vertical arrangement in wall Wersja 6.25 Strona 29 z 41 Data edycji: 27.06.2024r.
  • Page 31 Technical documentation KWP-P Figure 19. Installation of battery consisting of two smoke control dampers KWP-P in horizontal arrangement in wall Wersja 6.25 Strona 30 z 41 Data edycji: 27.06.2024r.
  • Page 32 Technical documentation KWP-P Figure 20. Installation of a battery consisting of four smoke control dampers KWP-P in wall Wersja 6.25 Strona 31 z 41 Data edycji: 27.06.2024r.

  • Page 33: Commissioning

    START-UP PROTOCOL) within 30 days from the commissioning date (date indicated in the Installation and Commissioning Protocol for the KWP-P damper). Failure to comply with this formality will result in the loss of warranty for the device. Installation and Commissioning Protocol - Smoke control dampers / Fire dampers (universal for all dampers in the SMAY offer) is outlined below: Wersja 6.25...
  • Page 34 Technical documentation KWP-P INSTALLATION AND COMMISSIONING PROTOCOL - SMOKE CONTROL DAMPERS / FIRE DAMPERS Data of the company performing the installation and commissioning (seal) Device manufacturer OBJECT / INSTALLATION LOCATION INSTALLATION AND COMMISSIONING EXECUTION Object Name: KTM-(O) KTS-O KWP-O ……………………………………………………….…..…….………………….………………………...
  • Page 35 Installation and Commissioning Contractor License Number Signature Works Manager:: (Legible - First and Last Name) (issued by Smay) Optionally provided data - to be filled in by individuals holding a Certificate or Statement number. Wersja 6.25 Strona 34 z 41 Data edycji:...

  • Page 36: Periodic Maintenance And Servicing Rules

    SMAY Manufacturer's Service or an Authorized SMAY Service/SMAY Service Partner. Damage to the KWP-P damper resulting from failure to comply with the guidelines contained in the documentation will not be covered by warranty repairs.
  • Page 37 Technical documentation KWP-P ANNUAL INSPECTION PROTOCOL - SMOKE CONTROL DAMPERS / FIRE DAMPERS Company performing the inspection (seal) Device manufacturer OBJECT / INSTALLATION LOCATION INSPECTION EXECUTION Date ……………………………………………… of execution: Object Name: ………………….……………………..…………..…... ……………………………………………………….…….…..…….…… KTM-(O) KTS-O KWP-O Subject …………………………………………………………….…..…….…… KWP-P...
  • Page 38 None / as per remarks above The next inspection should be performed before ………………………..………..………….. 20…………. r. (Month) Confirmation by the Client: Inspection contractor License number Signature (issued by Smay company) Please mark the correct answer Wersja 6.25 Strona 37 z 41 Data edycji: 27.06.2024r.
  • Page 39 Technical documentation KWP-P Wersja 6.25 Strona 38 z 41 Data edycji: 27.06.2024r.
  • Page 40 Technical documentation KWP-P Wersja 6.25 Strona 39 z 41 Data edycji: 27.06.2024r.

  • Page 41: Classification Of Dampers For Repair

    The manufacturer provides a warranty for the delivered products, on the terms set forth in the Agreement or the General Warranty Conditions of Smay, Sp. z o.o. The warranty does not cover defects resulting from improper storage, transportation, installation, and commissioning, operation, periodic maintenance, service, especially mechanical damage and damage to anti-corrosive coatings.
  • Page 42 The templates of forms attached to this Technical Documentation (related to installation, commissioning, inspections) are the intellectual property of Smay sp. z o.o. Copying, duplicating, and using them for purposes other than those specified in this Technical and Operating Documentation is prohibited. To maintain the warranty, it is required to fill them out and deliver them to SMAY sp.
