TECHNICAL DOCUMENTATION
KWP-L
SMAY Sp. z o.o. / ul. Ciepłownicza 29 / 31-587 Kraków
tel. +48 12 680 20 80 / e-mail: info@smay.eu
www.smay.eu
SMOKE &FIRE
ZONE
Fire
Damper

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KWP-L and is the answer not in the manual?

Questions and answers

Related Manuals for SMAY KWP-L

Summary of Contents for SMAY KWP-L

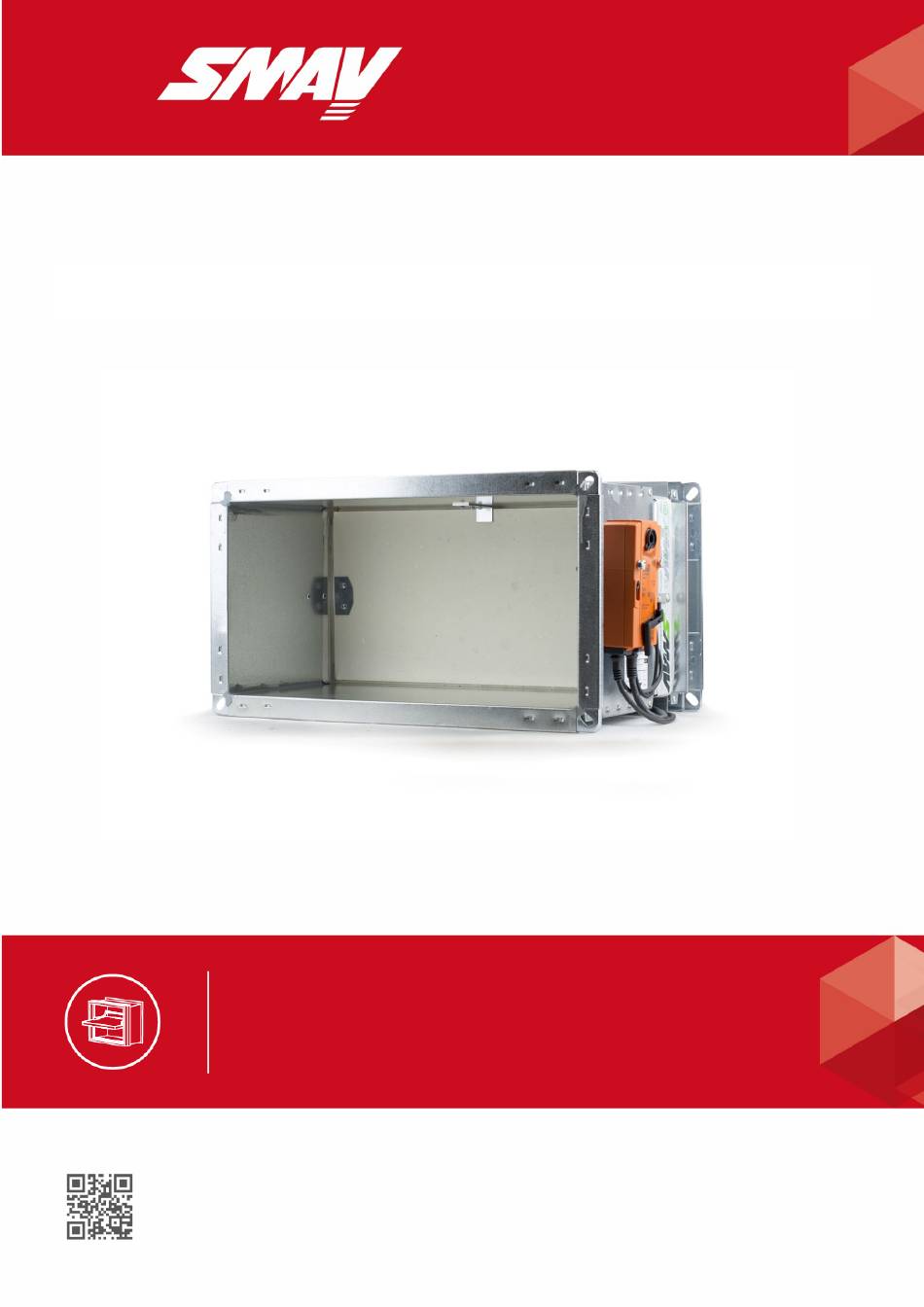

  • Page 1 SMOKE &FIRE ZONE TECHNICAL DOCUMENTATION KWP-L Fire Damper SMAY Sp. z o.o. / ul. Ciepłownicza 29 / 31-587 Kraków tel. +48 12 680 20 80 / e-mail: info@smay.eu www.smay.eu...
  • Page 2 1438 SMAY Sp. z o.o. 1438-CPR-0509 EN 15650:2010 Fire damper type: KWP-LE, KWP-LS Nominal activation conditions/sensivity: Closing/opening during the test Pass at the right time Response time/Closure time: Pass Reliability: 10 000 cycles - pass KWP-LE 300 cycles - pass...

  • Page 3: Table Of Contents

    Version 1.0 SMAY reserves the right to make changes to this document Table of Contents 1.INTRODUCTION ........................4 2.LEGAL REGULATIONS ......................4 3.INTENDED USE ........................4 4.TECHNICAL DESCRIPTION ....................5 5.BELIMO ELECTRIC ACTUATORS USED IN KWP-LE .............. 9 6.CONDITIONS OF TRANSPORT AND STORAGE ..............15 7.INSTALLATION TECHNOLOGY ...................

  • Page 4: Introduction

    PN-EN 1751 “Ventilation for buildings. Air terminal devices. Aerodynamic testing of dampers and valves.“ 3. INTENDED USE KWP-L fire dampers are classified in the following fire resistance range and can be mounted in the following space dividers: •...

  • Page 5: Technical Description

    – operating effectiveness criteria are fulfilled from the inside to the outside (fire inside), and from the outside to the inside (fire outside). KWP-L fire dampers may also be installed in space dividers having a smaller fire resistance. In this case, the damper`s fire resistance is equal to the space divider`s fire resistance, considering the smoke leakage criterion.
  • Page 6 KWP-LE - damper with electric actuator and return spring, • The length of KWP-L dampers is L=350 mm. The dampers mas also be fitted with limit switches indicating open or closed position of the baffle. In the special version, resistant to aggressive environments, the damper`s baffle is impregnated with a special substance used for fire-resistant board impregnation.
  • Page 7 DTR – KWP-L Fig. 1. KWP-LS damper with spring mechanism Version: 1.0 Page 7 z 25...
  • Page 8 DTR – KWP-L Fig. 2. KWP-LE damper with electric actuator Version: 1.0 Page 8 z 25...

  • Page 9: Belimo Electric Actuators Used In Kwp-Le

    DTR – KWP-L Tab.2. KWP-LE weight, [kg] KWP-LE B [mm] 10,1 11,2 12,2 10,7 11,9 13,1 14,3 [mm] 10,9 12,2 13,6 15,4 16,7 10,7 12,2 14,1 15,7 17,3 18,8 Tab.3. KWP-LS weight, [kg] KWP-LS B [mm] 10,1 11,1 12,1 10,3...
  • Page 10 DTR – KWP-L Spring-return actuator BF series, combined with thermoelectric tripping device BAE: • BF230-T, • BF24-T, • BF24-T-ST, BF24-TL-T-ST • gdzie: ST-connection plug, TL- communicative control. Wiring diagram BFL230-T oraz BFN230-T Wiring diagram BFL24-T oraz BFN24-T Version: 1.0 Page 10 z 25...
  • Page 11 DTR – KWP-L Wiring diagram BFL24-T-ST oraz BFN24-T-ST Wiring diagram BF230-T Wiring diagram BF24-T Version: 1.0 Page 11 z 25...
  • Page 12 DTR – KWP-L Wiring diagram BF24-T-ST Technical data: BFL230-T BFN230-T Version: 1.0 Page 12 z 25...
  • Page 13 DTR – KWP-L Technical data: BFL24-T (-ST) BFN24-T (-ST) Version: 1.0 Page 13 z 25...
  • Page 14 DTR – KWP-L Technical data: BF230-T BF24-T (-ST) Version: 1.0 Page 14 z 25...

  • Page 15: Conditions Of Transport And Storage

    DTR – KWP-L 6. CONDITIONS OF TRANSPORT AND STORAGE Fire dampers KWP-L should be stored in cardboard boxes and/or on pallets. KWP-LE should have a pre-protected actuator cardboard box. Fire dampers should be stored indoors, providing protection against atmospheric agents, at a minimum temperature of +5°C.
  • Page 16 DTR – KWP-L Fig.3. Installation method of fire dampers KWP-L in ceiling Fig.4. Proposed dimensions of mounting brackets for installation in a ceiling 140 mm thick Version: 1.0 Page 16 z 25...
  • Page 17 Side length from 500 to 800 mm – 2 pcs. 3. Mount the mounting brackets to the ceiling using dowels. Fig.5. Mounting method of fire dampers KWP-L in ceiling 7.2 Installation technology – Rigid wall 1. Make an opening in the wall with the dimensions 120 mm greater than the nominal dimensions of the fire damper, i.e.
  • Page 18 DTR – KWP-L Fig.6. Installation method of fire dampers KWP-L in rigid wall with vertical rotation axis of damper blade Fig.7. Installation method of fire dampers KWP-L in rigid wall with horizontal rotation axis of damper blade Version: 1.0 Page 18 z 25...
  • Page 19 DTR – KWP-L Fig.8. Mounting method of fire dampers KWP-L in rigid wall 7.3 Installation technology – Standard wall 1. Make an opening in the wall with the dimensions 150 mm greater than the nominal dimensions of the fire damper, i.e. B+150 and H+150.
  • Page 20 DTR – KWP-L Fig.9. Installation method of fire dampers KWP-L in standard wall with vertical rotation axis of damper blade Fig.10. Installation method of fire dampers KWP-L in standard wall with horizontal rotation axis of damper blade Version: 1.0 Page 20 z 25...
  • Page 21 DTR – KWP-L Fig.11. Mounting method of fire dampers KWP-L in standard wall 75 mm thick FIg.12. Mounting method of fire dampers KWP-L in standard wall 100 mm thick Version: 1.0 Page 21 z 25...

  • Page 22: Principles Of Maintenance

    In rigid, standard walls and ceilings with a thickness less than or equal 140 mm, fire dampers KWP-L should be mounted in this way that an axis of the fire damper blade matches the axis of the structure. In the case of walls and ceilings thicker than 140 mm, fire dampers KWP-L should be mounted in this way that keep the mounting limit, i.e.
  • Page 23 DTR – KWP-L Tab.4. Recommended checks Fire damper type Control date Check actuator wiring condition, if doesn`t damaged Check limit switch wiring condition, if doesn`t damaged Check cleanliness in fire damper, clean if necessary Check damper blade and seal condition, if necessary report a...
  • Page 24 DTR – KWP-L Replacing the thermal sensing element in KWP-LS Exchange must be performer on the closed position. To replace the thermal sensing element: 1. Release the spring 7 from the spring mechanism plate 1. 2. Unscrew the bolt 14 and pull out the entire thermal sensing element. The...

  • Page 25: Terms Of Warranty

    5. The warranty is valid in the cases described in the OWG. 6. The warranty does not cover the cases described in the OWG. 7. OWG & OWS documents are available on the website www.smay.pl 8. Above terms of warranty apply only in Poland.

This manual is also suitable for:
