SMAY KTS-O Technical Documentation Manual

Fire damper-round
Hide thumbs Also See for KTS-O:
Table of Contents

Advertisement

Quick Links

Download this manual
KTS-O
a
Fire Damper - round
https:
//
www.smay.eu
Technical
Documentation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KTS-O and is the answer not in the manual?

Questions and answers

Related Manuals for SMAY KTS-O

Summary of Contents for SMAY KTS-O

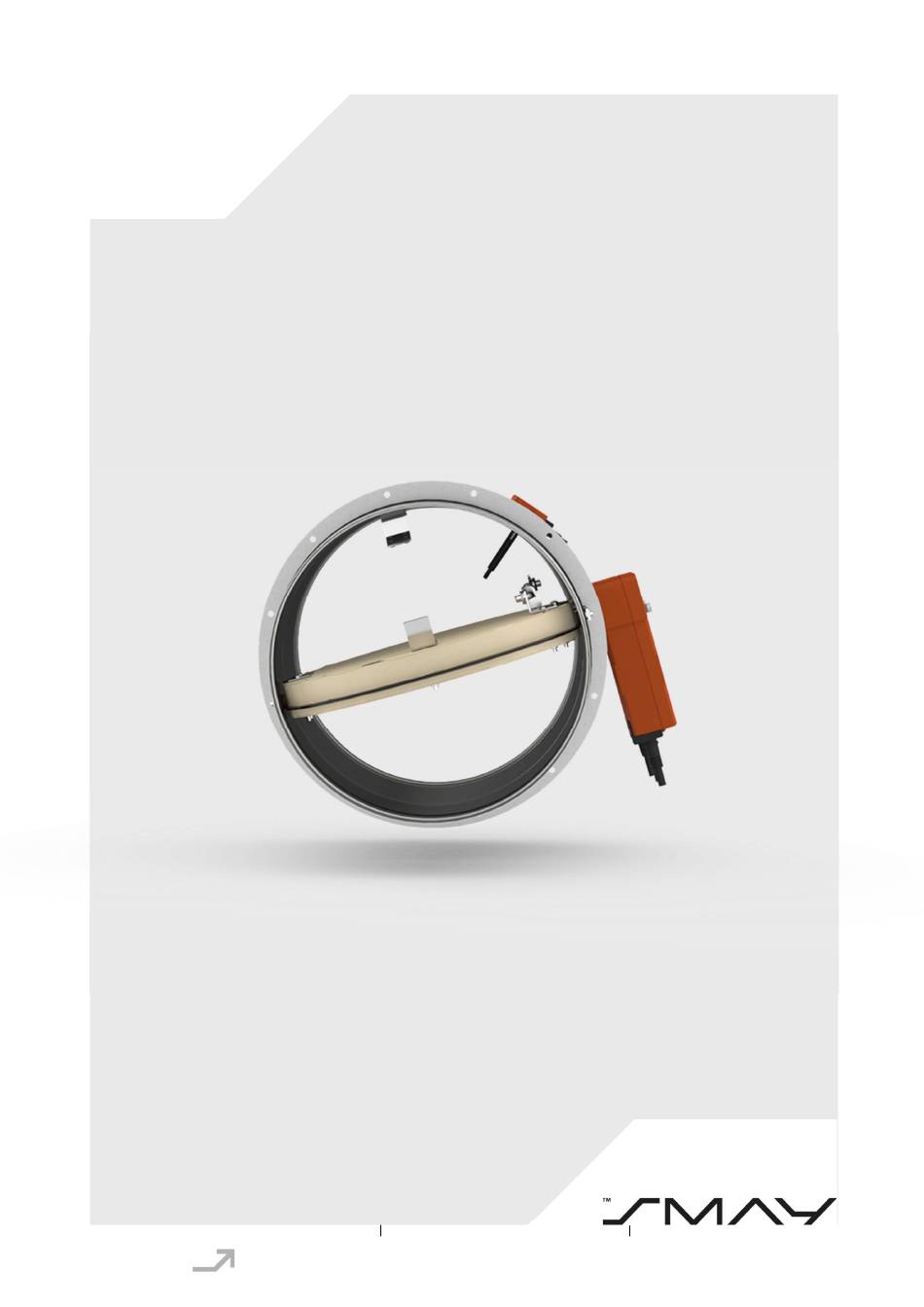

  • Page 1 KTS-O Technical Fire Damper - round Documentation https: www.smay.eu...
  • Page 2 EI 60 (ve i↔o) S (under E) EI 30 (ve i↔o) S Maintenance of the cross section (under E) Durability: KTS-O-E: 10 000 cycles <120S Opening and closing cycle test KTS-O-S: 100 cycles <120S Version 6.25 Page 1 of 34...

  • Page 3: Table Of Contents

    Technical documentation KTS-O Version 6.25 SMAY reserves the right to make changes to this document. TABLE OF CONTENT INTRODUCTION ....................3 LEGAL REGULATIONS ..................3 INTENDED USE ....................3 TECHNICAL DESCRIPTION .................. 5 BELIMO ELECTRIC ACTUATORS USED IN KTS ............8 CONDITIONS OF TRANSPORT AND STORAGE ............

  • Page 4: Introduction

    – Part 2: Fire dampers.” The KTS-O fire damper is classified as tightness class C (housing tightness) on the basis of tests carried out according to PN-EN 1751 “Ventilation for buildings. Air terminal devices. Aerodynamic testing of dampers and valves.”...
  • Page 5 (fire outside). The KTS-O fire dampers may also be installed in buildings partitions with a lower fire resistance rating. In this case, the damper fire resistance rating is equal to the partition fire resistance rating, subject to the smoke leakage criterion.

  • Page 6: Technical Description

    If a fire breaks out, the damper baffle rotates to the closed position. The permissible flow rate in a connection duct for the KTS-O-E dampers with an actuator is 12 [m/s] and 8 [m/s] for the KTS-O-S dampers with a spring mechanism.
  • Page 7 Technical documentation KTS-O Figure 1. KTS-O-S damper, with spring mechanism Version 6.25 Page 6 of 34 Date of editing: 27.06.2024...

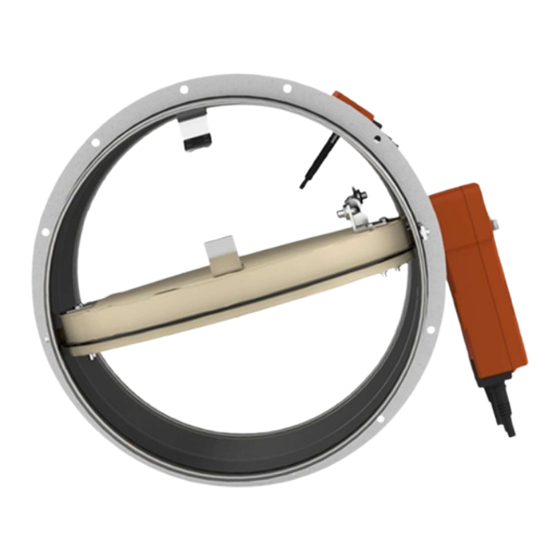

  • Page 8 Technical documentation KTS-O Figure 2. KTS-O-E damper with electric actuator Version 6.25 Page 7 of 34 Date of editing: 27.06.2024...

  • Page 9: Belimo Electric Actuators Used In Kts

    Technical documentation KTS-O BELIMO ELECTRIC ACTUATORS USED IN KTS Spring-return 90° actuator BFL series, combined with thermoelectric tripping device BAT: BFL230-T,  BFL24-T,  BFL24-T-ST,  where: ST – connection plug, Spring-return 90° actuator BFN series, combined with thermoelectric tripping device: BFN230-T, ...
  • Page 10 Technical documentation KTS-O Wiring diagram BFL230-T and BFN230-T Wiring diagram BFL24-T and BFN24-T Wiring diagram BFL24-T-ST and BFN24-T-ST Version 6.25 Page 9 of 34 Date of editing: 27.06.2024...
  • Page 11 Technical documentation KTS-O Wiring diagram BF230-TN Wiring diagram BF24-TN Wiring diagram BF24-TN-ST Version 6.25 Page 10 of 34 Date of editing: 27.06.2024...
  • Page 12 Technical documentation KTS-O Technical data: BFL230-T BFN230-T Version 6.25 Page 11 of 34 Date of editing: 27.06.2024...
  • Page 13 Technical documentation KTS-O Technical data: BFL24-T-(-ST) BFN24-T-(-ST) Version 6.25 Page 12 of 34 Date of editing: 27.06.2024...
  • Page 14 Technical documentation KTS-O Technical data: BF230-TN Version 6.25 Page 13 of 34 Date of editing: 27.06.2024...
  • Page 15 Technical documentation KTS-O Technical data: BF24-TN Version 6.25 Page 14 of 34 Date of editing: 27.06.2024...

  • Page 16: Conditions Of Transport And Storage

    Before installing the fire dampers, make sure that there are no damage, during transport or storage, that could block the baffle. Check that the baffle can be opened and closed (full opening and closing position). To open fire dampers KTS-O-S use the actuator key.

  • Page 17: Installation Technology - Ceiling

    After drying of the mortar (approx. 48 hours), remove used supports or suspension, check the fire damper correct operation and leave it in fully open position. Figure 3. Installation method of fire dampers KTS-O in ceiling Figure 4. Installation method of fire dampers KTS-O in ceiling Version 6.25...

  • Page 18: Installation Technology - Rigid Wall

    After drying of the mortar (approx. 48 hours), remove used supports or suspensions, check the fire damper correct operation and leave it in fully open position. Figure 5. Installation of KTS-O in rigid wall construction with 115 mm wall thickness. Version 6.25 Page 17 of 34...
  • Page 19 Technical documentation KTS-O Figure 6. Installation of KTS-O in rigid wall construction with horizontal axis of rotation of the damper. Figure 7. Installation of KTS-O in rigid wall construction with vertical axis of rotation of the damper. Version 6.25 Page 18 of 34...

  • Page 20: Installation Using Mineral Wool

    After mounting the collar, remove the supports or suspension, check the fire damper correct operation and leave it in open position. Figure 8. Installation of KTS-O fire dampers in rigid wall Version 6.25 Page 19 of 34 Date of editing: 27.06.2024...

  • Page 21: Installation Technology - Flexible Wall

    After mounting the collar, remove the supports or suspensions, check the fire damper correct operation and leave it in open position. Figure 9. Installation of KTS-O in flexible wall construction with 75 mm thickness Version 6.25 Page 20 of 34...
  • Page 22 Figure 10. Installation method of fire dampers KTS-O in flexible wall with 100 mm thickness Figure 11. Installation method of fire dampers KTS-O in flexible wall with horizontal rotation axis of baffle Version 6.25 Page 21 of 34 Date of editing: 27.06.2024...
  • Page 23 Technical documentation KTS-O Figure 12. Installation method of fire dampers KTS-O in flexible wall with vertical rotation axis of baffle Figure 13. Installation method of fire dampers KTS-O in flexible wall with 125 [mm] thickness Version 6.25 Page 22 of 34...

  • Page 24: Installation Technology - High Wall Thickness Construction

    Installation method of fire dampers KTS-O in high wall thickness constructions In rigid and flexible wall construction and in ceiling with thickness less or equal to 150 mm, KTS-O fire dampers are mounted in such a way that the damper installation limit, i.e. 52 mm, is maintained and the damper embossing must be on boundary of the building.

  • Page 25: Installation Technology - Installation Away From Wall Construction

    When the mineral wool is mounted, check correct functionality of the damper, then leave it in the open position. Figure 15. Installation method of fire dampers KTS-O away from wall constructions Version 6.25 Page 24 of 34 Date of editing: 27.06.2024...

  • Page 26: Replacing The Thermal Fuse Element In Kts-O-S

    START-UP PROTOCOL) within 30 days from the commissioning date (date indicated in the Installation and Commissioning Protocol for the KTS-O damper). Failure to comply with this formality will result in the loss of warranty for the device. Installation and Commissioning Protocol - Smoke control dampers / Fire dampers (universal for all dampers in the SMAY offer) is outlined below: Version 6.25...
  • Page 27 Technical documentation KTS-O INSTALLATION AND COMMISSIONING PROTOCOL - SMOKE CONTROL DAMPERS / FIRE DAMPERS Data of the company performing the installation and commissioning (seal) Device manufacturer OBJECT / INSTALLATION LOCATION INSTALLATION AND COMMISSIONING EXECUTION Object Name: KTM-(O) KTS-O KWP-O ……………………………………………………….…..…….………………….………………………...
  • Page 28 License Number Signature Works Manager:: (Legible - First and Last Name) (issued by Smay) Optionally provided data - to be filled in by individuals holding a Certificate or Statement number. Version 6.25 Page 27 of 34 Date of editing: 27.06.2024...

  • Page 29: Periodic Maintenance And Servicing Rules

    SMAY Manufacturer's Service or an Authorized SMAY Service/SMAY Service Partner. Damage to the KTS-O damper resulting from failure to comply with the guidelines contained in the documentation will not be covered by warranty repairs.
  • Page 30 Technical documentation KTS-O ANNUAL INSPECTION PROTOCOL - SMOKE CONTROL DAMPERS / FIRE DAMPERS Company performing the inspection (seal) Device manufacturer OBJECT / INSTALLATION LOCATION INSPECTION EXECUTION Date ……………………………………………… of execution: Object Name: ………………….……………………..…………..…... ……………………………………………………….…….…..…….…… KTM-(O) KTS-O KWP-O Subject …………………………………………………………….…..…….…… KWP-P...
  • Page 31 The next inspection should be performed before ………………………..………..………….. 20…………. r. (Month) Confirmation by the Client: Inspection contractor License number Signature (issued by Smay company) Please mark the correct answer Version 6.25 Page 30 of 34 Date of editing: 27.06.2024...
  • Page 32 Technical documentation KTS-O Version 6.25 Page 31 of 34 Date of editing: 27.06.2024...
  • Page 33 Technical documentation KTS-O Version 6.25 Page 32 of 34 Date of editing: 27.06.2024...

  • Page 34: Classification Of Dampers For Repair

    The manufacturer provides a warranty for the delivered products, on the terms set forth in the Agreement or the General Warranty Conditions of Smay, Sp. z o.o. The warranty does not cover defects resulting from improper storage, transportation, installation, and commissioning, operation, periodic maintenance, service, especially mechanical damage and damage to anti-corrosive coatings.
  • Page 35 The templates of forms attached to this Technical Documentation (related to installation, commissioning, inspections) are the intellectual property of Smay sp. z o.o. Copying, duplicating, and using them for purposes other than those specified in this Technical and Operating Documentation is prohibited. To maintain the warranty, it is required to fill them out and deliver them to SMAY sp.
