SMAY KWP-L Technical Documentation Manual

Fire damper-rectangular
Hide thumbs Also See for KWP-L:
Table of Contents

Advertisement

Quick Links

Download this manual
KWP-L
Technical
a
Fire Damper – rectangular
Documentation
https:
//
www.smay.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KWP-L and is the answer not in the manual?

Questions and answers

Related Manuals for SMAY KWP-L

Summary of Contents for SMAY KWP-L

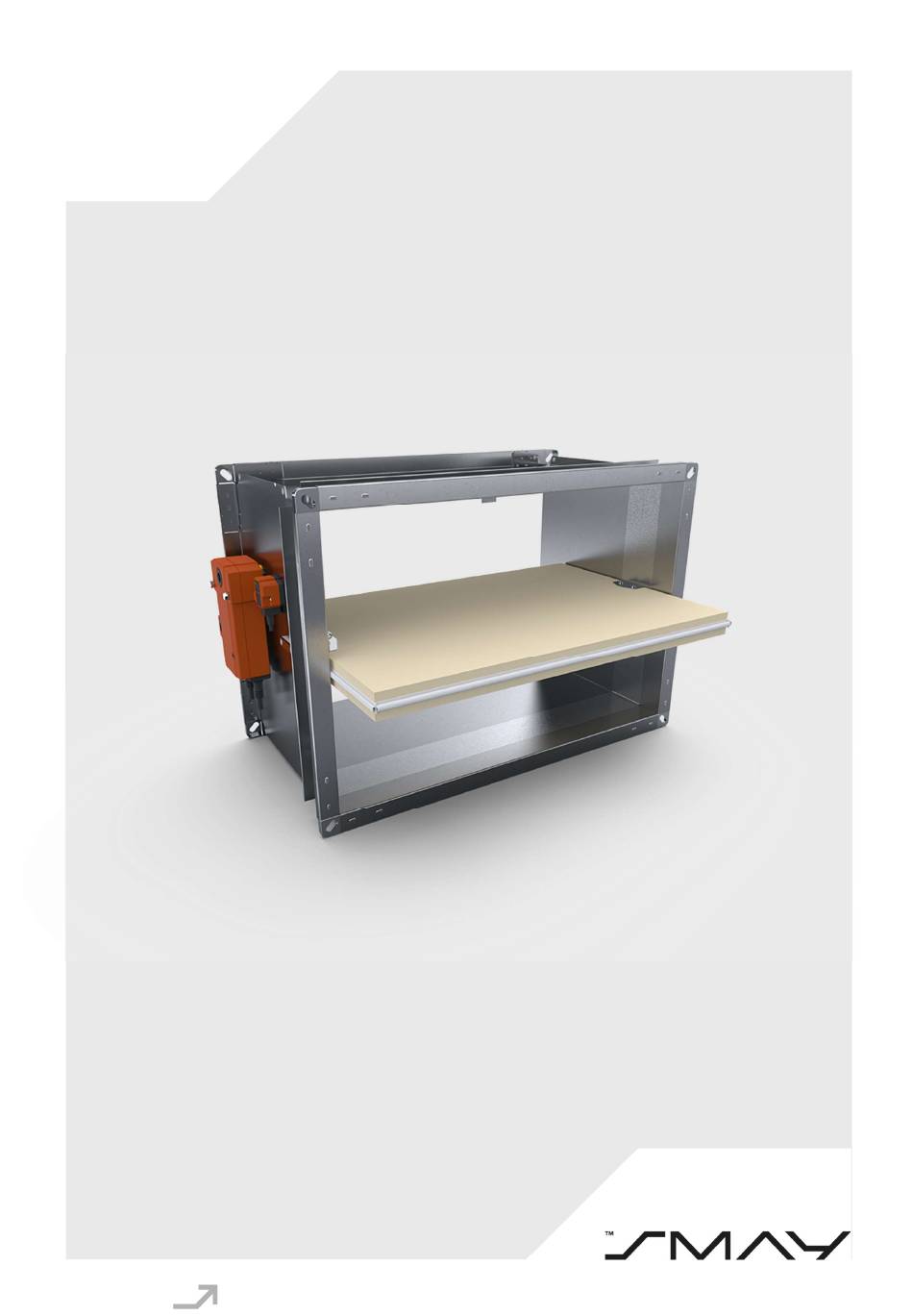

  • Page 1 KWP-L Technical Fire Damper – rectangular Documentation https: www.smay.eu...
  • Page 2 Technical documentation KWP-L 1438 SMAY Sp. z o.o. CSWU: 1438-CPR-0509 DWU: 011-CPR-2017 EN 15650:2010 Fire damper type: KWP-LE,KWP-LS Nominal activation conditions/sensitivity: Pass Closing/opening during the test at the right time Response time/Closure time: Pass Reliability: 50 cycles. <120s Fire resistance:...

  • Page 3: Table Of Contents

    Technical documentation KWP-L Version 6.2 SMAY reserves the right to make changes to this document. TABLE OF CONTENT INTRODUCTION ....................3 LEGAL REGULATIONS ..................3 INTENDED USE ....................3 TECHNICAL DESCRIPTION .................. 5 BELIMO ELECTRIC ACTUATORS USED IN KWP-LE ..........8 CONDITIONS OF TRANSPORT AND STORAGE ............

  • Page 4: Introduction

    – Part 2: Fire dampers.” The KWP-L fire damper is classified as tightness class C (housing tightness) on the basis of tests carried out according to PN-EN 1751 “Ventilation for buildings. Air terminal devices. Aerodynamic testing of dampers and valves.”...
  • Page 5 (fire outside). The KWP-L fire dampers may also be installed in buildings partitions with a lower fire resistance rating. In this case, the damper fire resistance rating is equal to the partition fire resistance rating, subject to the smoke leakage criterion.

  • Page 6: Technical Description

    Depending on the actuation system used, the dampers are marked as follows: KWP-LS - the dampers with a spring mechanism,  KWP-LE - the dampers with an electric spring return actuator,  The length of KWP-L dampers is L=350 mm. Version 6.2 Page 5 of 36 Date of editing: 02.04.2024...
  • Page 7 Special execution of dampers. The dampers may also be fitted with limit switches indicating the open or closed position of the baffle. KWP-L dampers may be fitted with inspection openings for checking the damper condition once it is installed in the ventilation system.
  • Page 8 Technical documentation KWP-L Figure 2. KWP-LE damper with an electric actuator Version 6.2 Page 7 of 36 Date of editing: 02.04.2024...

  • Page 9: Belimo Electric Actuators Used In Kwp-Le

    Technical documentation KWP-L Table 3. KWP-LE weight, [kg] KWP-LE B [mm] 10,1 11,2 12,2 10,7 11,9 13,1 14,3 [mm] 10,9 12,2 13,6 15,4 16,7 10,7 12,2 14,1 15,7 17,3 18,8 Table 4. KWP-LS weight, [kg] KWP-LS B [mm] 10,1 11,1...
  • Page 10 Technical documentation KWP-L Wiring diagram BFL230-T and BFN230-T Wiring diagram BFL24-T and BFN24-T Wiring diagram BFL24-T-ST and BFN24-T-ST Version 6.2 Page 9 of 36 Date of editing: 02.04.2024...
  • Page 11 Technical documentation KWP-L Wiring diagram BFL24-SR-T Wiring diagram BF230-TN Wiring diagram BF24-TN Version 6.2 Page 10 of 36 Date of editing: 02.04.2024...
  • Page 12 Technical documentation KWP-L Wiring diagram BF24-TN-ST Technical data: BFL230-T BFN230-T Version 6.2 Page 11 of 36 Date of editing: 02.04.2024...
  • Page 13 Technical documentation KWP-L BFL24-T-(-ST) BFN24-T(-ST) Version 6.2 Page 12 of 36 Date of editing: 02.04.2024...
  • Page 14 Technical documentation KWP-L BF230-TN Version 6.2 Page 13 of 36 Date of editing: 02.04.2024...
  • Page 15 Technical documentation KWP-L BF24-TN Version 6.2 Page 14 of 36 Date of editing: 02.04.2024...

  • Page 16: Conditions Of Transport And Storage

    EIS120, EIS90, EIS60, EIS30. The KWP-L fire dampers may also be installed in buildings partitions with a lower fire resistance rating. In this case, the damper fire resistance rating is equal to the partition fire resistance rating, subject to the smoke leakage criterion.

  • Page 17: Installation Technology - Ceiling

    After the mortar has dried (about 48 hours), remove the supports or suspensions, check the fire damper correct operation and leave it in open position. Figure 3. Installation method of fire dampers KWP-L in ceiling Version 6.2 Page 16 of 36...
  • Page 18 Technical documentation KWP-L Figure 4. Installation method of fire dampers KWP-L in ceiling Figure 5. Proposed dimensions of mounting brackets for installation in a ceiling 140 mm thick; Actuator under ceiling Actuator above ceiling E [mm] =Thickness of ceiling - 69...

  • Page 19: Installation Technology - Rigid Wall

    After the mortar has dried (about 48 hours), remove the supports or suspensions, check the fire damper correct operation and leave it in open position. Figure 6. Installation method of fire dampers KWP-L in rigid wall with vertical rotation axis of baffle Version 6.2 Page 18 of 36...
  • Page 20 Technical documentation KWP-L Figure 7. Installation method of fire dampers KWP-L in rigid wall with horizontal rotation axis of baffle Figure 8. Installation method of fire dampers KWP-L in rigid wall Version 6.2 Page 19 of 36 Date of editing: 02.04.2024...

  • Page 21: Installation Using Mineral Wool

    After mounting the collar, remove the supports or suspension, check the fire damper correct operation and leave it in open position. Figure 9. Installation method of fire dampers KWP-L in rigid wall Version 6.2 Page 20 of 36 Date of editing: 02.04.2024...

  • Page 22: Installation Technology -Flexible Wall

    After mounting the collar, remove the supports or suspensions, check the fire damper correct operation and leave it in open position. Figure 10. Installation method of fire dampers KWP-L in flexible wall with vertical rotation axis of baffle Version 6.2 Page 21 of 36...
  • Page 23 Technical documentation KWP-L Figure 11. Installation method of fire dampers KWP-L in flexible wall with horizontal rotation axis of baffle Figure 12. Installation method of fire dampers KWP-L in flexible wall 75 mm thick Version 6.2 Page 22 of 36...
  • Page 24 Technical documentation KWP-L Figure 13. Installation method of fire dampers KWP-L in flexible wall 100 mm thick Figure 14. Installation method of fire dampers KWP-L in flexible wall 125 mm thick Version 6.2 Page 23 of 36 Date of editing: 02.04.2024...

  • Page 25: Installation Technology - Constructions Of Great Thickness

    Installation method of fire dampers KWP-L in constructions of great thickness In rigid and flexible wall construction and in ceiling with thickness less or equal to 140 mm, KWP-L fire dampers are mounted in such a way that the damper baffle axis matches the axis of the structure.

  • Page 26: Installation Technology - Montage Away From Wall Construction

    PROMADUCT-500 System, accordance with the National Technical Assessment No. ITB KOT 2021/1823 and PROMAT guidelines. The maximum distance from the building partition is 1000 Figure 16. Installation of fire dampers KWP-L away from wall construction according to point 2 Version 6.2 Page 25 of 36 Date of editing: 02.04.2024...
  • Page 27 Technical documentation KWP-L Figure 17. Installation of fire dampers KWP-L away from wall construction Figure 18. Installation of fire dampers KWP-L away from wall construction Version 6.2 Page 26 of 36 Date of editing: 02.04.2024...

  • Page 28: Replacing The Thermal Fuse Element

    Commissioning Protocol - Smoke control dampers'. This protocol should be signed by a person holding a current, personalized certificate or certificate issued by Smay Sp. z o. o. authorizing the installation of KWP-L dampers. A copy of this document should be sent electronically to the manufacturer (www.smay.pl  SERVICE AND WARRANTY tab ...
  • Page 29 Technical documentation KWP-L INSTALLATION AND COMMISSIONING PROTOCOL - SMOKE CONTROL DAMPERS Data of the company performing the installation and Device manufacturer commissioning (seal) OBJECT / INSTALLATION LOCATION INSTALLATION AND COMMISSIONING EXECUTION Object Name: …………………………………..…………..…..... KTM-O KTS-O KWP-O ……………………………………………………….…..…….………………………………… KWP-P KWP-Ex KWP-L ……………………………………………………….…..…….…………………………………...
  • Page 30 Control Result: Positive / Negative Recommendations: None / as per the remarks above Client Confirmation: Review Contractor Authorization Signature Number (issued by Smay company) Version 6.2 Page 29 of 36 Date of editing: 02.04.2024...

  • Page 31: Periodic Maintenance And Servicing Rules

    SMAY Manufacturer's Service or an Authorized SMAY Service/SMAY Service Partner. Damage to the KWP-L damper resulting from failure to comply with the guidelines contained in the documentation will not be covered by warranty repairs.
  • Page 32 Technical documentation KWP-L ANNUAL INSPECTION PROTOCOL - SMOKE CONTROL DAMPERS Company performing the inspection (seal) Device manufacturer OBJECT / INSTALLATION LOCATION INSPECTION EXECUTION Date …………………………………………… Nazwa obiektu: …………………………………..…………..…... of execution: … ……………………………………………………….…..…….…… KTM-O KTS-O KWP-O Subject ……………………………………………………….…..…….…… KWP-P KWP-Ex KWP-L of review / Adres obiektu: …………………………...……………..…………...
  • Page 33 None / as per remarks above The next inspection should be performed before ………………………..………..………….. 20…………. r. (Month) Confirmation by the Client: Inspection contractor License number Signature (issued by Smay company) Version 6.2 Page 32 of 36 Date of editing: 02.04.2024...
  • Page 34 Technical documentation KWP-L Version 6.2 Page 33 of 36 Date of editing: 02.04.2024...
  • Page 35 Technical documentation KWP-L Version 6.2 Page 34 of 36 Date of editing: 02.04.2024...

  • Page 36: Classification Of Dampers For Repair

    The manufacturer provides a warranty for the delivered products, on the terms set forth in the Agreement or the General Warranty Conditions of Smay, Sp. z o.o. The warranty does not cover defects resulting from improper storage, transportation, installation, and commissioning, operation, periodic maintenance, service, especially mechanical damage and damage to anti-corrosive coatings.
  • Page 37 The templates of forms attached to this Technical Documentation (related to installation, commissioning, inspections) are the intellectual property of Smay sp. z o.o. Copying, duplicating, and using them for purposes other than those specified in this Technical and Operating Documentation is prohibited. To maintain the warranty, it is required to fill them out and deliver them to SMAY sp.
