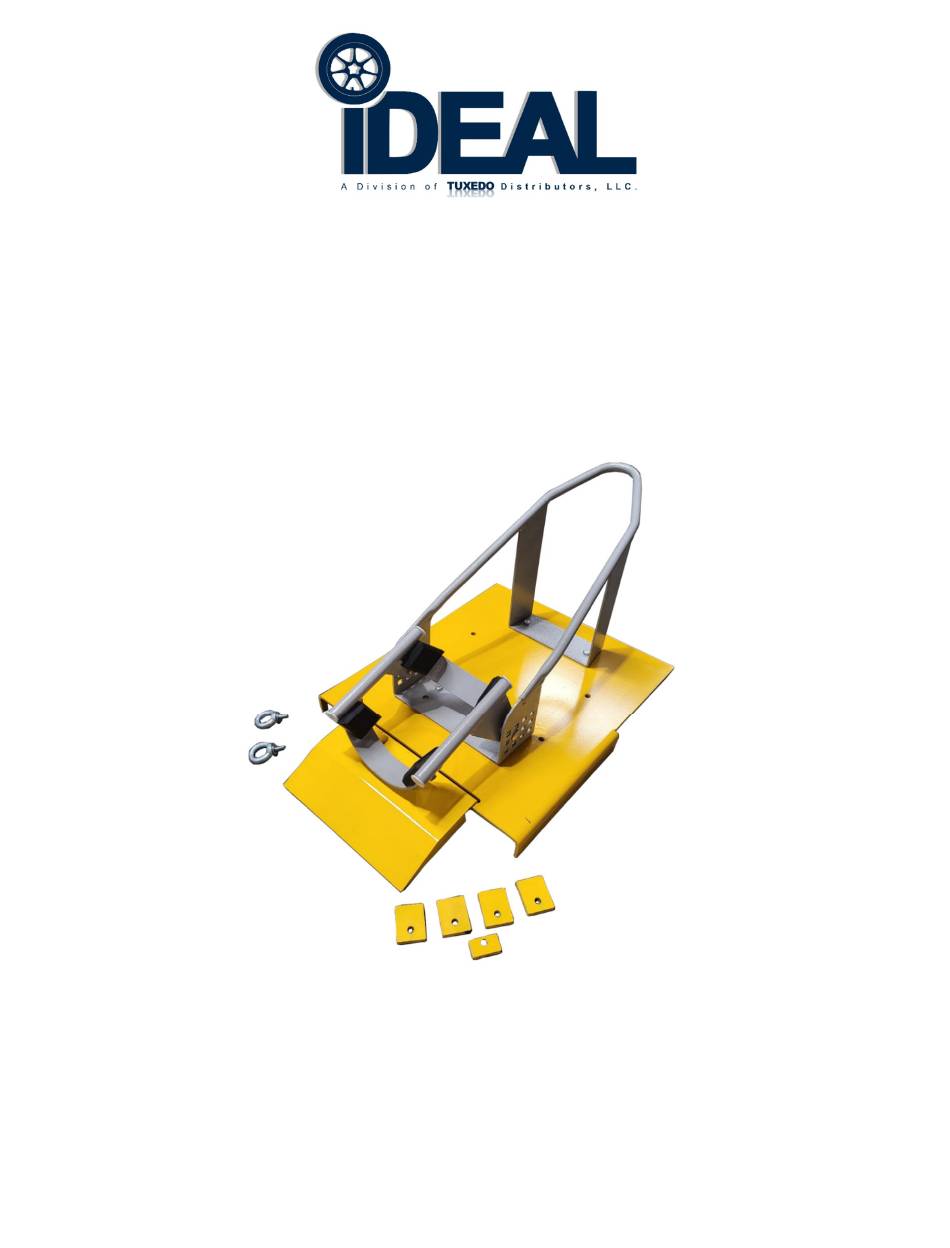

SC-2K-UTV-MCBPK
SC-2K-UTV-X MOTORCYCLE
M-CHOCK & BASE PLATE KIT
1,000 lbs. Capacity (454 Kg)
ASSEMBLY & OPERATION MANUAL
NOTE!
(Supplement to the SC-2K-UTV-X Lift Installation & Operation Manual)
IMPORTANT!!
READ MANUAL THOROUGHLY BEFORE ASSEMBLING OR USING TO PREVENT INJURY OR
DAMAGES. WHEN COMPLETED WITH ASSEMBLY, ENSURE TO RETURN MANUAL & RELATED
DOCUMENTS IN PROTECTIVE SLEEVE FOR FUTURE REFERENCE.
SC-2K-UTV-MCBPK
JUL 2024
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tuxedo IDEAL SC-2K-UTV-MCBPK
Summary of Contents for Tuxedo IDEAL SC-2K-UTV-MCBPK
- Page 1 SC-2K-UTV-MCBPK SC-2K-UTV-X MOTORCYCLE M-CHOCK & BASE PLATE KIT 1,000 lbs. Capacity (454 Kg) ASSEMBLY & OPERATION MANUAL NOTE! (Supplement to the SC-2K-UTV-X Lift Installation & Operation Manual) IMPORTANT!! READ MANUAL THOROUGHLY BEFORE ASSEMBLING OR USING TO PREVENT INJURY OR DAMAGES. WHEN COMPLETED WITH ASSEMBLY, ENSURE TO RETURN MANUAL & RELATED DOCUMENTS IN PROTECTIVE SLEEVE FOR FUTURE REFERENCE.
- Page 2 1. Safety & Cautions Important Statements: Please note the max weight capacity noted on the yellow CAUTION decal on the SC-2K-UTV-MCBPK M-Chock Base Plate and overall lift capacity on the silver ID Tag attached to the SC-2K-UTV-X lift’s main post. Do not try to lift any load that exceeds the rated lifting capacity, including each platform. Please read this manual carefully before assembly and use of the lift, to avoid any property loss or personal injury caused by faulty operation.
-
Page 3: Product Information
SC-2K-UTV-MCBPK CAUTION Decal Training: · Lift operators must be qualified & trained for safe use and proper operation, as described in Manual. Owner / Employer Responsibilities: (Also reference SC-2K-UTV-X Manual) Proper application of the equipment described herein is limited to the parameters detailed in the specifications and the usages set forth in the descriptive passages. - Page 4 Required Tools: Ø Metric Socket Set & Ratchet Ø Metric Hex Key Wrench Set Ø Adjustable Wrench Ø Safety Glasses Ø Gloves Selecting Site: NOTE: Before assembling & applying your new (SC-2K-UTV-MCBPK) M-Chock / Base Plate Kit to the SC-2K-UTV-X lift, ensure to check the following: Overhead Obstructions: The area where the M-Chock / Base Plate Kit will be positioned &...
- Page 5 NOTE: Ensure Pivot Cradle is able to pivot freely after securing to the M-Chock Frame. (If Applicable) Apply Narrow Tire Adaptor Pads to inside of Pivot Cradle for Front Tire widths of 3.5” or narrower. Install Pads to Pivot Cradle using 4ea M8 x 10mm Screws & M8 Nylon Lock Nuts. Fig.1. Pivot Cradle Narrow Tire Adaptor Pads...
- Page 6 4. Operation Instructions ‘FRONT OR SIDE’ POSITIONING & LOADING DIRECTION: Determine which loading direction the motorcycle will be: Front or Side Loading. Figs. 4 & 5. For Front Loading, select which Platform (LH or RH) will be the best to position the motorcycle for shop or garage storage or service.
- Page 7 CAUTION: Always Position Heavy Motorcycles to either the #1 or #2 Positions for Side Loading. SPECIAL NOTE: When using the Side Load Configuration, ‘Spacer Shims’ must be installed to the ‘inside’ platform ramp support rails, allowing for enough ‘gap clearance’ for both Base Plate &...
- Page 8 PIVOT CRADLE ADJUSTMENT: Using the Pictures & Diagram below, adjust M-Chock Pivot Cradle to one of 12ea positions to best fit & secure the motorcycle’s front tire, allowing the motorcycle to be in a stabile upright position. MOTORCYCLE LOADING / OFF-LOADING: Loading: 1.
- Page 9 TIE-DOWN ANCHOR POINTS DIAGRAM: WARNING: Always use Tie-Down Anchor Points & Tie-Down Straps to secure Motorcycle to Lift, prior to raising to store or service. Using the Diagram below, apply provided 2ea Ring Eyelets to one of the 10ea threaded Anchor points located on the SC-2K-UTV-X Lift to best secure motorcycle to the lifting platforms.
- Page 10 5. Reference SC-2K-UTV-X Manual for following Information: Ø Raising & Lowering Lift Ø Platform ‘Angle’ Adjustment Tips Ø Troubleshooting: Ø Preventive Maintenance CAUTION: Before driving a vehicle onto the lift, ensure the lift is fully lowered and platforms are properly adjusted to match vehicle wheels. NOTE: Be careful when raising vehicle so not to make contact with ceiling or any other overhead obstructions that may damage vehicle or garage or building during lift operation.
-
Page 11: Exploded View
Exploded View Parts List ITEM TUX P/N M-REF P/N DESCRIPTION QTY. SC-2K-UTV-MCBPK-001 JP23-12100-JT2 M-CHOCK (MCBPK) SC-2K-UTV-MCBPK-002 5102-08020-000 Hex Bolt, M8 x 20mm SC-2K-UTV-MCBPK-003 5302-00008-000 Flat Washer, D8 SC-2K-UTV-MCBPK-004 5206-00008-000 Nylon Lock Nut, M8 SC-2K-UTV-MCBPK-005 5206-00010-000 Nylon Lock Nut, M10 SC-2K-UTV-MCBPK-006 5124-10025-000 Pivot Bolt, M10 x 25mm SC-2K-UTV-MCBPK-007... -
Page 12: Limited Warranty
There is no other express warranty on the Tuxedo lifts and this warranty is exclusive of and in lieu of all other warranties, expressed or implied, including all warranties of merchantability and fitness for a particular purpose.
