Summary of Contents for Emax Tinyhawk Nanoscout

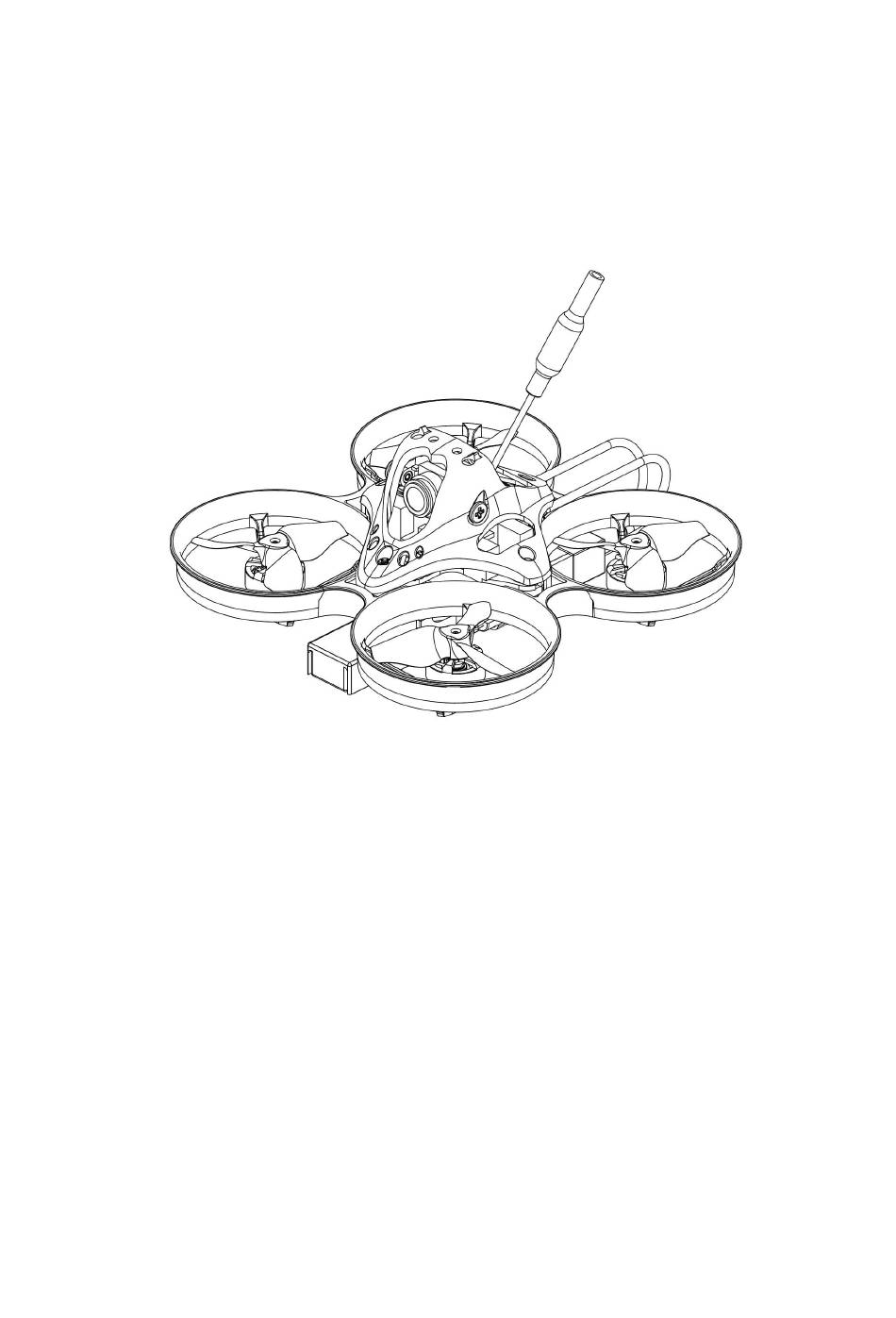

- Page 1 Tinyhawk Nanoscout Tinyhawk Nanoscout Tinyhawk Nanoscout Thank you for purchasing the Designed in California, USA, and manufactured in China.
- Page 2 Tinyhawk Nanoscout is equipped with open-source flight controllers and electronic speed controllers to meet the upgrading needs of FPV enthusiasts. EMAX is not liable for any direct or indirect damages or injuries caused by the use of this product. Notes Please assemble and operate this product correctly according to the instructions.
- Page 3 Tinyhawk Nanoscout...
- Page 4 Image transmission EMAX-32-bit open-source simulation image transmission Power: 25mW/100mW/200mW/400mW Battery 1S HV 320mAh(EM2.0) Tinyhawk Nanoscout - BNF Product List Tinyhawk Nanoscout ........×1 EMAX 1s HV 320mAh ......... ×1 Charger ............×1 Propellers ............(2xCW, 2xCCW) Accessory Pack ..........×2...
- Page 5 Tinyhawk Nanoscout emax-usa.com...
- Page 6 Tinyhawk Nanoscout 1. Tinyhawk Nanoscout 1.1 Tinyhawk Nanoscout 1· Camera 2· Camera mount/bracket 3· Propeller 4· Brushless motor 5· Frame (as in the frame of an aircraft or drone) 6· Main control board (flight controller) 7· 1S battery (1-cell battery) 8·...
- Page 7 Press the propeller blades with your hand until they are flush with the motor shaft. Warning: Incorrect propeller installation may cause the Tinyhawk Nanoscout to be unable to fly properly and become uncontrollable. Verify carefully that the propeller direction is correct.
- Page 8 Propeller Removal: Use a small tool (such as a 1.5mm hex wrench or a small screwdriver) to press between the metal at the bottom of the motor and the Tinyhawk Nanoscout. Hold the propeller blades with your fingers until the propeller pops out from the motor.
- Page 9 Tinyhawk Nanoscout 1.5 Tinyhawk Nanoscout-AIO 1.5.1 Tinyhawk Nanoscout-AIO Schematic Tinyhawk Nanoscout PLUS-AIO integrates an ELRS (2.4G) receiver, 6A BlHeliSuite ESC, and F411 flight controller on a single board. emax-usa.com...
- Page 10 Tinyhawk Nanoscout 1.5.2 Tinyhawk Nanoscout Flight control part FC（MCU） STM32F411CEU6（100MHz） Gyroscope&accelerometer（MPU） ICM42688（SPI connect） Character overlay（OSD） AT74569E(SPI connect) input voltage output voltage (BEC) 5V@2A、3.3V@1A firmware（betaflight） EMAX_TINYHAWKF4SX1280 Support electric adjustment protocol Shot150 、 D-Shot300, Shot600,Multishoth，OneShot125、PWM Programmable RGB color lights support Serial port 2 个（UART1、UART2）...
- Page 11 You can write the aircraft's binding key to the transmitter using the EMAX Serial Upgrade Tool, or write the transmitter's binding key to the flight controller using the Betaflight Configurator software.
- Page 12 Tinyhawk Nanoscout If you wish to modify the mode settings, locate the corresponding channels for the switches in the Betaflight Configurator software, make the desired changes, and then save and restart. 2.4 Changing OSD Settings To change OSD settings using the Betaflight Configurator software, Tinyhawk Nanoscout comes pre-configured with OSD settings.
- Page 13 After saving, restart the system to implement the updated OSD settings. 2.5 Changing VTX (Video Transmitter) Settings 2.5.1 Modifying VTX Settings Using Betaflight Configurator Tinyhawk Nanoscout comes with the default VTX settings of R:4:25mW. If you wish to make changes, follow these steps: Open the Betaflight Configurator software.
- Page 14 Tinyhawk Nanoscout 2.5.2 Changing VTX Settings Using Video Goggles OSD The Tinyhawk Nanoscout is equipped with SmartAudio, which is already configured. The analog video transmitter's SmartAudio is on UART2 TX. Power on the Tinyhawk Nanoscout, Transporter II, and E8 Transmitter.
- Page 15 Tinyhawk Nanoscout 2.6 Flight Controller Firmware Flashing First, locate the Boot button on the flight controller board. Then, while holding down the Boot button, connect the flight controller using a Type-C data cable to enter DFU mode. Next, click on the update firmware button.
- Page 16 Paste the copied text into the command line interface (CLI) of the Betaflight Configurator software and press Enter. Once the process is complete, reconnect to the Betaflight Configurator software. The Tinyhawk Nanoscout will be restored to its default settings. emax-usa.com...
- Page 17 Tinyhawk Nanoscout 2.8 Tinyhawk Nanoscout-PID File Overview PID Configuration File 1 is tailored and optimized for the Tinyhawk Nanoscout and the provided Emax 1s HV 320 mAh battery, designed for ultimate flight control both indoors and outdoors. This file is optimized for the best indoor flight control when using the Emax 1s HV 650 mAh battery.
- Page 18 PID settings may affect flight time, overall speed, control of the aircraft, and may cause internal motor overheating. We do not recommend changing any settings of the Tinyhawk Nanoscout or upgrading the firmware to a new version. Thank you for purchasing our product! Enjoy your flight!
-
Page 19: Safety Notice
Tinyhawk Nanoscout Warning： Safety Notice Please be aware of your surroundings. Usage is prohibited for individuals under 18 years of age. This product contains small parts. Keep out of reach of children to prevent accidental ingestion. emax-usa.com...
