- Page 1 Thanks for purchasing the Babyhawk II HD . Designed in California, assembled in China.
-
Page 2: Precautions
Please fly in a safe area away from people Do not modify or use other parts and accessories not approved for the use of EMAX. Do not use this product in harsh environments (such as winds, rain, lightning, snow, etc.). -
Page 3: Table Of Contents
Babyhawk II HD ......................3 Propeller Direction and Mounting ................3 Babyhawk II HD All-in-One Flight Controller .............. 4 Emax Babyhawk II HD Flight Controller (FC) ............4 Stock Flight Controller Settings ................4 Adjusting Software Settings (Betaflight Configurator) ......... 4 Reprogramming Babyhawk II HD Flight Controller .......... -
Page 4: Disclaimer
4 in 1 25A ESC Camera& Video Transmitter Caddx Vista HD VTX + Nebula Pro Camera Product list 1. Babyhawk II HD × 1 2. VISTA KIT Instruction manual × 1 3. Instruction manua cardl × 1 4. Extra Propeller (1x CW, 1x CCW) 5. -
Page 5: Babyhawk Ii Hd Structure

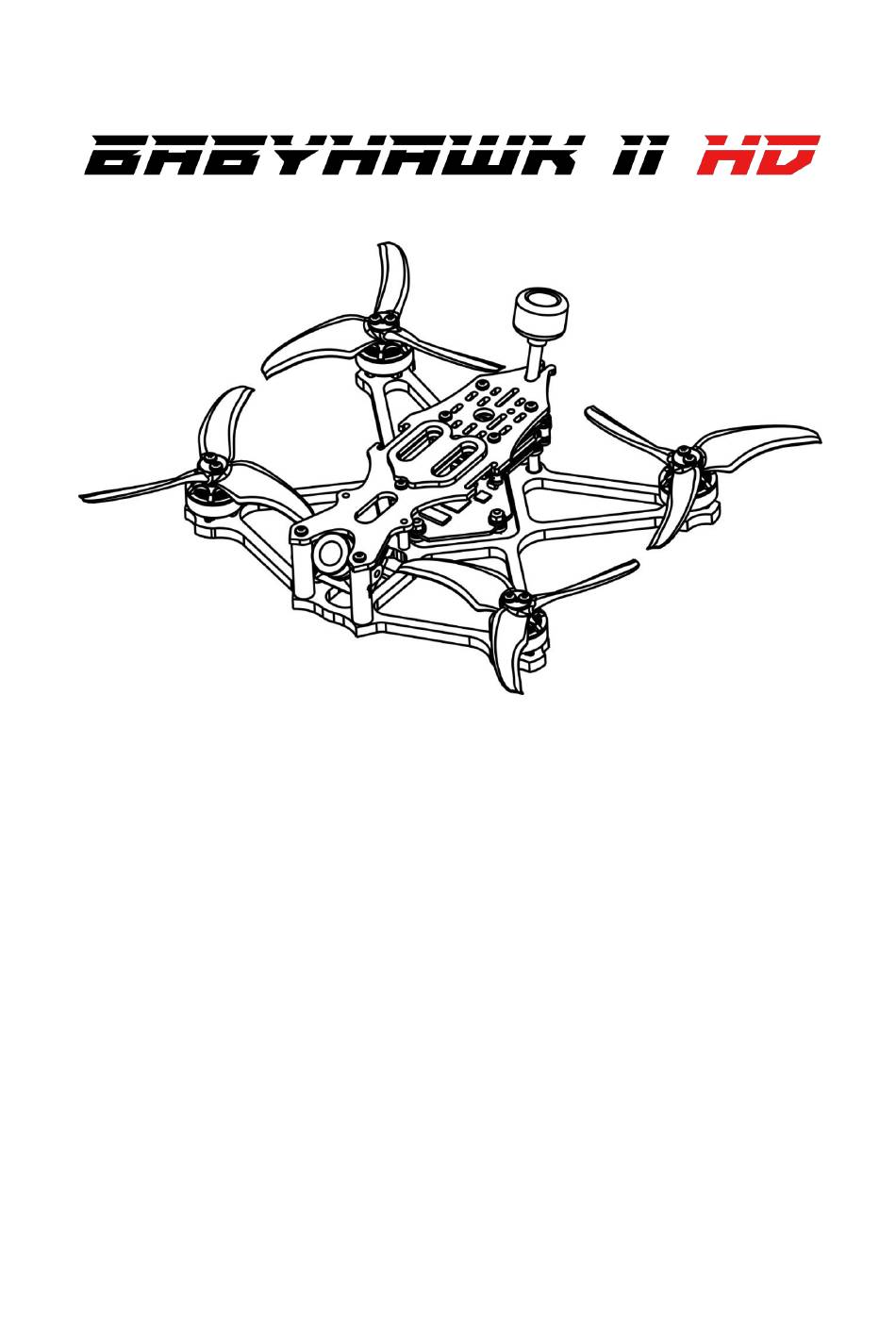

Babyhawk II HD Babyhawk II HD Structure emax-usa.com... -
Page 6: Babyhawk Ii Hd
Caution: Failure to mount the propellers in the correct orientation will cause Babyhawk II HD to not fly correctly and with no control. Please double check for the correct orientation. -
Page 7: Babyhawk Ii Hd All-In-One Flight Controller
That is the channel map is in the respective order: throttle, aileron, elevator, rudder, AUX 1, AUX 2, AUX 3, and AUX 4. The arm switch on Babyhawk II HD is set on AUX 1 and armed with the highest value. AUX 2 is configured for a 3 stage switch to select flight modes: Acro, Horizon, and Angle activating in an increasing order. -
Page 8: Set The Correct Settings
Set the Correct Settings 1. Download the latest CLI Dump File from https://emax-usa.com/ 2. Connect Babyhawk II HD to Betaflight configurator and select the CLI tab 3. Open the CLI Dump File in a text editor and copy all the text. - Page 9 Babyhawk II HD emax-usa.com...
-
Page 10: Flight
Radio Stick Controls The left stick controls throttle and yaw direction of Babyhawk II HD. The right stick controls pitch and roll of the aircraft. Left Stick Diagram Right Stick Diagram emax-usa.com... -
Page 11: Fly Babyhawk Ii Hd
The AUX 2 switch is set to change this mode on a 3 stage switch. When AUX 2 is in a high state, Babyhawk II HD will be in angle mode where control sets the attitude of the aircraft. When the switch is in the middle state, Babyhawk II HD will be in Horizon mode. - Page 12 Pay attention to these numbers during flight to know how much battery life is left. Babyhawk II HD can fly for a maximum of 4 minutes. When the battery reaches 14.4v, land Babyhawk II HD. Drawing the battery below 14.4v is not suggested and can damage the battery.
- Page 13 Babyhawk II HD Thank you for purchasing our product! Enjoy Flying Babyhawk II HD. Warning： Please pay attention to your surroundings. Not Recommended for persons under 18 years of age. emax-usa.com...
