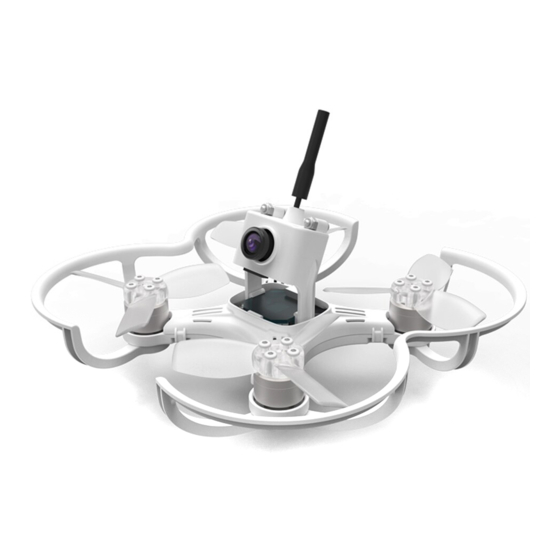

Emax Babyhawk Manual

After completing the instruction manual, use the configurator GUI to configure flight controller settings for the Babyhawk. Please refer to this link to learn more: https://www.emaxmodel.com/babyhawk-85mm-brushless-drone-pnp.html

Disclaimer

Please read the disclaimer carefully before using this product. By using this product, you hereby agree to this disclaimer and signify that you have read them carefully and completely. This product is not suitable for people under the age of 18. Adult supervision is highly recommended for kids under the age of 18.

Our Babyhawk features open-source flight controller and Electronic Speed Controllers to satisfy the FPV enthusiasts' need to update/upgrade their software and hardware. Please read the instruction manual and warnings carefully. Before every flight, make sure the battery is fully charged and power connections are secure. DO NOT fly around crowds, children, animals or objects. EMAX ACCEPTS NO LIABILITY FOR DAMAGE(S) OR INJURIES INCURRED DIRECTLY OR INDIRECTLY FROM THE USE OF THIS PRODUCT.

Precautions

1. Please follow the instructions to correctly guide the assembly and operation of this product.
2. Pilots: Do not use this product if you have physical or mental illness, dizziness, fatigue, or are under influence of alcohol or drugs.
3. Please fly in a safe location away from people and animals.
4. Do not modify or use parts and accessories not approved by EMAX.
5. Do not use this product in harsh environments (such as winds, rain, lightning, snow, etc.).
6. Do not use this product in a strong electromagnetic environment.

Product specification

Instruction Manual for FrSky XM Plus

Specifications

Dimension: 21.5*12*3.5mm (L × W × H)
Weight: 1.6g
Number of Channels: Up to 16CH from SBUS (CH1~CH5 for PWM, CH16 RSSI for FC)
With RSSI output on board: PWM voltage output (0~3.3V)
Operating Voltage Range: 3.7~10V
Operating Current: 30mA@5V
Operating Range: full range
Firmware Upgradable
Compatibility: FrSky D16 mode

Binding Procedure

Binding is the process of uniquely associating a particular receiver to a transmitter module. A transmitter module can be bound to multiple receivers (not to be used simultaneously). A receiver can only be bound to one transmitter module.

Follow the steps below to finish the binding procedure.

1. Turn on the transmitter while holding the F/S button on the module (please refer to the module instruction manual for switch positions). Release the button. The RED LED on the Module will flash, indicating the transmitter is ready to bind to the receiver.
2. Connect battery to the XM Plus receiver while holding the F/S button on the receiver. The LED on the receiver will flash, indicating the binding process is completed.
3. Turn off both the transmitter and the receiver.
4. Turn on the transmitter and connect the battery. The GREEN LED on the receiver indicates the receiver is receiving commands from the transmitter. The receiver/transmitter module binding will not have to be repeated, unless one of the two is replaced.

Failsafe

Failsafe is a useful feature in which all controls move to a preset position whenever the control signal is lost for a period of time. XM Plus supports failsafe function for all channels. Follow the steps below to set failsafe positions for each channel:

1. Bind the receiver first and turn on both the transmitter and the receiver;
2. Move the controls to the desired failsafe position for all channels;
3. Press briefly the F/S button on the receiver (less than 1 second). The Green LED will flash twice, indicating the failsafe position has been set in the receiver.

To disable the failsafe function, re-bind the receiver. Failsafe is recommended to set when system is firstly used, or receiver has been re-bound.

Note: If failsafe is not set, failsafe default will hold last position before signal is lost. In this case, there exists risk that your model will fly away or cause injury.

FrSky is continuously adding features and improvements to our products. To get the most from your product, please check the download section of the FrSky website www.frsky-rc.com for the latest update firmware and manuals

Product List

1. Babyhawk quadcopter * 1set
2. 2345 Tri-blade Propeller CW and CCW * 4pcs each
3. Battery*1pcs (optional)
4. FrSky receiver (optional)
5. Remote control * 1pcs, receiver * 1pcs (optional package)
6. Manual * 1set

VTX frequency chart

Channel selection button is located on the back of the camera housing

(1) Long press 2 seconds into the Band selection mode
(2) Short press in this frequency group to select F, R, A or B Bands, long press 2 seconds exit frequency selection
(3) Short press in the current band to select the 1-8 channels.
(4) Long press 10 seconds for the size of power selection (high-power digital tube decimal point ON, low-power digital tube decimal point OFF)
(5) Camera support P / N standard switch (the toggle switch on VTX_CAM)

Instructions for using ESC

This product uses EMAX Bullet 6A BLHeli_S ESC integrated hardware

For more information, go to "https://www.emaxmodel.com/babyhawk-85mm-brushless-drone-pnp.html" to download and check.

Thank you for using EMAX products!

For EMAX Babyhawk accessories, please visit the official EMAX website (www.emaxmodel.com).

REMINDER! Please pay attention to safety of your surrounding. Not recommended for persons under 18 years of age! We wish you happy flying!
