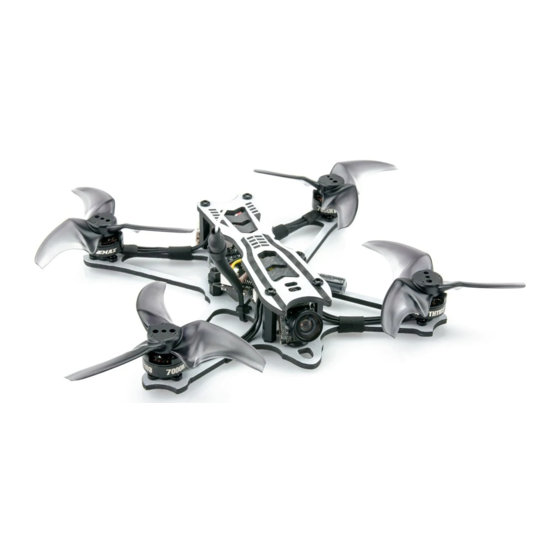

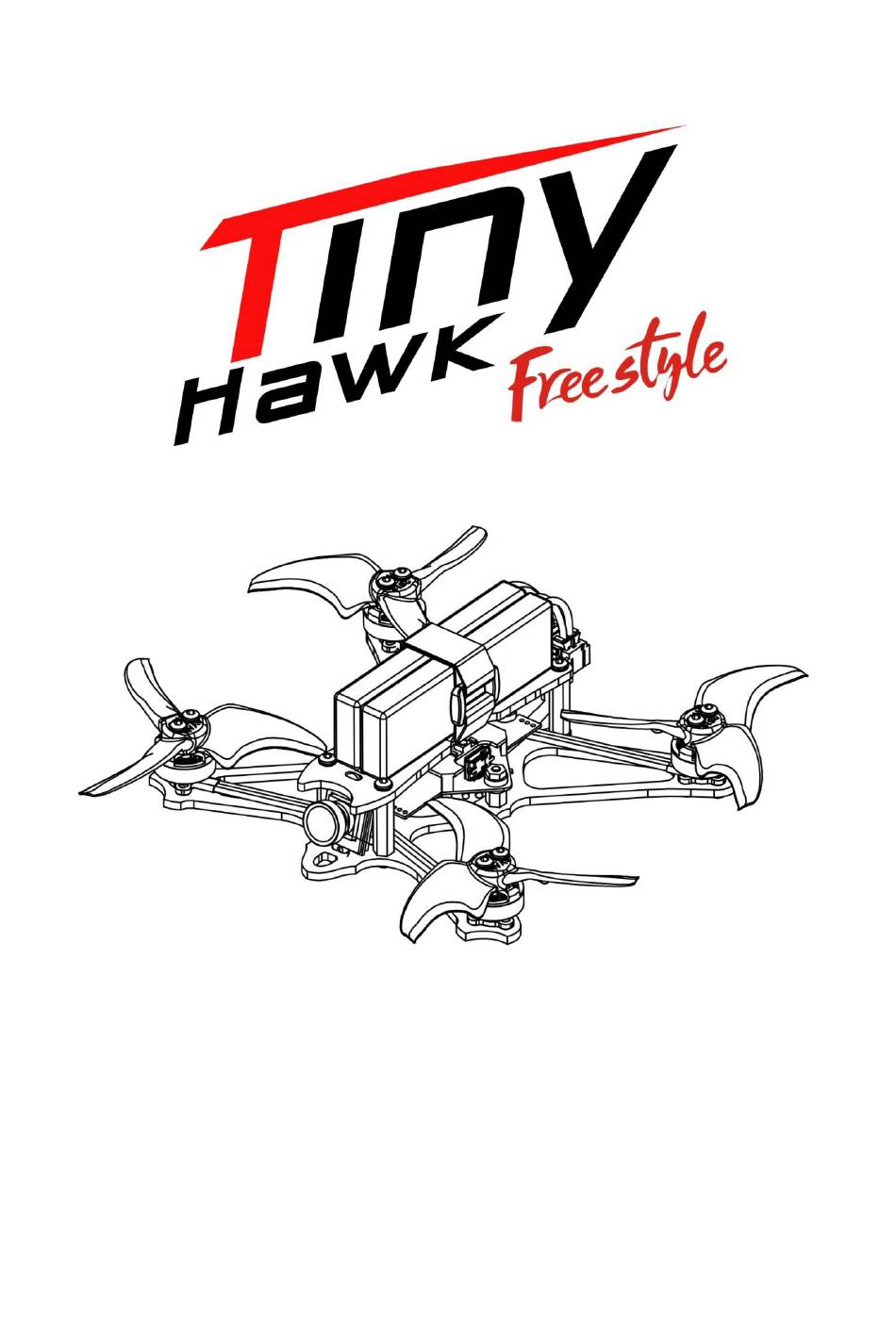

- Page 1 Thanks for purchasing the Tinyhawk Freestyle . Designed in California, assembled in China.
-
Page 2: Precautions
Please fly in a safe area away from people Do not modify or use other parts and accessories not approved for the use of EMAX. Do not use this product in harsh environments (such as winds, rain, lightning, snow, etc.). -
Page 3: Table Of Contents
Tinyhawk Freestyle All-in-One Flight Controller ............7 Emax On-Board Receiver ..................7 Binding Procedure ....................7 Emax Tinyhawk Freestyle Flight Controller (FC) ............ 7 Stock Flight Controller Settings ................7 Adjusting Software Settings (Betaflight Configurator) ......... 8 Reprogramming Tinyhawk Freestyle Flight Controller ........8 Set the Correct Settings .................. -
Page 4: Disclaimer
1 Cell 450 mAh HV lipo battery ×2 Product list 1. Tinyhawk Freestyle × 1 2. Instruction manual × 1 3. Emax 1s HV 450 mAh × 2 4. Charger × 1 5. Extra Propeller Set (2x CW, 2x CCW) 6. Screw pack x 1... -
Page 5: Tinyhawk Freestyle Structure
Tinyhawk Freestyle Tinyhawk Freestyle Structure emax-usa.com... -
Page 6: Tinyhawk Freestyle
Caution: Failure to mount the propellers in the correct orientation will cause Tinyhawk Freestyle to not fly correctly and with no control. Please double check for the correct orientation. 1. 1. Push the propeller down the motor 2. -
Page 7: Tinyhawk Freestyle Vtx Settings
Notice: If you change to an illegal channel using SmartAudio, there will be no image transmitting from Tinyhawk Freestyle. To switch back to a legal channel, press the button on the vtx and follow the vtx menu guide shown below. -
Page 8: Button Menu Diagram
HAM radio license or prior consent from the FCC.By purchasing this equipment, the user is agreeing that they understand these responsibilities and will operate the equipment legally. Emax cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. -
Page 9: Changing Vtx Setting Via Betaflight Osd
Tinyhawk Freestyle Changing VTX setting via Betaflight OSD Tinyhawk Freestyle is equipped with SmartAudio and is already configured with stock settings. The SmartAudio line is operated on UART 2 TX. 1. Power on Tinyhawk Freestyle, goggles, and Controller. 2. Follow the tips on screen to enter the main settings menu: THROTTLE MID+ YAW LEFT+ PITCH UP to enter OSD parameter adjustment menu. -
Page 10: Tinyhawk Freestyle All-In-One Flight Controller
3.Power cycle the flight controller and take your radio out of bind mode. Emax Tinyhawk Freestyle Flight Controller (FC) This flight controller has a F4 MCU with a MPU6000 gyro. Tinyhawk Freestyle flight controller comes pre-programmed and properly tuned for optimal flight. The flight controller is programmed with Betaflight 4.0.0. -
Page 11: Adjusting Software Settings (Betaflight Configurator)
Turtle mode is set when AUX 4 is in a high state. Please configure your radio as described above or change these settings in Betaflight Configurator. PID profiles: PID profile 1 is tuned and optimized for Tinyhawk Freestyle with the provided Emax 1s 450 mAh x2 battery for ultimate control. Adjusting Software Settings (Betaflight Configurator) Betaflight Configurator can be used to changed programmed settings on Tinyhawk Freestyle and to flash new firmware if desired. -
Page 12: Set The Correct Settings
Set the Correct Settings 1. Download the latest CLI Dump File from https://emax-usa.com/ 2. Connect Tinyhawk Freestyle to Betaflight configurator and select the CLI tab 3. Open the CLI Dump File in a text editor and copy all the text. -
Page 13: Flight
Always use caution when flying and operate in an open and controllable area. Please learn the flight controls first before powering on the aircraft to fly. Radio Stick Controls The left stick controls throttle and yaw direction of Tinyhawk Freestyle. The right stick controls pitch and roll of the aircraft. Left Stick Diagram Right Stick Diagram emax-usa.com... -
Page 14: Fly Tinyhawk Freestyle
The AUX 2 switch is set to change this mode on a 3 stage switch. When AUX 2 is in a high state, Tinyhawk Freestyle will be in angle mode where control sets the attitude of the aircraft. When the switch is in the middle state, Tinyhawk Freestyle will be in Horizon mode. - Page 15 Pay attention to these numbers during flight to know how much battery life is left. Tinyhawk Freestyle can fly for a maximum of 4 minutes. When the battery reaches 6.4v, land Tinyhawk Freestyle. Drawing the battery below 6.4v is not suggested and can damage the battery.
- Page 16 Tinyhawk Freestyle Thank you for purchasing our product! Enjoy Flying Tinyhawk Freestyle. Warning： Please pay attention to your surroundings. Not Recommended for persons under 18 years of age. emax-usa.com...
