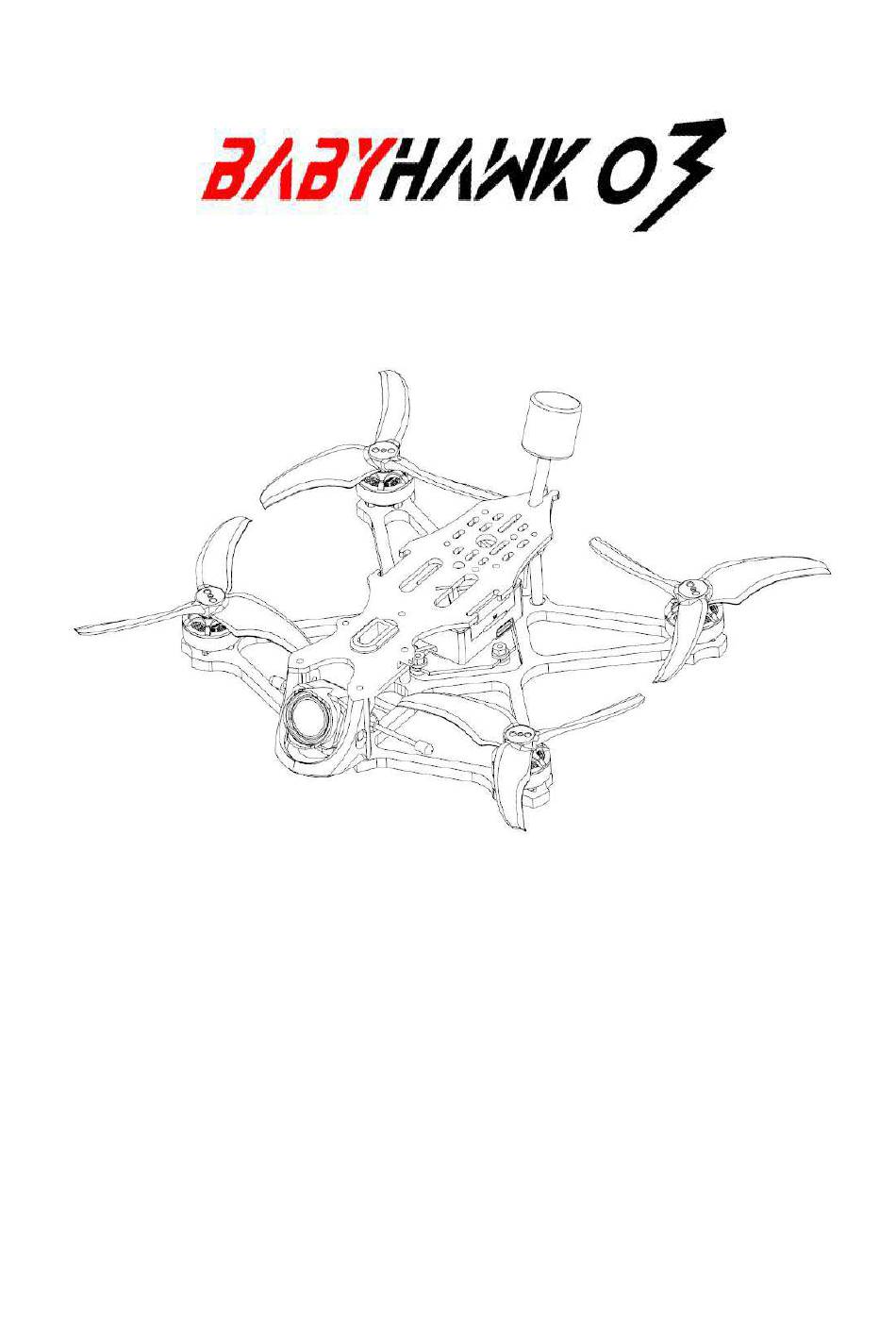

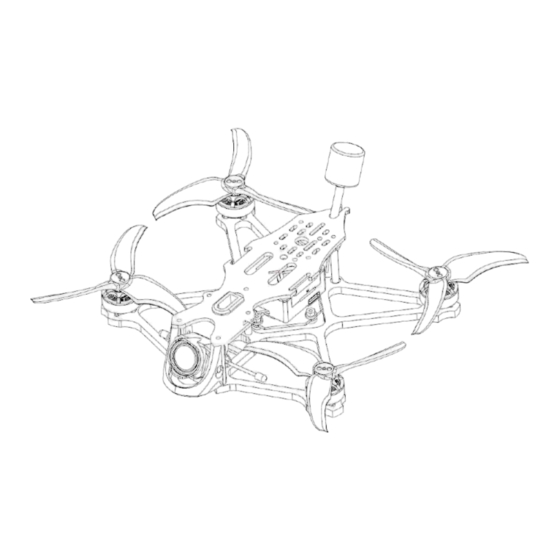

  • Page 1 Babyhawk O3 Design in California, Made in China...
  • Page 2 6. Our Babyhawk O3 is equipped with open-source flight controllers and electronic speed controllers to meet the upgrade needs of FPV enthusiasts. 7. EMAX bears no responsibility for any damage or harm, whether direct or indirect, caused by the use of this product.

  • Page 3: Table Of Contents

    3.2 EMAX ELRS_2.4G Receiver Pairing ...............5 4. EMAX Babyhawk O3 Flight Controller Setup...........6 4.1 Adjusting Software Settings (Betaflight Configurator)......6 4.2 Reprogramming the Babyhawk O3 Flight Controller ......6 4.3 Restoring Babyhawk O3 Default Settings............6 5.Flying..........................8 5.1 Babyhawk O3 Flight .....................8 5.2 Arming........................8...

  • Page 4: Product Specifications

    4-in-1 8-bit 25A ESC Receiver EMAX ELRS_2.4G_RX Receiver Camera O3 Air Unit (included in package) Video Transmitte O3 Air Unit (included in package) Product List Babyhawk O3................ x1 Propellers.................x3 CW & x3 CCW Screwdriver ................x1 Instruction Manual Website Card ........x1 emax-usa.com...

  • Page 5: Babyhawk O3 Structure Diagram

    Babyhawk O3 1. Diagram of Babyhawk O3 Structure 1.1 Propeller Orientation and Installation The Babyhawk O3 propellers have two rotation directions: Clockwise (CW) and Counterclockwise (CCW). When purchasing a set of propellers, please buy 2 CW and 2 CCW propellers.
  • Page 6 Babyhawk O3 Note: If the propeller orientation is incorrect, it will directly affect the Babyhawk O3's ability to fly and be controlled properly. Please carefully inspect and verify the propeller orientation. Regularly check the tightness of the screws to ensure they remain secure during flight.

  • Page 7: Babyhawk O3 Flight Controller

    Babyhawk O3 2.Babyhawk O3 FC 2.1 EMAX F411 AIO The diagram of the EMAX F411 AIO is as shown above. This circuit board includes: Flight Controller Section: 1. Processor: STM32F411CEU6 (100MHz), Firmware: EMAX_BABYHAWK_II_HD 2. Gyroscope: MPU6000 or BMI270 or ICM-42688-P (SPI Connection) 3.

  • Page 8: Emax Elrs_2.4G Receiver

    ISM Type, RF Frequency Range: 2400MHz to 2500MHz 3.2 EMAX ELRS_2.4G Receiver Binding The EMAX ELRS_2.4G receiver can be put into binding mode by power-cycling it three times. As EMAX has already connected the receiver with the flight controller, you can directly plug and unplug the battery three times in quick succession to enter binding mode.

  • Page 9: Emax Babyhawk O3 Flight Controller Setup

    4. Choose "Flash Firmware" to program the flight controller. 4.3 Restore Babyhawk O3 Default Settings from https://emax-usa.com/ Download the latest CLI Dump file, open it in a text editor, copy all the text, paste the settings into the command bar, and press Enter. Once completed, Babyhawk O3 will reconnect to Betaflight.
  • Page 10 Babyhawk O3 emax-usa.com...

  • Page 11: Flying

    Failure to do so may result in damage to the Babyhawk O3. 5.3 Line of Sight Flight Select an open area, connect the 4S battery to the Babyhawk O3, and arm it. Slowly increase throttle to maintain a constant altitude, and practice hovering and maintaining control of the Babyhawk O3.
  • Page 12 Babyhawk O3 Thank you for purchasing our product! Have a great time flying! Warning： Please be mindful of your surroundings. Not for use by individuals under 18 years old. Contains small parts; keep out of reach of children and be cautious of swallowing hazards.
