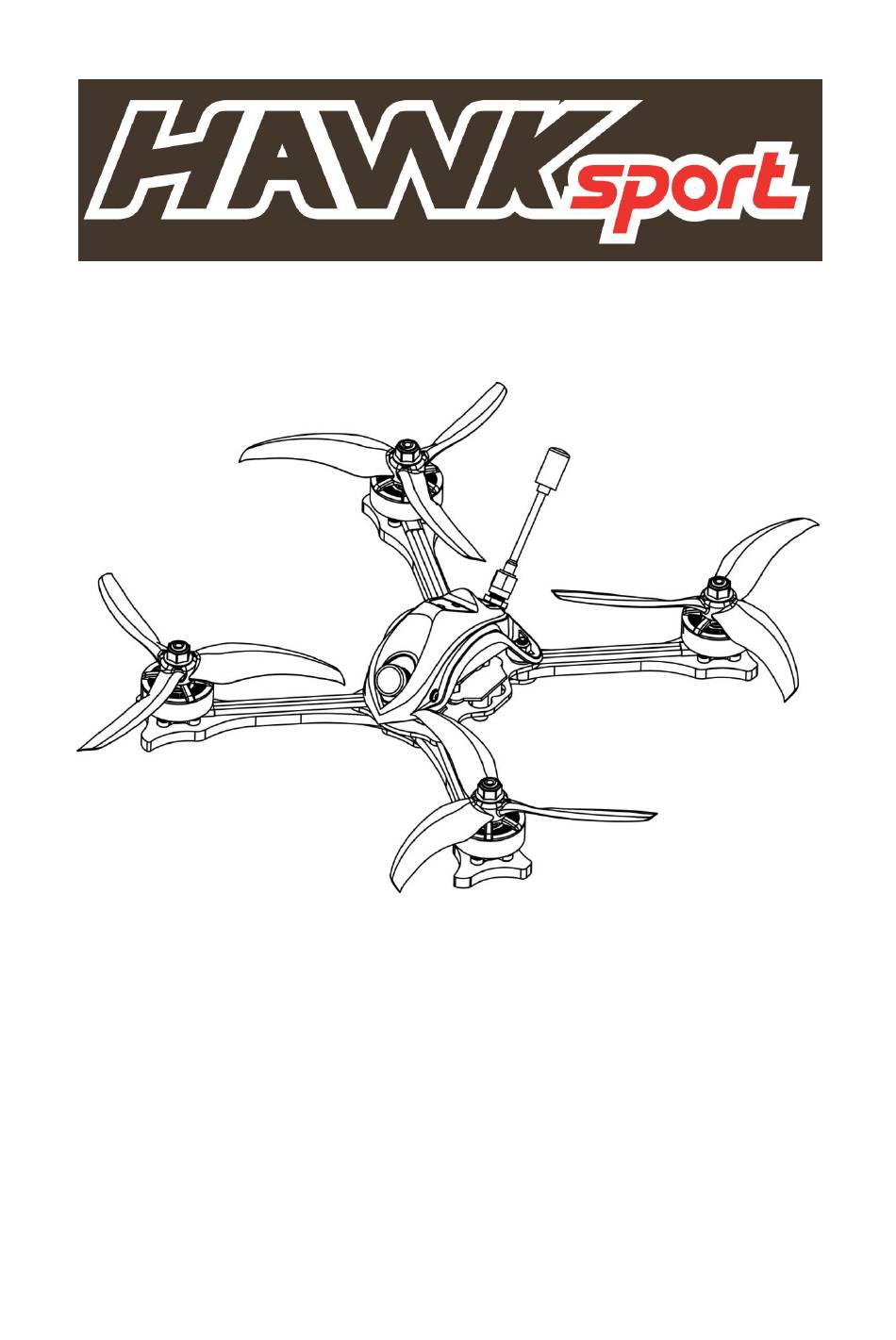

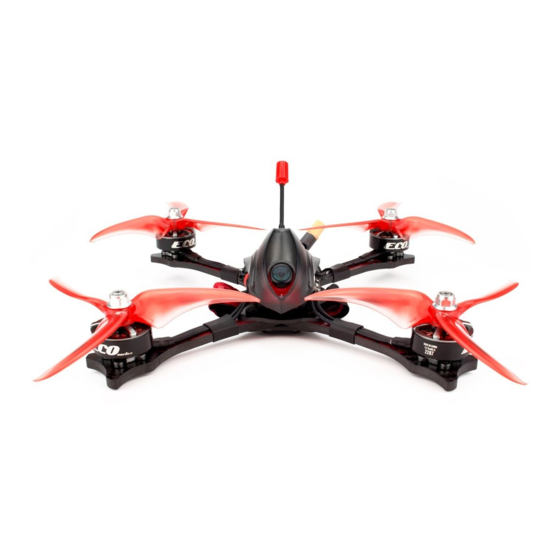

- Page 1 Hawk 5 Sport Thanks for purchasing the Hawk 5 Sport. Designed in California, assembled in China.
- Page 2 Please fly in a safe area away from people Do not modify or use other parts and accessories not approved for the use of EMAX. Do not use this product in harsh environments (such as winds, rain, lightning, snow, etc.).
-
Page 3: Table Of Contents
Hawk 5 Sport Electronic Stack .................. 6 Emax Tiny Receiver ....................6 Binding Procedure ....................6 Emax Hawk 5 Sport Flight Controller (FC) ............. 7 Stock Flight Controller Settings ................7 Adjusting Software Settings (Betaflight Configurator) ......... 7 Reprogramming Hawk 5 Sport Flight Controller ..........7 Set the Correct Settings .................. -
Page 4: Disclaimer
CADDX Turbo Micro F2 Transmitter 25-200mW Adjustable frequency 37CH Product list 1. Hawk 5 Sport × 1 2. Instruction manual × 1 3. AVAN 5*3.0*3(3x CW, 3x CCW) 4. AVAN5*2.8*3 (3x CW, 3x CCW) 5. Extra Hardware Set x 1... -
Page 5: Hawk 5 Sport
Hawk 5 Sport Propeller Direction and Mounting There are 2 spinning directions for Hawk 5 Sport propellers, Clockwise (CW) and Counter-Clockwise (CCW). When Buying a set of propellers, 2 CW and 2 CCW will be given. The blunt leading edge indicates the direction the propeller is suppose to rotate as compared to the sharp trailing edge. -
Page 6: Hawk 5 Sport Vtx Settings
Hawk 5 Sport VTX Settings Vtx Schematic and Button Diagram VTX Channel Settings with the Button 1. Normal display The display will cycle between showing band and channel. If the red dot is on in the lower right corner, that means the vtx is in high power mode (200 mW). Otherwise it is in low power mode (25 mW). -
Page 7: Ce And Fcc Unlicensed User Chart
Notice: If you change to an illegal channel using SmartAudio, there will be no image transmitting from Hawk 5 Sport. To switch back to a legal channel, press the button on the vtx and follow the vtx menu guide shown below. - Page 8 While pulling ROLL stick left and right to change the corresponding parameters.Once the parameters is set, moving the cursor to “SET”, then turn ROLL stick right to enter “SET” and choose “YES” and turn ROLL stick right to save setting parameters, as shown in Figure 5. Figure 6 emax-usa.com...
-
Page 9: Hawk 5 Sport Electronic Stack
Hawk 5 Sport Electronic Stack Flight Controller Emax Tiny Receiver Number of Channels: Up to 8CH using SBUS Compatibility: FrSky D8 mode Binding Procedure Binding is the process of uniquely associating a receiver to a transmitter module. A transmitter module can be bound to multiple receivers (not to be used simultaneously). -
Page 10: Emax Hawk 5 Sport Flight Controller (Fc)
AUX 1, AUX 2, AUX 3, and AUX 4. The arm switch on Hawk 5 Sport is set on AUX 1 and armed with the highest value. AUX 3 is configured for the beeper in a high state. -
Page 11: Set The Correct Settings
Set the Correct Settings 1. Download the latest CLI Dump File from https://emax-usa.com/ 2. Connect Hawk 5 Sport to Betaflight configurator and select the CLI tab 3. Open the CLI Dump File in a text editor and copy all the text. - Page 12 5. Hawk 5 Sport will reconnect to Betaflight when completed emax-usa.com...
