Triplex pump controller lite

The 'change month' screen, 'change date' screen and 'change day' screen are all adjusted as

above. After changing the 'DAY' screen, scroll to 'NEXT' and press 'ENTER' to select the 'Alarm

Horn' screen.

NOTE: DAYLIGHT SAVINGS CHANGES ARE NOT AUTOMATIC.

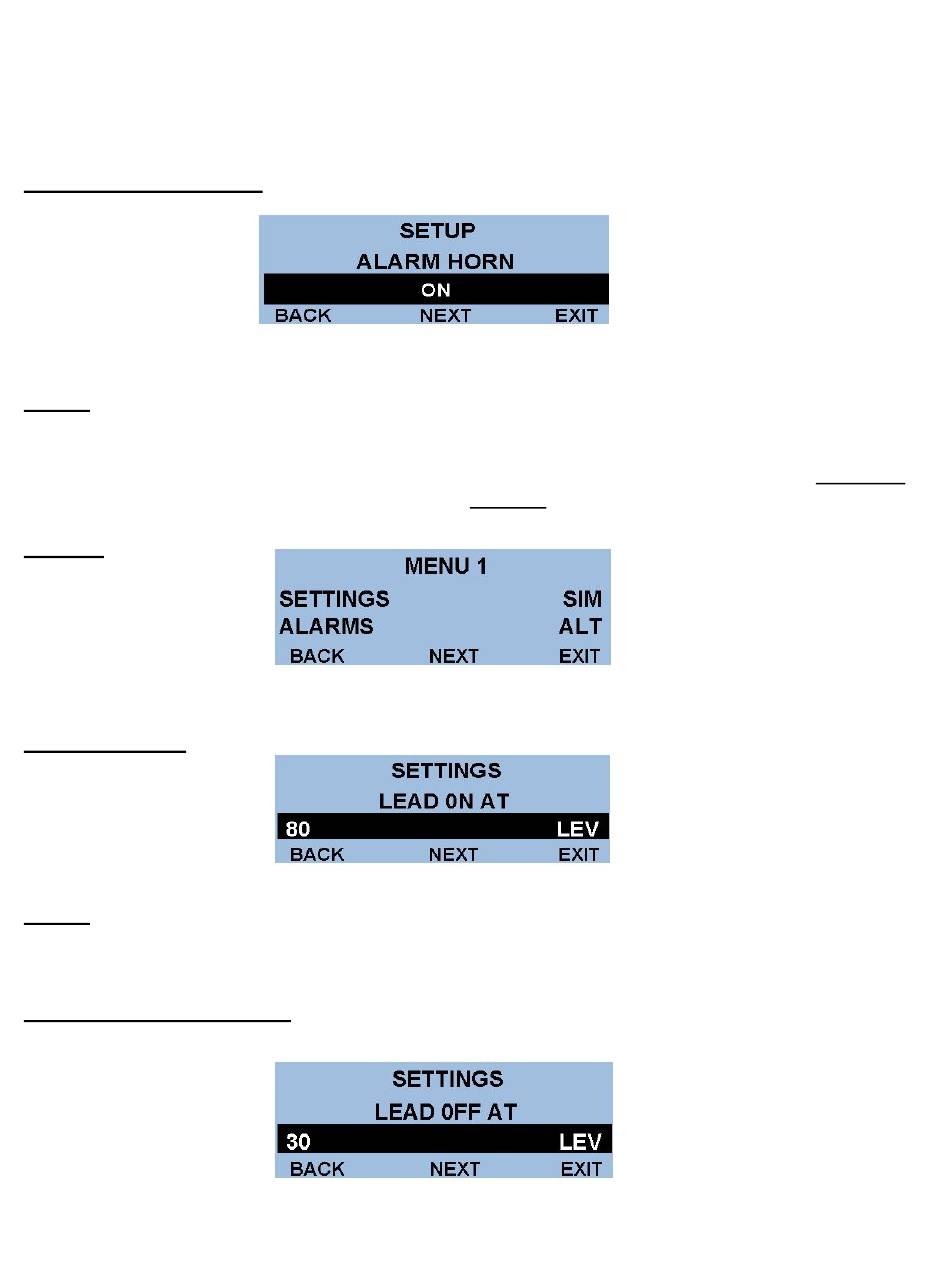

ALARM HORN SCREEN

NOTE: Selecting the alarm horn to 'OFF' will disable the internal piezo alarm from sounding

when an alarm condition occurs.

When the desired selection is made, scroll to 'NEXT' and press 'ENTER' to return to 'MENU 2'.

In Menu 2 select 'NEXT' and 'ENTER' to select Menu 1.

MENU 1

From Menu 1 select 'Settings' and press 'ENTER' to access the 'LEAD PUMP ON' setpoint.

LEAD PUMP ON

NOTE: This parameter determines at what level the 'lead' pump turns on. Using the   keys,

select a level point to turn on the lead pump. Scroll to 'NEXT' and press 'ENTER' to access the:

LEAD PUMP OFF SCREEN

Following the procedure above, select a level value at which the lead pump turns off. Use

'NEXT' with the exit button to access the:
