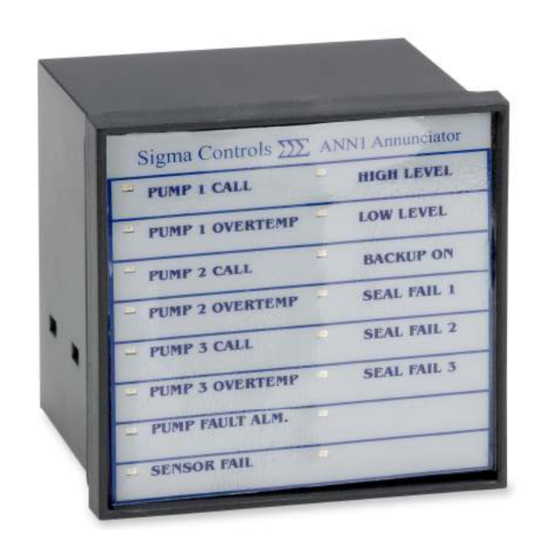

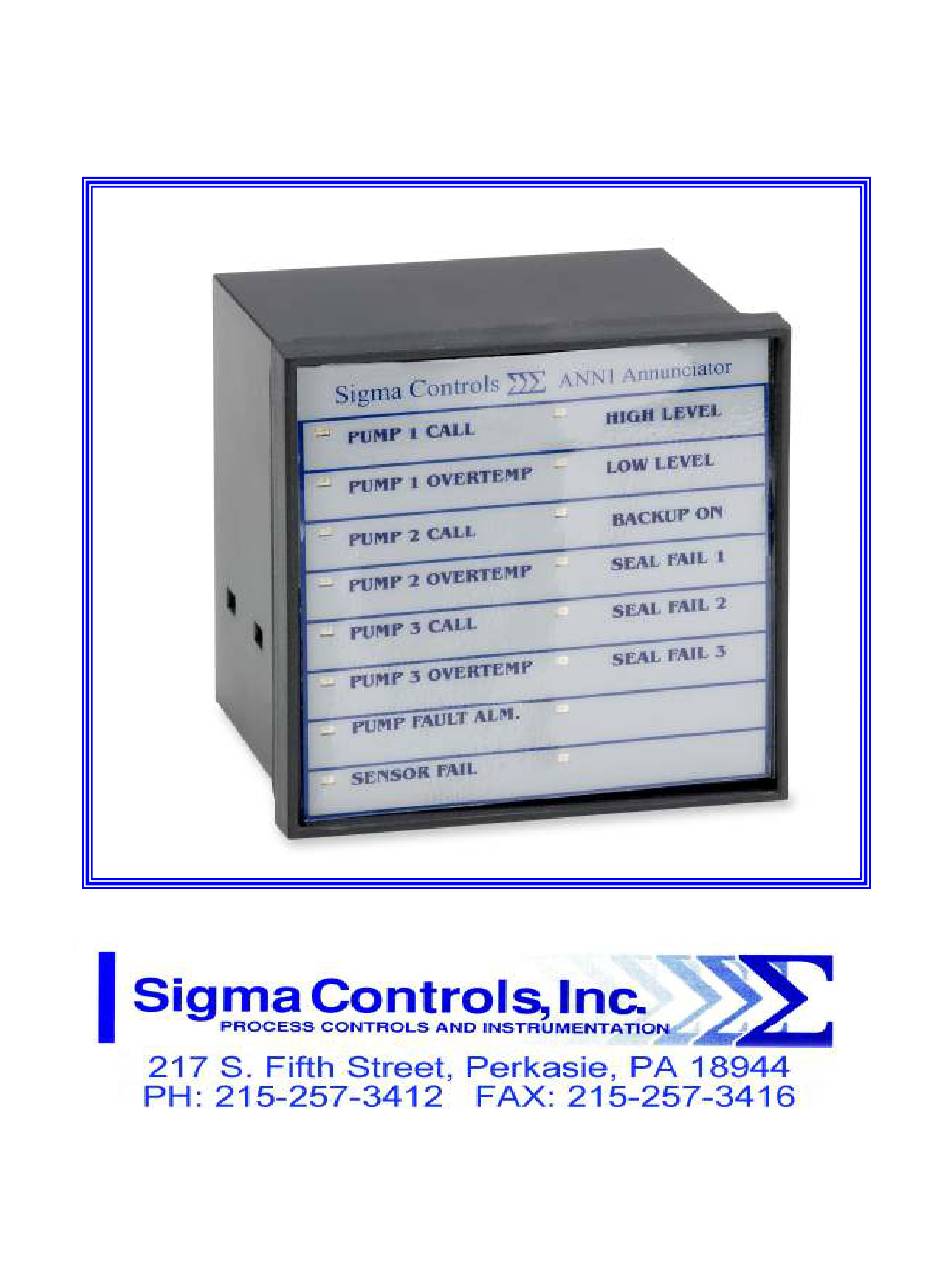

- Page 1 ANN1 DIGITAL ANNUNCIATOR INSTRUCTION MANUAL VISIT OUR WEBSITE SIGMACONTROLS.COM ANN1 MANUAL 070722...
- Page 2 TABLE OF CONTENTS INTRODUCTION Ordering Information Specifications Features WIRING Dwg # 05-79...
- Page 3 INTRODUCTION: The Sigma Myriad ANN1 is a solid state 8 or 16 channel alarm annunciator ‘light box’. Utilizing 12-24 VDC sinking or sourcing inputs, the super bright LED’s differentiate and indicate any active channel. Red LED indicators provide clear indication without the potential for ‘burned-out’ bulbs common with more traditional annunciators.
- Page 4 • Front Panel Gasketed Nema 4X • Access Chassis and Circuit Board Remove from front of case (DIN style only) • Connections Removable screw compression terminals, 16 –14-16 AWG FEATURES • Solid State Design – No moving parts • Simple ‘light box’ function – No internal logic •...
