Sigma Controls Myriad TPC LITE Instruction Manual page 10

Use the   buttons to highlight 'SCALE' and press 'ENTER'.

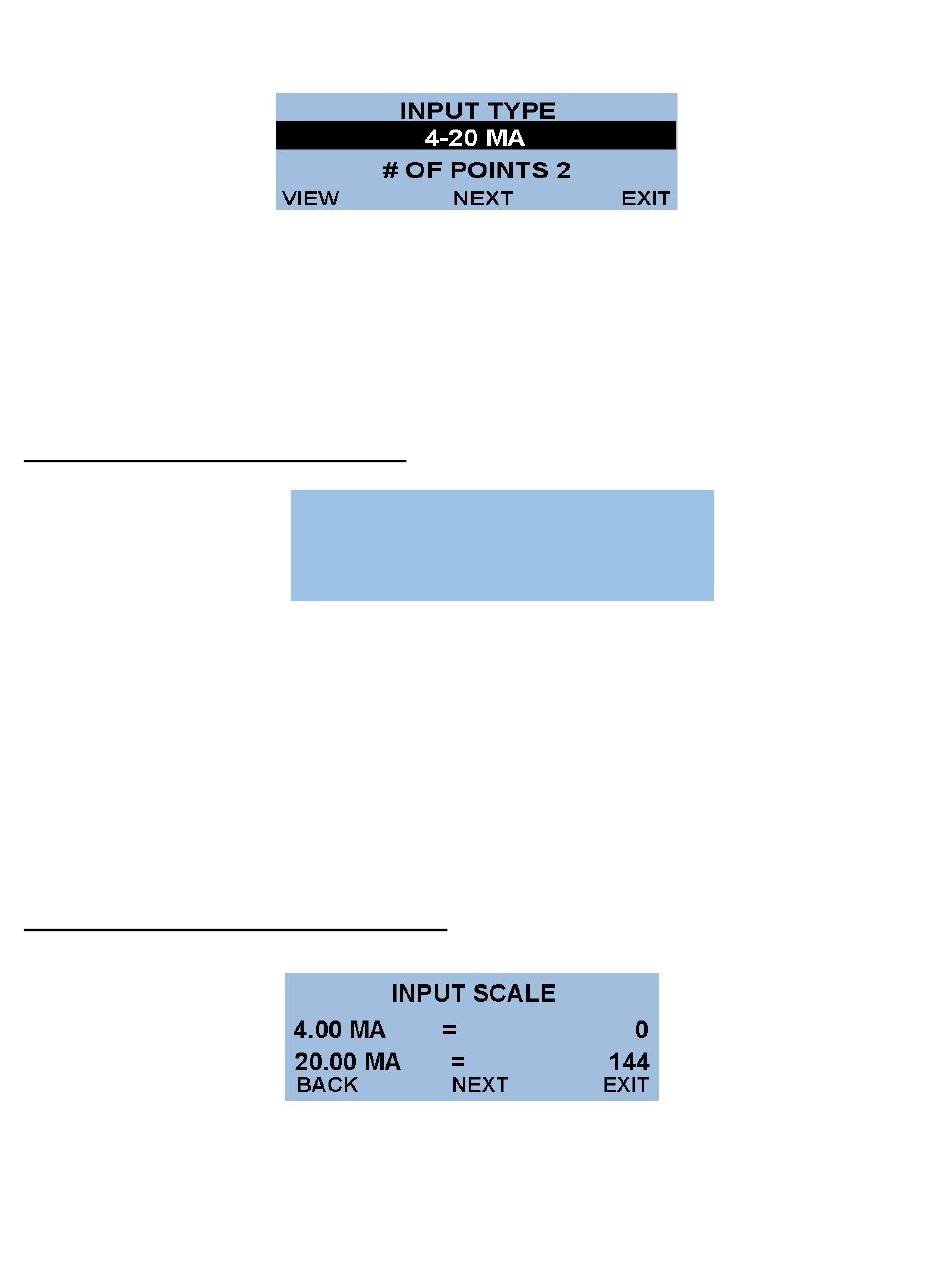

This first screen shows what type of Analog is being used. NOTE: INPUT TYPE MUST BE
COORDINATED WITH INPUT SELECTOR SWITCH LOCATED ON THE BOTTOM OF THE
CIRCUIT BOARD (See Appendix 'A')
The 'TPC LITE' does not include linearization of the input signal. The display is linear over the 2
points selected.
DECIMAL POINT SELECTOR SCREEN
The cursor will be positioned over the decimal count window, use the Up/Down   arrow
buttons to raise or lower the unit number to the left of the decimal point. (The example shown in
this window will change with your selection.)
 
Use the buttons to move the cursor to the number behind the decimal point and the
Up/Down   buttons to change this selection. Once again the example will change to confirm
your selection.
Use the   buttons to highlight the 'NEXT' selection and press 'ENTER' to access the Input
Scale Screen.
INPUT SCALING TO ENGINEERING UNITS
NOTE: This screen sets what the Myriad TPC LITE displays in the main display for the selected
input. The example shown above will display 0.0 units when the input is 4.00 MA. Both the input
and the display at that input can be changed for different requirements.
DECIMAL POINT
ex. +++.+
VIEW NEXT
3.0
EXIT
10
