Summary of Contents for Jaypro Sports PS-84

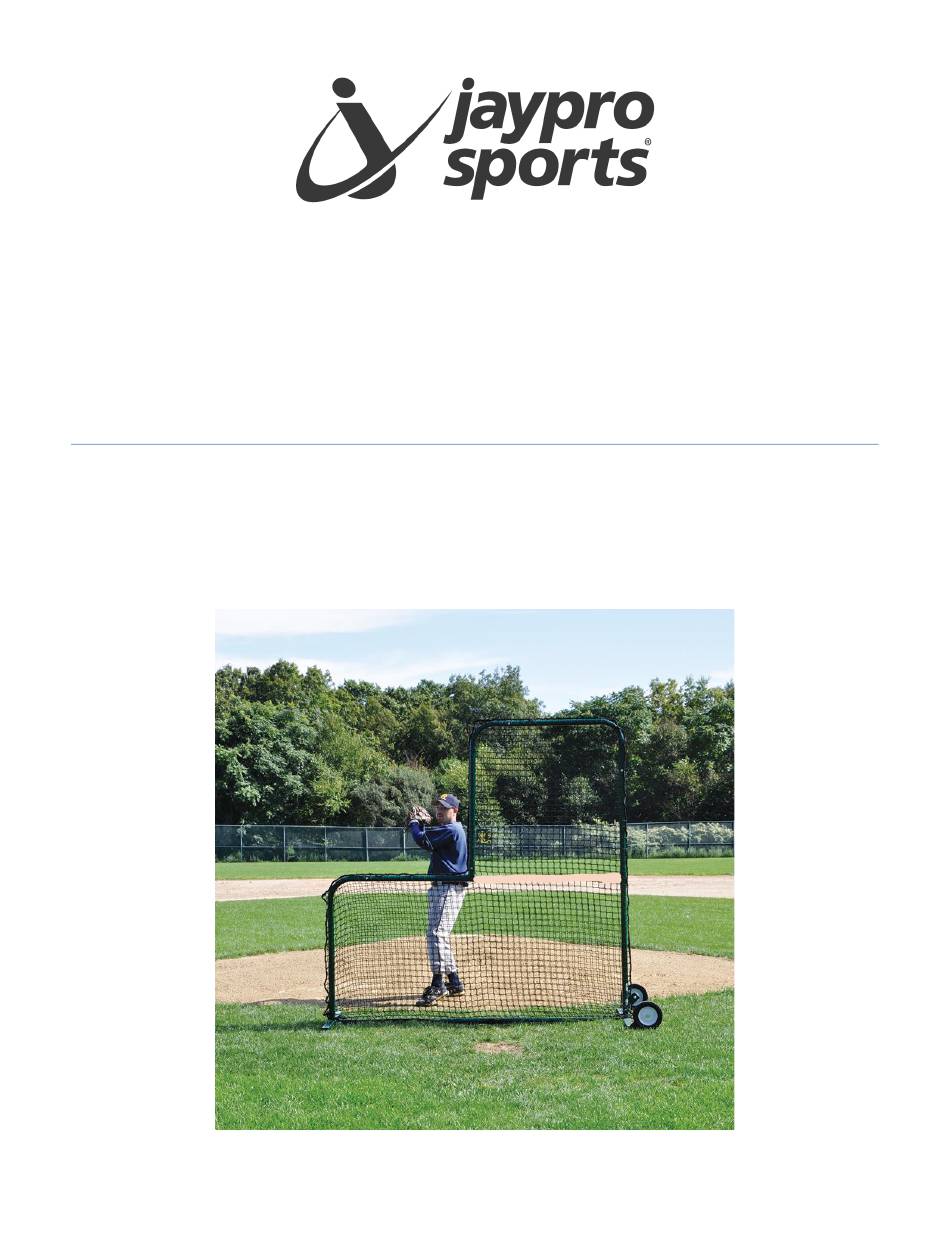

- Page 1 Model PS-84 7’ x 7’ Collegiate Pitcher’s Screen Shown with optional wheel kit BBWK-2 www.Jaypro.com...
-
Page 2: Equipment And Materials
INTRODUCTION These instructions outline the assembly and use of the Pitcher’s Screen Model PS-84. If you need additional information or support in the assembly and use of the Pitcher’s Screen you can reach the Jaypro Sports customer support team, Monday through Friday, 8:00 AM to 5:00 PM Eastern time at 800-243- 0533. -
Page 3: Parts Identification
PARTS IDENTIFICATION ASSEMBLY Lay out frame pipes as shown in Figure 1 and assemble together by using fasteners shown in the TYPICAL PIPE CONNECTION. Loctite may be used on these screws to ensure assembly. 2. Once the frame is completely assembled, fully tighten all fasteners. 3. - Page 4 Figure 1 Model PS-84 Included Components and Hardware...
- Page 5 Figure 2 Optional Wheel Kit BBWK-2 (Sold Separately) Put wheels onto wheel bracket. Do not over tighten, wheels should turn freely. Wheel bracket fits into wheel base and is secured with one self-tapping screw for each side. See wheel orientation below:...
