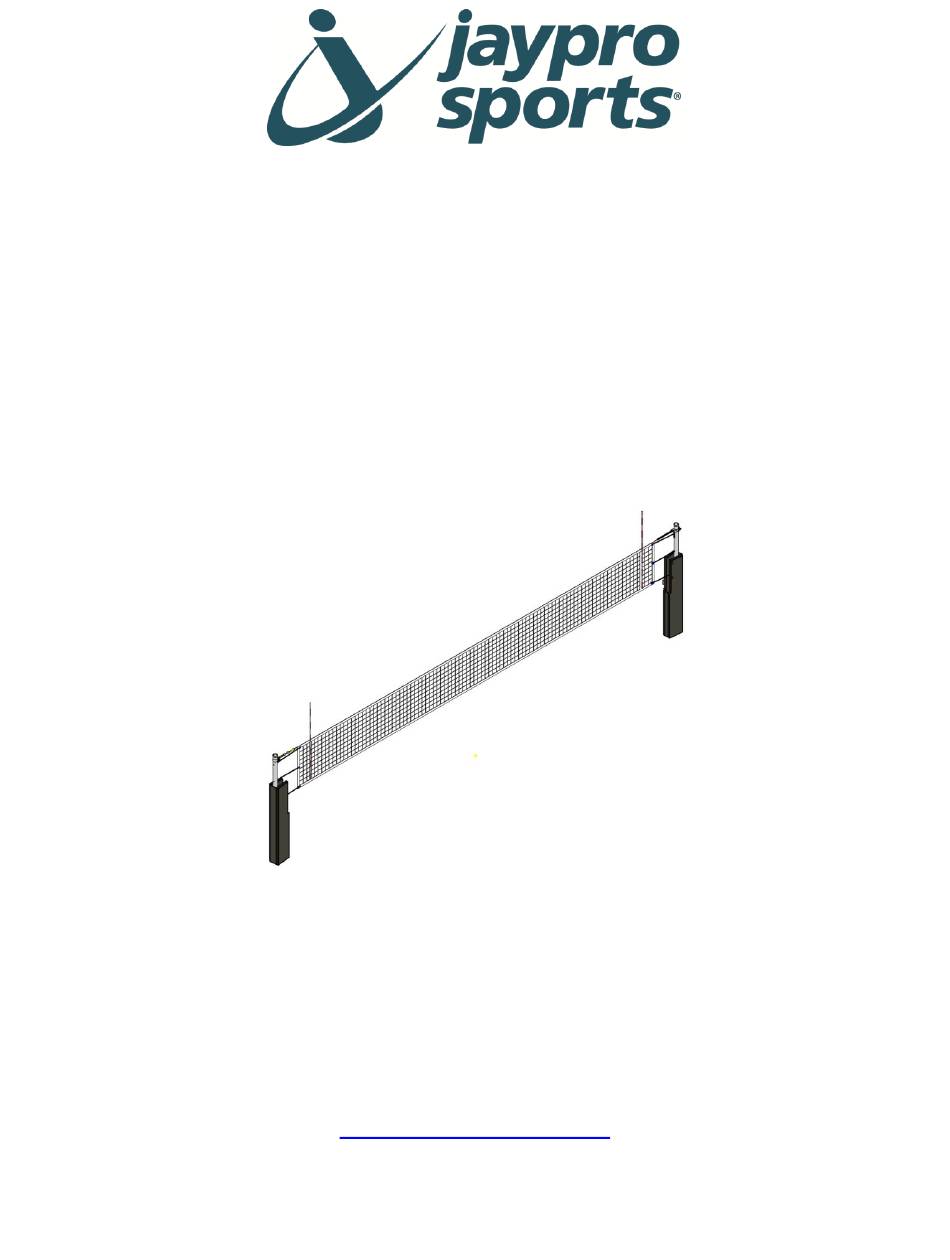

- Page 1 -- PVB-1300 -- Installation Instructions Call Jaypro Sports Equipment at 1-800-243-0533 during regular business hours for technical support. www.jaypro.com Page 1 of 6...
- Page 2 PVB-1300 PARTS LIST (QTY: SINGLE UNIT) ITEM IMAGE DESCRIPTION VOLLEYBALL NET P/N: PVBN-5 VOLLEYBALL UPRIGHT PADS P/N: PVB-60P VOLLEYBALL ANTENNA P/N: VBA-80 ANCHOR END CLAMP COLLAR P/N: PVB-13-7 TOP ROLLER CLAMP COLLAR P/N: PVB-13-8 BOTTOM SLIDING COLLAR P/N: PVB-13-9 3 1/2” OD UPRIGHT...
- Page 3 These instructions assume that the appropriate ground sleeves have been correctly installed: • The PVB-1300 will fit most 3’’ inner diameter ground sleeves. • The inside bottom surface of the ground sleeves must be at least 8” below floor level.
- Page 4 Assembly Instructions: 1. Place the uprights onto a table or pair of saw horses and loosely assemble the parts as shown. 2. One upright will be designated the Winch End Upright and the other the Anchor End Upright. 3. Assemble the winch onto one of the uprights as shown. 4.
- Page 5 This loop would go around The volleyball pole. Or in S-Hook of a sliding collar On a PVB-1300 or PVB-1250 Volleyball net this side. This cleat comes pre-assembled on PVBN-5 nets Maximum 1/4” rope NET CAM CLEAT (ITEM #1) ATTACH BOTTOM CORD TO COLLARS...
- Page 6 Assembly Instructions: 13. Attach the loop on one end of the bottom cord to the S-hook on one of the bottom sliding collars. Thread the other end through the Clam Cleat fitting, as shown. Pull the free end of the cord to draw the bottom cord taunt. Next, tie off the six (6) side cords around the uprights, making sure the net is approximately centered within the playing area.
