6.1

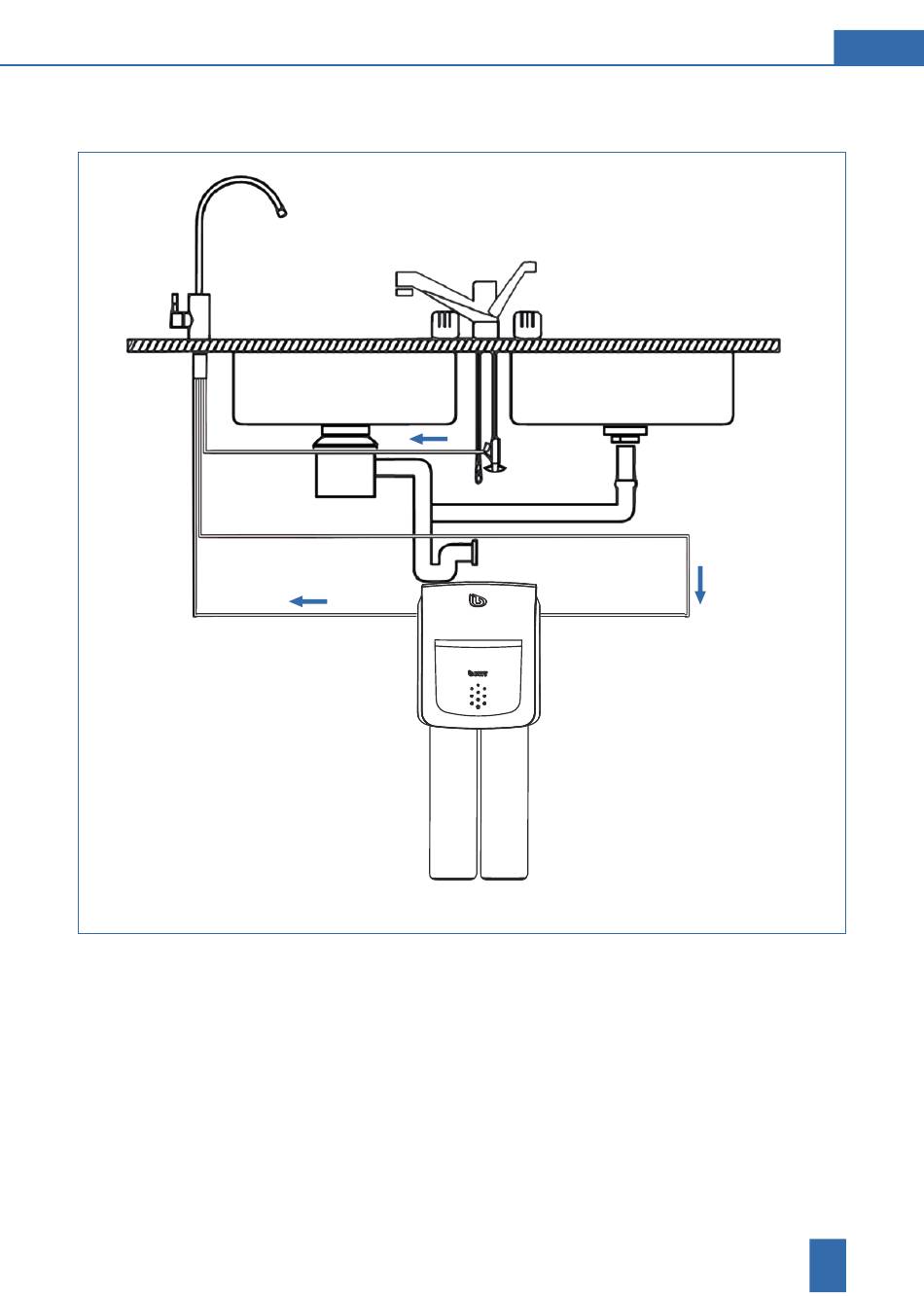

Installation diagram
The illustration serves as an example. The individual installation must be adapted to local conditions.
6.2
Installation
►Install the lines on the product according to the
installation diagram (see chapter "6.1 Installation
diagram", page 11.
Be careful not to kink or squeeze the lines.
1
3
OUT
►Then hang the product upright on the wall. Use
the keyhole hanger on the back of the product
to do so.
Allow sufficient space for the replacement of
filter cartridges.
►Open the water supply to the system.
►Check the installation for leaks.
2
IN
EN
11
