EN

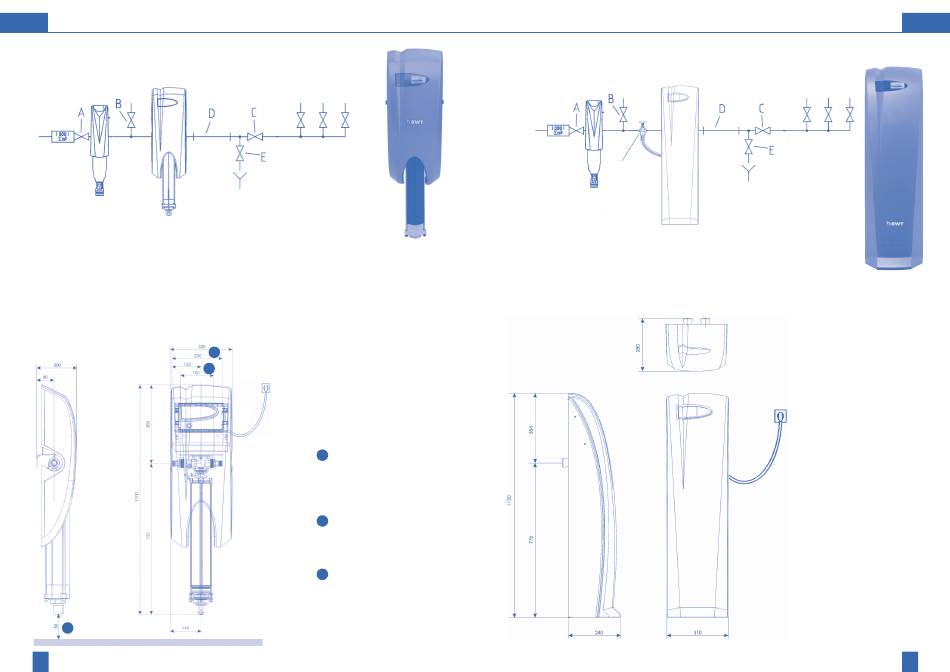

4.3. Installation diagrams

a.) Installation diagram AQA total 1500

A Water counter shut-off valve
B Outlet valve to garden
C Unit shut-off valve
D Test section
E Rinsing valve
The test section is an easily removable, new pipe section, which should have a pipe length/pipe diameter of
approximately 6:1. It must be fitted immediately downstream of the AQA total system.
3
24
2
1
1
Installation length without
glands (5/4" locking nut, 5/4"
external thread)
2
Installation length with glands
(both sides 1" external thread)
3
Necessary space for removal
of working unit
4.3. Installation diagrams
b.) Installation diagram AQA total 2500
optional Multiblock
A Water counter shut-off valve
B Outlet valve to garden
C Unit shut-off valve
D Test section
E Rinsing valve
The test section is an easily removable, new pipe section, which should have a pipe length/pipe diameter of
approximately 6:1. It must be fitted immediately downstream of the AQA total system.
EN
25
