- Page 1 Installation and operating manual EN BWT Pure SLIM Water Filter System Pure SLIM 2/3/4 Subject to change without notice.
-
Page 2: Publication Details
Thank you very much for the confidence that you have shown in us by purchasing a BWT device. This manual applies only to the product(s) specified on the title page. Publication details BWT Holding GmbH BWT Wassertechnik GmbH Walter-Simmer-Strasse 4... -
Page 3: Table Of Contents
Maintenance ....15 Operator responsibilities ..15 Warranty ... . . 15 10.1 Your contact at BWT ..15... -
Page 4: Safety Instructions
● Use only accessories, spare parts and consum- A qualified specialist is someone who can assess able materials that have been approved by BWT. the work assigned to him or her, identify potential ● Adhere to the environmental and operating con- risks, and take suitable safety measures thanks ditions specified in the “Technical data”... -
Page 5: Symbols Used
Symbols used Display of warnings The following symbols in this documentation In this document, warnings precede any sequence indicate specific sources of danger or important of actions that could cause harm to persons or information: damage to property. All hazard prevention measures must be followed. -
Page 6: Product-Specific Warning Notes
Product-specific warning notes NOTE ► If the device is not used for more than two days, close the water supply to the system to avoid leaks due to excess pressure or pressure surges. In the following chapters, you will find product-spe- cific warning notes whenever you must perform safety-relevant actions on the product. -
Page 7: Scope Of Delivery

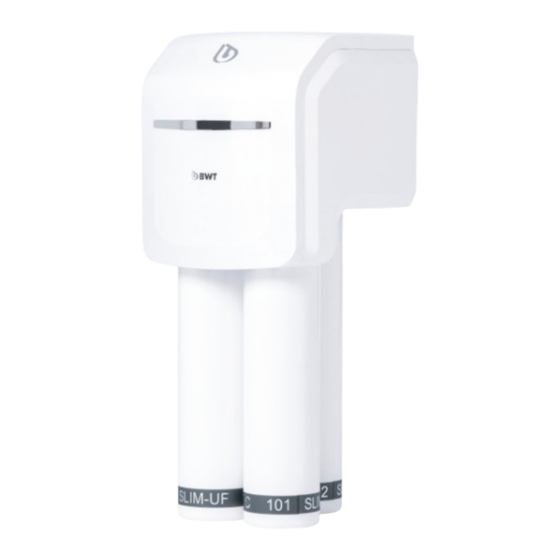

Scope of delivery ● BWT Pure SLIM water filter system Product overview BWT Pure SLIM water filter system: Housing Filter cartridges Filter inflow connection ( Filtered water connection (... -
Page 8: Intended Use
Proper use The product is used to remove substances that are considered to be unwanted when using drinking The BWT Pure SLIM product is used to filter impu- water. rities, microorganisms, odours and traces of heavy The filter functions depend on the model selected metals from drinking water. -
Page 9: Installation Conditions
Installation conditions Functional and warranty conditions The product requires regular functional monitoring General and maintenance. See this installation and operating manual for the maintenance intervals. The product must be installed as described in the installation guide by a water supply company or by The period of use indicated on the filter cartridges a party registered in the water supply company’s is considered a recommendation and depends on... -
Page 10: Installation
Installation The following requirements must be met: ● All local installation regulations, general guide- lines, hygiene measures, specifications and instructions in the documentation provided with the product must be followed. ● The product must not be installed with a water supply that is not designated as drinking water. -
Page 11: Installation Diagram
Installation diagram The illustration serves as an example. The individual installation must be adapted to local conditions. Installation ►Then hang the product upright on the wall. Use the keyhole hanger on the back of the product ►Install the lines on the product according to the to do so. -
Page 12: Start-Up
Use only genuine filter cartridges from the product manufacturer. To order or replace filter cartridges, please contact the BWT Service Centre or your contractual partner, the installation company, in good time. The period of use indicated on the filter cartridges depends on the type of cartridge;... -
Page 13: Position Of The Filter Cartridges
Identifying the Name of the filter cartridge according filter cartridge to the type plate 6-318102 BWT 005 SLIM-S 6-318101 BWT 101 SLIM-C 6-318103 BWT 103 SLIM-Mg 6-318104 BWT 104 SLIM-UF Product: Produkt:... -
Page 14: Replacing The Filter Cartridge
8.1.2 Replacing the filter cartridge ►Insert the new filter cartridge and turn it anticlock- wise (figures 3 and 4). Pay attention to hygiene when ►Open the water supply to the system again. inserting the new filter cartridges. ►After replacing the filter cartridges, open the tap for the filtered water and allow the water to run for 5 minutes to activate the filter cartridges and remove air and carbon particles. -
Page 15: Usage Period For Filter Cartridges
The maintenance work must be carried out by the BWT after-sales service staff or an installer author- Service acceptance +49 (0) 6203 7373 ised by BWT every six months. We recommend that Monday to Thursday: 06:30 to 18:00 you enter into a maintenance agreement with your fitter or our after-sales service department. -
Page 16: Technical Data
Technical data 12.1 Technical data for the BWT Pure SLIM: water filter system Water filter system Type BWT Pure SLIM 2 UF Push-in connection (input, output) Inches ¼" Static pressure, max. Operating pressure, min. – max. 1.5 – 3.0 Water temperature, min. – max. -
Page 17: Technical Data For The Bwt Pure Slim: Filter Cartridges
To find the production number, see the label on the front page of these instructions and the type plate on the side wall of the product. 12.2 Technical data for the BWT Pure SLIM: filter cartridges Filter cartridge Type BWT 101... -
Page 18: Dimensions
12.3 Dimensions Designation BWT Pure SLIM 2 UF BWT Pure SLIM 3 BWT Pure SLIM 4 Height of product Width of product Depth of product 12.4 Type plate NOTE ► The type plate is a record and must never be altered or removed. Damaged or illegible type plates must be replaced. -
Page 19: Checklist For Commissioning And Operator Instruction
12.5 Checklist for commissioning and operator instruction To be checked Comment The product has been installed according to the instruc- tions. All connections are correct and installed according to the direction of flow. The product has been tested for leaks. The entire installation has been checked for leaks. -
Page 20: Further Information
Further information: BWT Holding GmbH BWT Wassertechnik GmbH Walter-Simmer-Strasse 4 Industriestrasse 7 5310 Mondsee, Austria 69198 Schriesheim, Germany Phone: +43 (0) 6232 5011 0 Phone: +49 (0) 6203 73 0 E-mail: office@bwt.at E-mail: bwt@bwt.de bwt.com...
